Brilliant, true-to-life UHD content across multiple connected LED displays without expensive equipment is what a business needs in today’s working environment. The Samsung’s LED Signage Box (S-Box) stands out in a crowd with LED HDR (High Dynamic Range) picture technology, elevating peak brightness and establishing frame-by-frame gradation. The S-Box also supports content up to 8K with HDR quality with Multi-link HDR technology. The S-Box not only has impressive visual quality but is more energy efficient than the previous model. The S-Box instinctively controls the LED brightness and the quality of the lighting by a dimming sensor. With a Live Mode option, when attending an event where livestreaming is occurring, the S-Box improves signal delays and latency. The S-Box also leverages MagicINFO to develop, schedule and manage content within a single platform equipping businesses with a comprehensive management tool for more convenient and impactful oversight of their entire LED display network.
Highlights
- Transmit UHD content across multiple LED displays from a single, all-in-one source
- Showcase stunning content through LED HDR (High Dynamic Range) technology
- Support HDR-level content up to 8K with Multi-link HDR technology (JMU only)
- Deliver vibrant illustrations while being energy efficient
- Deliver live content with lower latency through optional Live Mode
- Manage content and overall display performance within the MagicINFO platform
Compability
IF
IF-D
IFR
IER
The wall
General
- Model
- SBB-SNOWJMU/EN
- Utök. text för namn
- LED Indoor UHD S Box
- Application
- LED Controller
Image specification
- Resolution
- 3840x2160

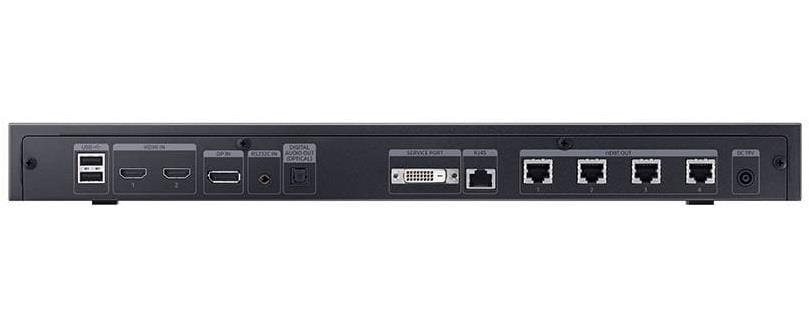

Connections
- Video in
- DisplayPort 1.2a
- Video in
- HDMI x2 (HDMI 2.0)
- Video out
- DVI-D, HDBaseT (RJ-45)
- Audio outputs
- Optical Digital
Functions
- Control
- Ethernet/IP (RJ-45), IR cable connection
Measurements and weight
- Width
- 440 mm
- Depth
- 46 mm
- Height
- 271.8 mm
- Net weight
- 2.8 kg
Various
- Mounting
- 19" Rack, 1U, Freestanding/Shelf
- Warranty
- 3 years
Packaging info
- Packaging size
- 337 x 614 x 140 mm
- Packaging weight
- 6.50 kg
