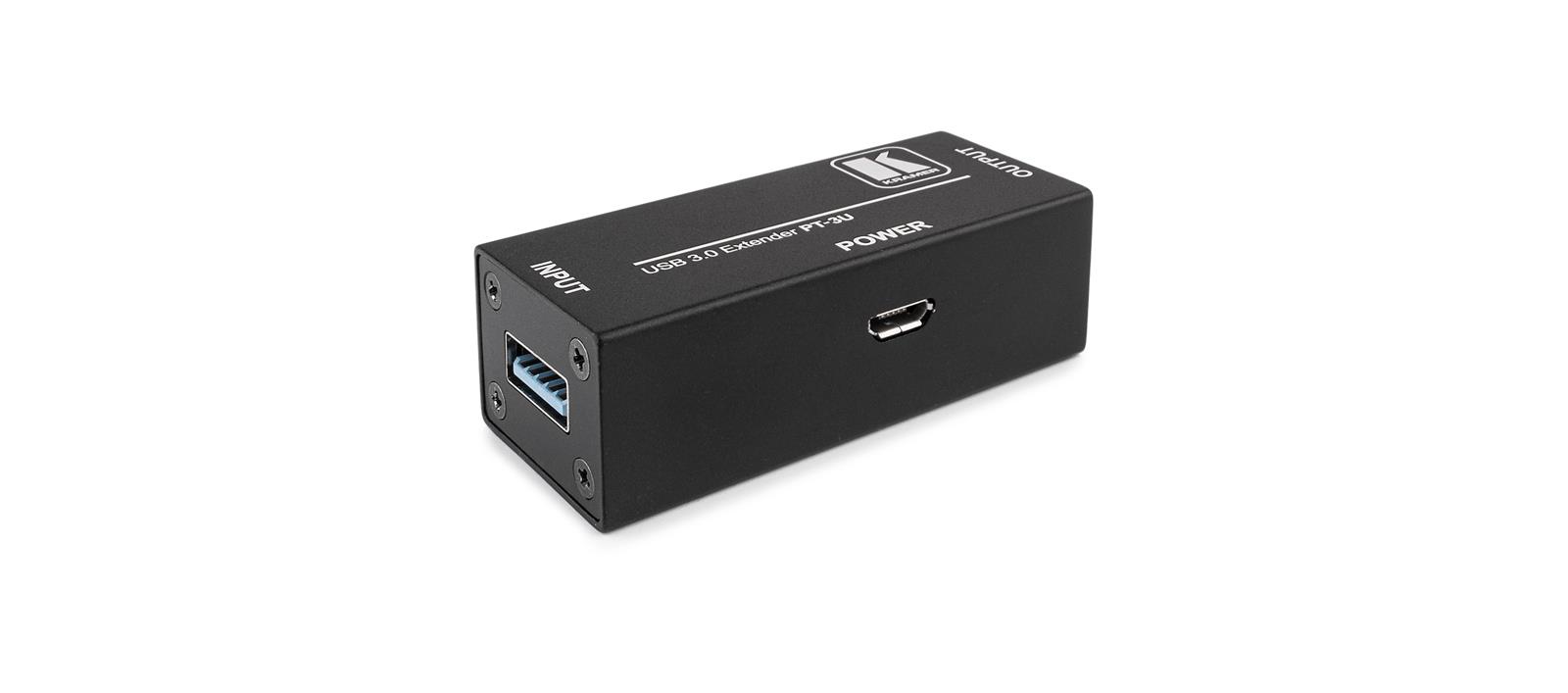

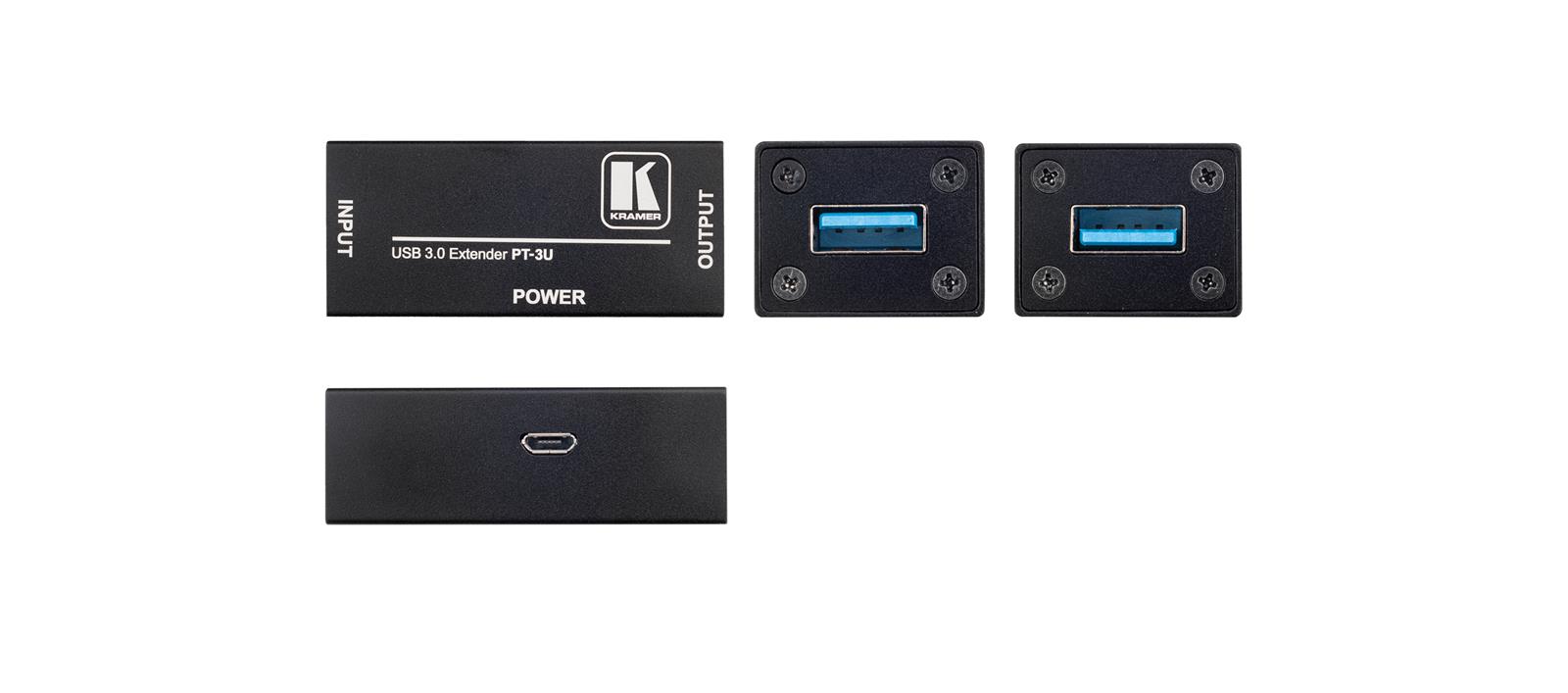

PT−3U is an innovative active USB 3.0 extender that extends the USB cable distance between the host and the device by reclocking and equalizing the USB signal. Placing PT−3U in the transmission path, removes dropout and digital noise (sparkles) in your installation that may result from using long USB cables.
- True Plug & Play — No additional driver program is needed.
- USB 3.0 Super Speed (5Gbps) Standard — Compliant with USB 3.0.
- Backwards Compatible — USB 2.0, 1.1
- Optional external power supply.
- Buffers incoming & outgoing signal.
- Certifications — CE, FCC, REACH, ROHS.
General
- Extender type
- Repeater
- Range (max)
- 4.85 m 3m to PT–3U, 1.85m to Device (at USB 3.0, 5 Gbps)
Features
- USB standard
- 1.1, 2.0, 3.0
- USB/Data connection from
- USB-A
- USB/Data connection to
- USB-A
Energy
- Power Supply
- USB powered, or via optional power supply
Measurements and weight
- Width
- 26 mm
- Height
- 20 mm
Additional information
- Application
- Freestanding/Shelf
- Warranty
- 7 years
Packaging info
- Packaging size
- 157 x 120 x 87 mm
- Packaging weight
- 68 g
