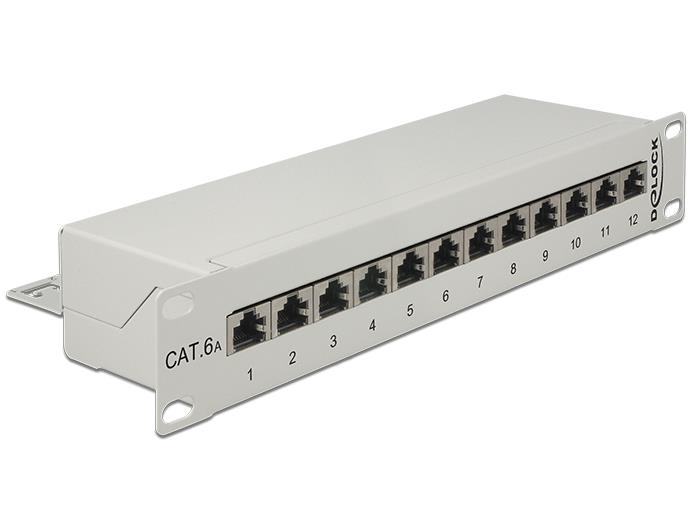

DeLOCK - 43308 Patch Panel for 10" cabinets with 12xCat6a ports, punch down tool, 1U, grey

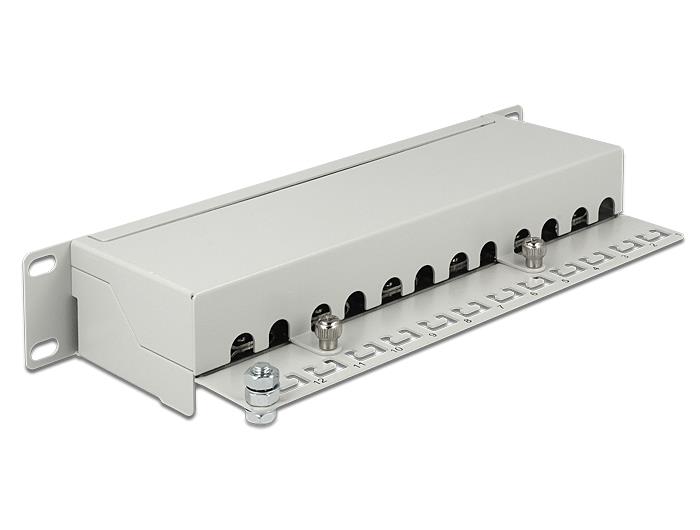

This Patch Panel by Delock can be mounted in a 10" rack. At the LSA blocks you can install up to 12 network cables with a punch down tool.
• Connectors:
external: 12 x RJ45 jack
internal: LSA block
• For mounting in 10″ racks, 1U
• Cable routing 180°
• Shielded
• Compliant with Cat.6A requirements of ISO/IEC 11801 Edition 2.2,
EN 50173-1:2011 and EN 60603-7-51, Cat.6A of ANSI/TIA 568-C.2
• TIA-568A/B pinout
• Cable diameter up to 0.644 mm (22 - 26 AWG)
• For solid or stranded wire
• Metal housing
• Colour: light grey RAL 7035
Dimensions(WxDxH): 254x109x44mm
General
- Material
- Metal
- Color
- Grey
Dimensions and weight
- Rack units
- 1U
- Width
- 254 mm
- Depth
- 109 mm
- Height
- 44 mm
Additional information
- Warranty
- 2 years
