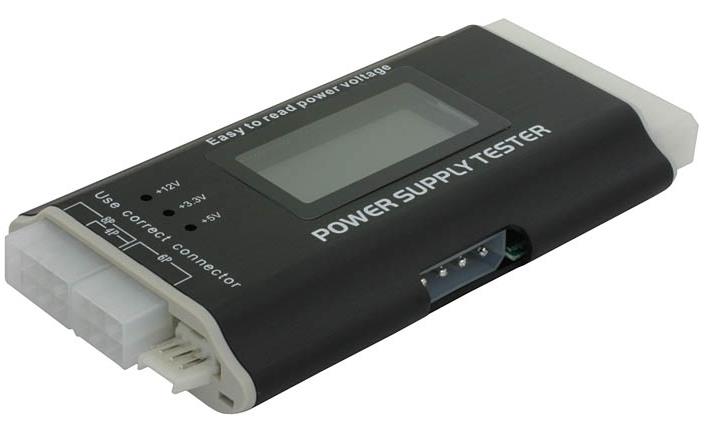

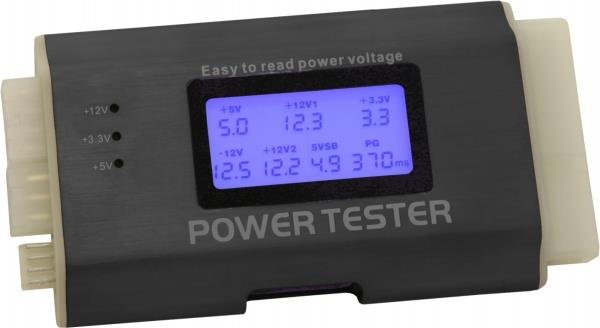

The Delock Power supply tester is a robust voltage tester for PC-power supply. ATX, BTX and ITX compliant power supplies can be tested. The device shows on one display all supply voltage with one decimal place. Errors will be announced by a warn signal. The PC/SPS is suitable for the ambitious hobby user, as well as for a quick functional check in specialized trade.

Specification

  • Voltage source: 20/24 pol. (ATX-connector)

  • Voltage test: +12V, -12V,+5V, -5V, +3, -3V
    5V Stand By (SB)
    12V Power Good (PG)

  • Connectors: Floppy, HDD, CDROM, SATA, 4.pin. (P4), 8.pin. (Dual-CPU), 6.pin (PCI-Express)

Notice: Do not connect the power supply to your computer while testing!



Packaging info

Packaging size
220 x 101 x 22 mm
Packaging weight
129 g
