SC-Series 1080p Surveillance Monitor

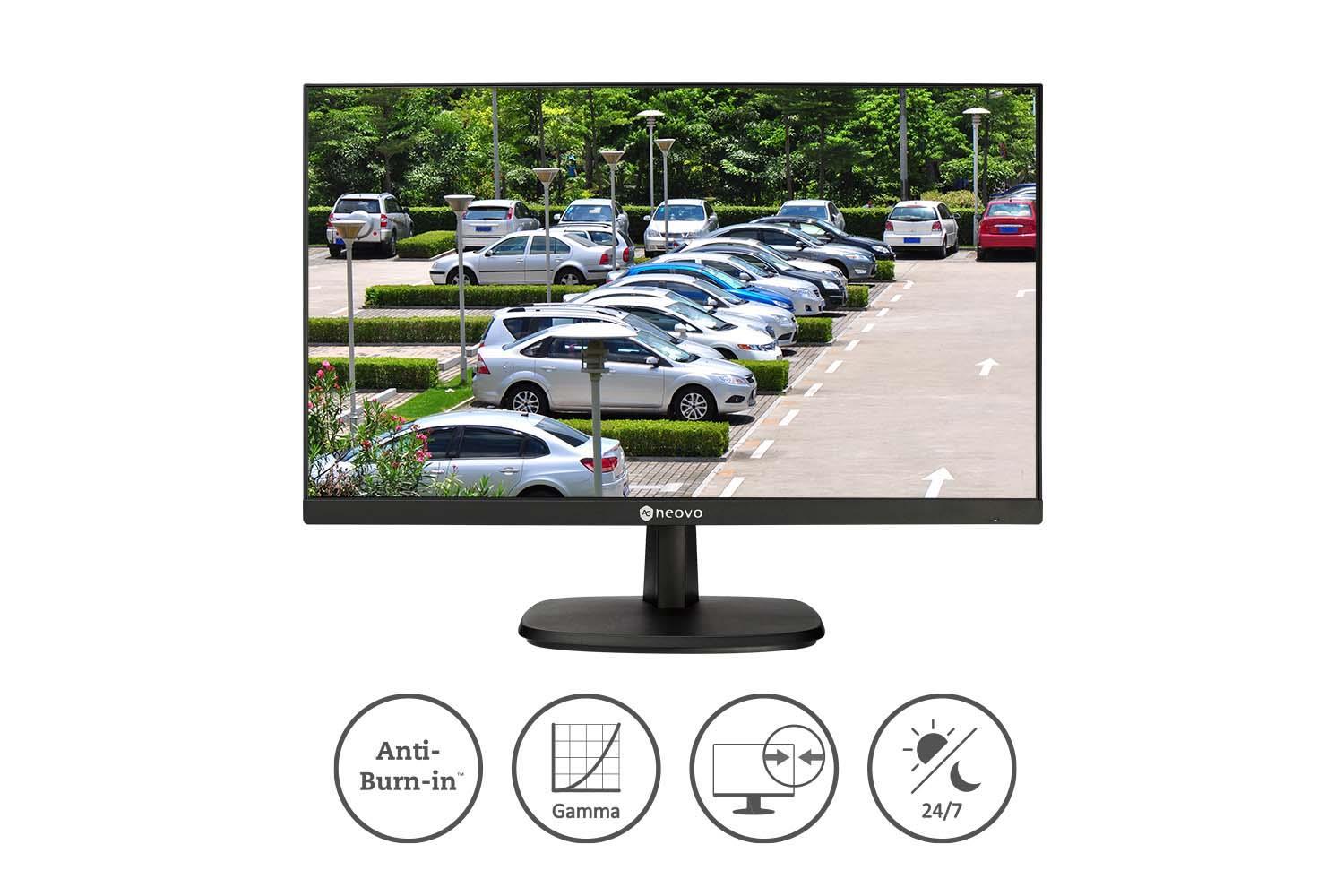

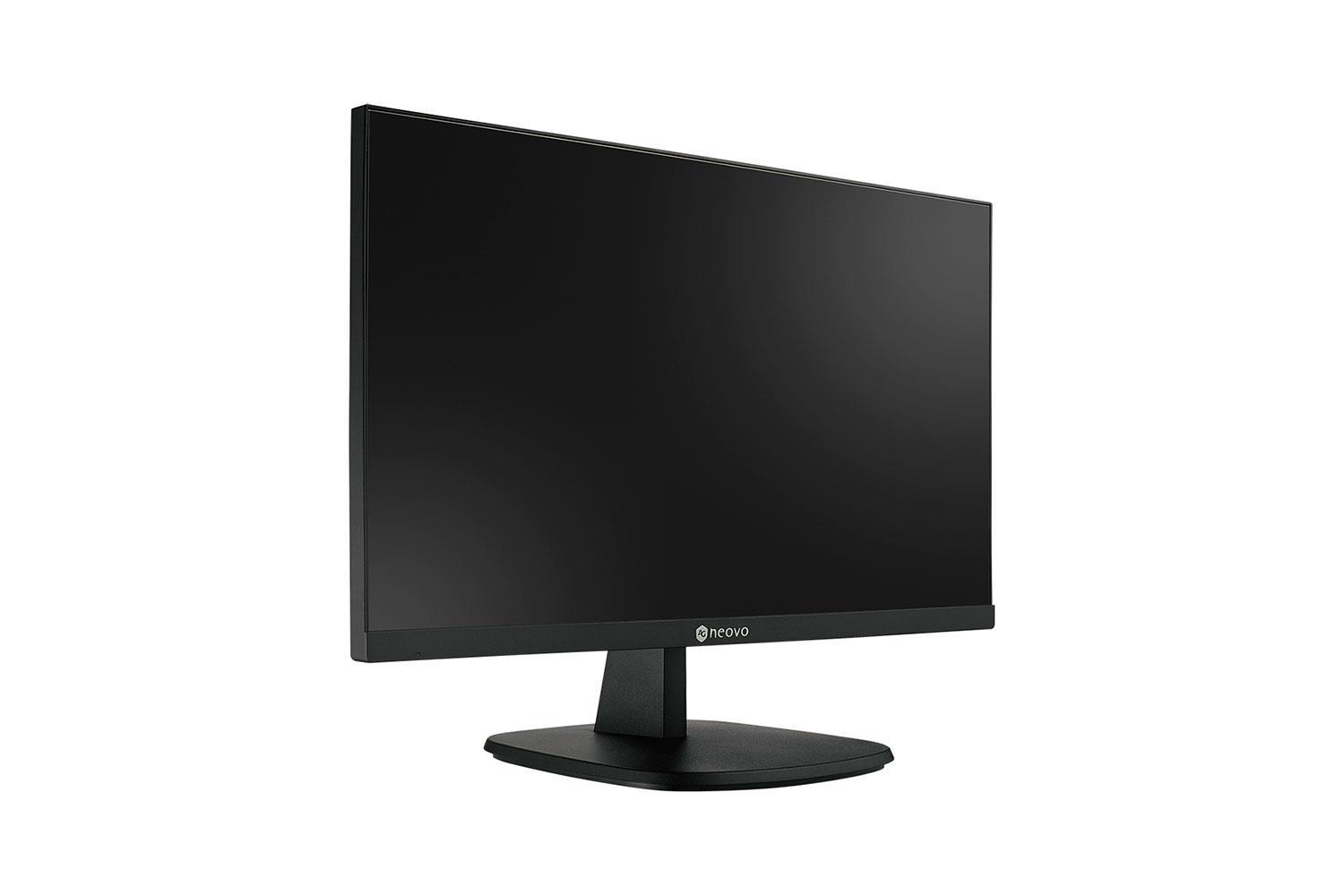

The SC-2402 is a 24-inch 3-sided bezel less security monitor specifically designed for surveillance operators - especially those with a 24/7 operating multi-screen setup who are looking for efficient video monitoring. The SC-2402 provides value-added video enhancement controls that help create detailed images for low-light footage. Its optional monitor mounting solutions support single or multiple monitor setups. In terms of cost-to-performance, this model is the solution for productivity in modern operator workstations.

3-Sided Bezel Less Monitor Increase Productivity
It’s typical for surveillance operators to require multi-monitor setups to maximize productivity. The SC-2402 adopts a seamless 3-sided bezel-less design to create an ideal work environment and reduce gaps between monitors. Perform rapid analysis, manage, and control video sources from all locations. Evolving situations require quick decisions, which seamless monitors can help with.

Multiple Monitor Setups Made Easy
With VESA 100 x 100mm, the SC-2402 is compatible with AG Neovo’s mounting portfolio of desk and wall mounts. Whether you’re looking for a dual, quad, or more monitor set-up, AG Neovo is a one-stop-shop for creating ergonomic workstations in a control room.

Better Cost Performance Ratio
Designed with long-hour monitoring in mind, you can expect a reduction in system maintenance efforts and consequentially verty good cost performance. The SC-2402 is commercial grade and meant to work 24/7, 365 days a year. Static images that would otherwise cause screen burn-in are gone with AG Neovo’s patented Anti-Burn-in technology. Expect prolonged life for LCD screens.

Perfect Match to CCTV Images
There is a special pre-configured CCTV Mode that maximises image clarity in low-light footage. Quickly fine-tune your video footage with adjustments for sharpness, saturation, contrast, brightness, and more. Don’t waste time testing and re-adjusting constantly, this product already has it all figured out!

Enhanced Gamma Selection
Offering an enhanced gamma selection makes for amazing visual optimization. Improve the light, shadow, and colour balance quality of your videos with ease.

Missing Details in Dark Scenes is a Thing of the Past
More detail from black-level adjustment means improved visibility of dark images.

Contrast Enhancer
By coming with a contrast enhancer, the surveillance monitor enables low-contrast images to become more clear and defined.

Adaptable to Surveillance Environment Needs
Tailor the display to your needs with on/off toggles for the blue screen. When there is no signal available, a blue screen will show that is ideally designed for dark and low-light environments.

Versatile Connectivity with BNC and HDMI Inputs
The SC-2402 supports both analog and digital video inputs. Easily connect to various video surveillance equipment with HDMI, VGA and BNC in/out ports. BNC port allows connecting CCTV cameras directly to the monitor. With this bezel less security monitor, there is no need for a DVR/converter to get straight to instant monitoring.



Display

Screen size
23.8 "
Resolution
1920x1080
Aspect ratio
16:9
Refresh rate
75 Hz
Response Time
5 ms
Curved
No

Connections

HDMI
Yes 1x 1.4
DisplayPort
No
USB type-C
No
VGA
Yes 15-Pin D-Sub x 1
DVI
No
BNC
Yes

Ergonomics

VESA Compatibility
100x100
Height Adjustment
No
Pivot
No
Tilt
Yes -5° to 20°

Dimensions and weight

Width
540.1 mm (with Base)
Depth
226.5 mm (with Base)
Height
408.3 mm (with Base)
Weight incl. stand
3.4 kg

Additional Information

Warranty
3 years

Packaging info

Packaging size
606 x 480 x 108 mm
Packaging weight
4.80 kg
