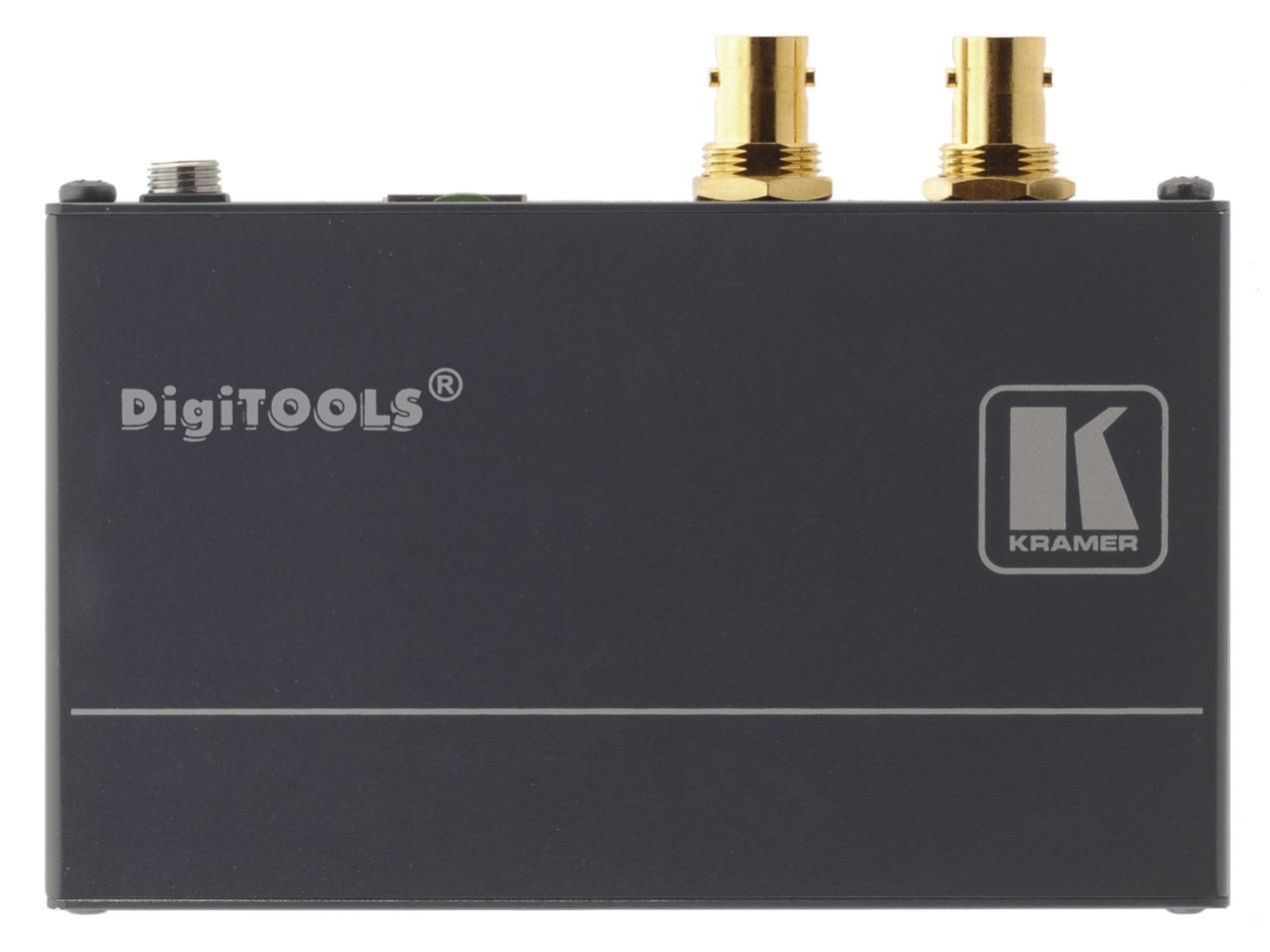

The FC−331 is a high−performance format converter for video signals up to 3G HD−SDI (Level A). It converts the input video format (with embedded audio) to an HDMI output signal.
- Multi–Standard Operation — SDI (SMPTE 259M and SMPTE 344M), HD–SDI (SMPTE 292M) and 3G HD–SDI (SMPTE 424M).
- SDI Level A Support.
- Looping Input with Reclocking.
- HDTV Compatible.
- Audio Group De–embedded Selection.

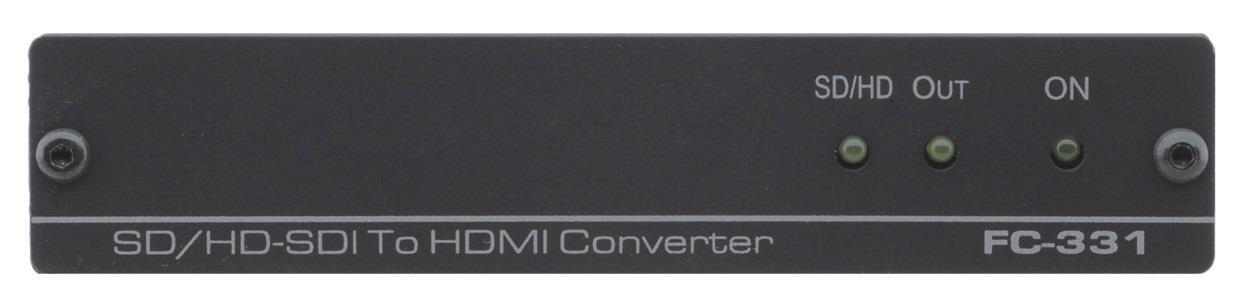

- Active Input & Output LED Indicators.
General
- Model
- FC-331 | 3G HD-SDI to HDMI
- Application
- Converter
Connections
- Video inputs
- 1
- Video outputs
- 1 Mirrored outputs
- Video in
- 3G-SDI
- Video out
- 3G-SDI Mirrored output
- Video out
- HDMI
Functions
- Scaler
- No
- USB passthrough
- No
Energy
- Power Supply
- 5V DC, 400mA External Power Supply
Measurements and weight
- Width
- 232 mm
- Depth
- 120 mm
- Height
- 89 mm
- Net weight
- 0.5 kg
Various
- Mounting
- Freestanding/Shelf
- Included Accessories
- Power supply
- Warranty
- 7 years
Packaging info
- Packaging size
- 231 x 83 x 116 mm
- Packaging weight
- 642 g
