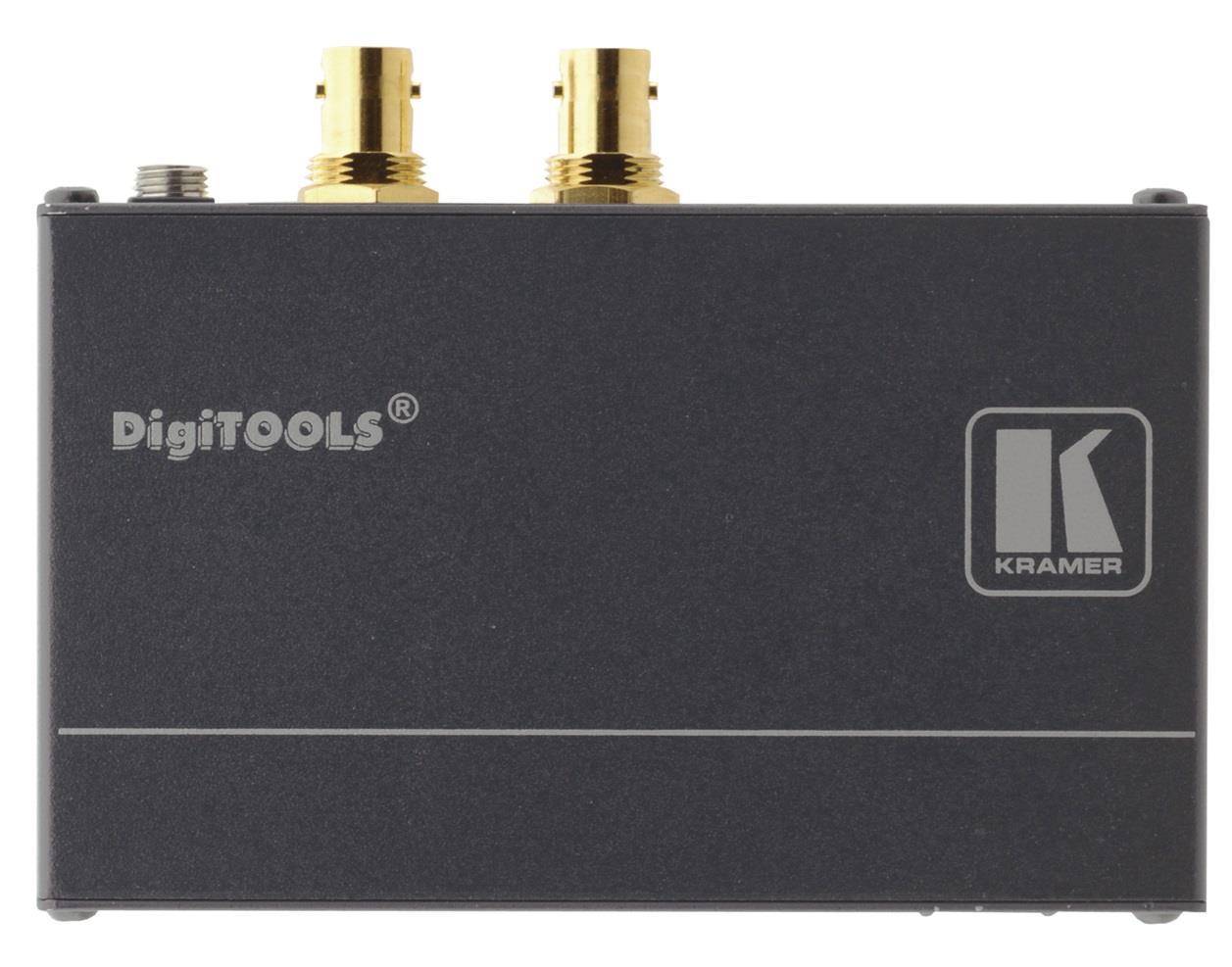

Kramer FC-113 is a high-performance format converter for HDMI signals. It converts an HDMI input signal to two identical SDI video signals with embedded audio. The FC-113-MD is certified for medical applications.
- Max. Data Rate - 3Gbps.
- HDTV Compatible.
- Multi-Standard Operation - SDI (SMPTE 259M), HD‑SDI (SMPTE 292M), and 3G HD−SDI (SMPTE 424M).
- Certified for Medical Applications - According to IEC 60601−1−2 (Electromagnetic Compatibility), (FC−113−MD).
- No Frame Rate or Resolution Conversion.

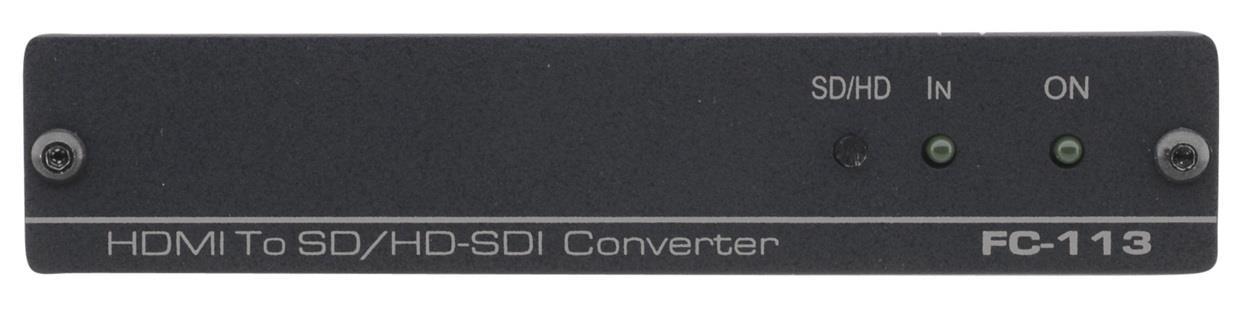

- Active Input™ LED Reporting - Green indicates standard definition (SDI), blue indicates a high−definition (HD−SDI) input signal.
- Size - Compact DigiTOOLS® - 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter. - compatible with RK-3T 19-inch rack adapter for mounting 3 Kramer TOOLS™ into a 1U rack space.
General
- Model
- FC-113 | HDMI to 3G HD-SDI
- Application
- Converter
Connections
- Video inputs
- 1
- Video outputs
- 1 Mirrored outputs
- Video in
- HDMI
- Video out
- 3G-SDI
Functions
- Scaler
- No
- USB passthrough
- No
Energy
- Power Supply
- 5V DC, 470mA External Power Supply
Measurements and weight
- Width
- 120 mm
- Depth
- 71.5 mm
- Height
- 24.4 mm
- Net weight
- 0.2 kg
Various
- Mounting
- 19" Rack, 1U With RK-3T optional rack adapter
- Mounting
- Freestanding/Shelf
- Included Accessories
- Power supply
- Warranty
- 7 years
Packaging info
- Packaging size
- 200 x 100 x 100 mm
- Packaging weight
- 500 g
