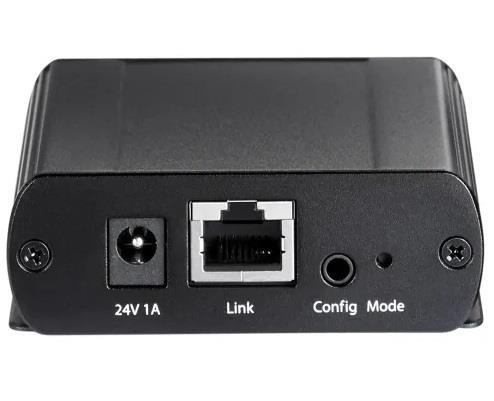

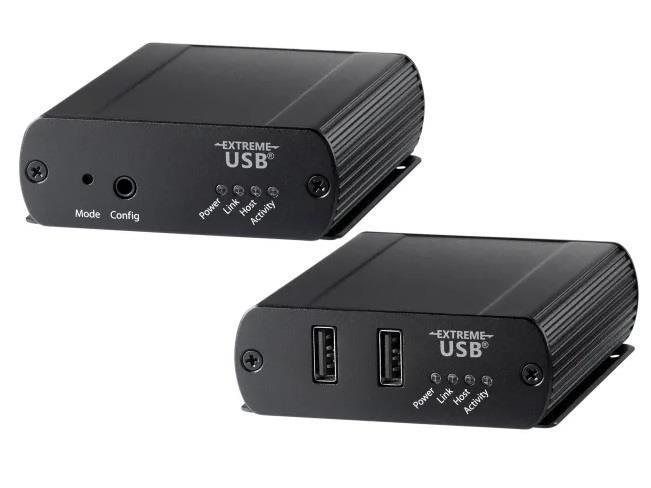

The Vaddio USB 2.0 Extenders provide a complete plenum extension solution for situations where your high-bandwidth USB 2.0 device (like a camera or other av source) cannot be installed near the computer it needs to connect to. The system includes a transmit (TX) or remote device side and a receive (RX) or Host PC side and extends full-bandwidth USB 2.0 high speed and USB 1.1 devices up to 100m over Cat-5e or better cable.

**Key Features: **
• 30 USB devices simultaneously supported
• Supported by W7, W10, MacOS, Linux and ChromeOS
• Plenum-rated cabling solution
• Supports USB 2.0 & 1.1



General

Extender type
Transmitter & reciever kit
Technology
TP/CAT
Range (max)
100 m With Cat-5 Cable

Features

USB standard
1.1, 2.0
USB/Data connection from
USB-B x1
USB/Data connection to
USB-A x2

Energy

Power Supply
External Power Supply

Measurements and weight

Width
86.4 mm
Depth
76.2 mm
Height
25.4 mm

Additional information

Application
Freestanding/Shelf
Included Accessories
Extreme USB 2.0 Extender TX/RX Unit, AC Power Adapter with AC Cord Set(s), 0.3m USB 2.0 cable type A to B, Quick-Start Guide
Warranty
3 years

Packaging info

Packaging size
250 x 200 x 180 mm
Packaging weight
866 g
