Now combining HDMI and USB Type-C
BenQ’s InstaShow™ is the wireless presentation solution that lets you share ideas immediately from nearly any device. Allowing up to 16 users to share simultaneously, InstaShow™ can boost meeting engagement and enhance collaboration. WDC10HC packs both an HDMI and USB Type-C button to offer wireless presentations to everyone.

No Software Setup or Maintenance
InstaShowTM doesn’t need any software installation or execution. There’s no setup, configuration, or waiting for pop-ups to launch.
Just plug into your PC or Mac and start presenting immediately.

Smooth Video and Audio Quality
With HDMI 1.4a video output standard and 16 bit, 48Hz audio quality, Instashow™ supports up to full HD 1080p video and stereo sound without cable clutter or complicated driver selection.

True Plug & Play
Simply connect InstaShow™ into your device then push the button to start presenting immediately without hassle, without time waste.

Strong Security
The security encryption and authentication protocols make this product safe, allowing to share confidential information without any concern for security breaches.

Latest Wi-Fi technology
The latest 802.11ac WiFi guarantees extremely smooth wireless streaming without lag or buffering.



General

Application
Wireless Presentation

Functions

Max connected users
16 pcs.
Users on screen
1 (fullscreen)
Extended desktop
Yes On all computers supporting extended desktop for HDMI/USB-C out

Video specifications

Max output resolution
1920x1080
Max Framerate
30 FPS with USB 3.0, lower with USB 2.0 connection

compatibility

Compatibility PC
Yes
Compatibility Mac
Yes
Compatibility iOS
No
Compatibility Android
No
Compatibility Chromebook
Yes

Connections

Wireless sharing
Hardware dongle
Donble included
Yes 2x InstaShow Buttons
Video out
HDMI

Interactivity

Touch support
No
White/Blackboard function
No
Moderator function
No

Communication

WiFi
Yes 5GHz, 2T2R
WiFi Standard
IEEE 802.11ac, with external antenna. (Auto channel setting, manual setting is not possible)
Wireless range
8 m Transmission Power can be reduced via setting.
Dual/guest network
No
Network integration
No
Managed
No only simple web interface
Security
WPA2 (WPA-PSK and WPA2-Enterperise) with AES 128 bit encryption

Energy

Power Supply
External Power supply DC 5V±10%, 1.5A (with Micro USB connection)
Consumption Typical
2 W
Consumption Max
4.5 W

Dimensions and weight

Width
110 mm
Depth
110 mm
Height
27 mm
Net weight
0.15 kg

Additional information

Included Accessories

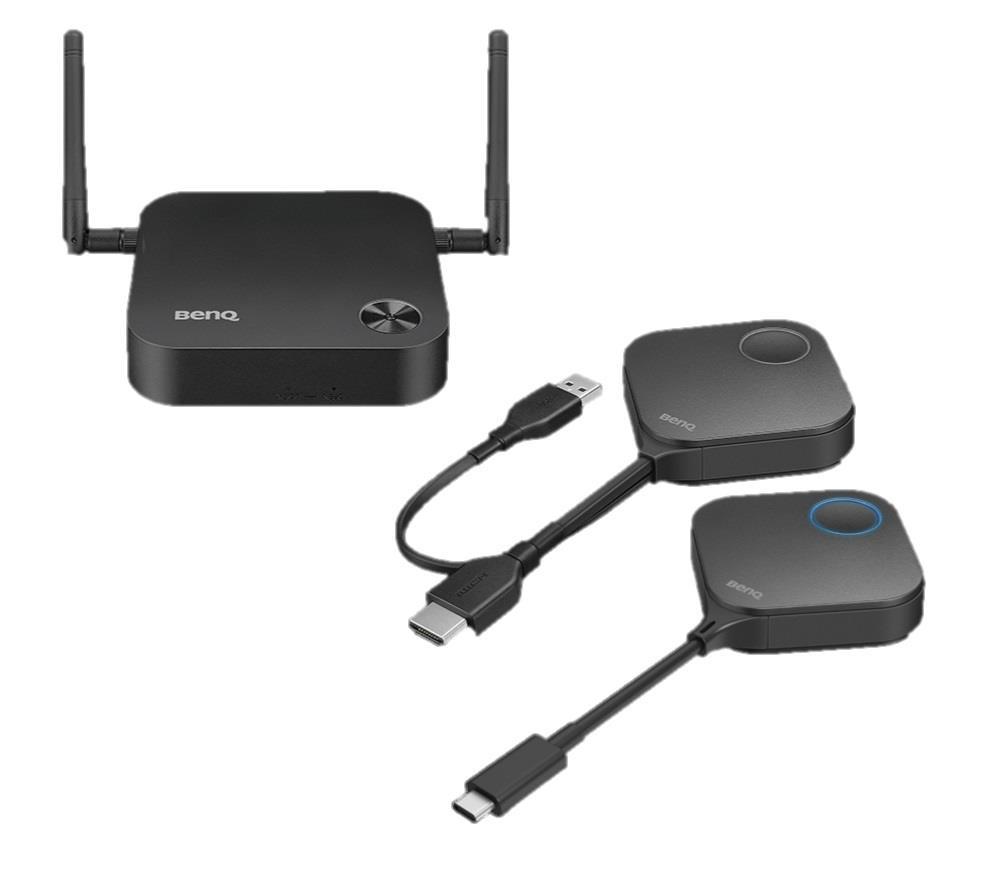

1x InstaShow Base unit, 1x InstaShow HDMI button, 1x InstaShow USB-C Button, 2x Antennas, 1x InstaShow tray, 1x Power adapter (with plugs for different regions), 1x USB-A – Micro USB-B, 1x HDMI-cable, 1x USB-A – USB-A extension, 1x Screwsr & rubberfeet kit, 1x Welcro
Warranty
3 years On-site exchange warranty

Packaging info

Packaging size
170 x 357 x 150 mm
Packaging weight
1.81 kg

Packaging info (3 pcs)

Packaging size
485 x 390 x 205 mm
Packaging weight
7.60 kg
