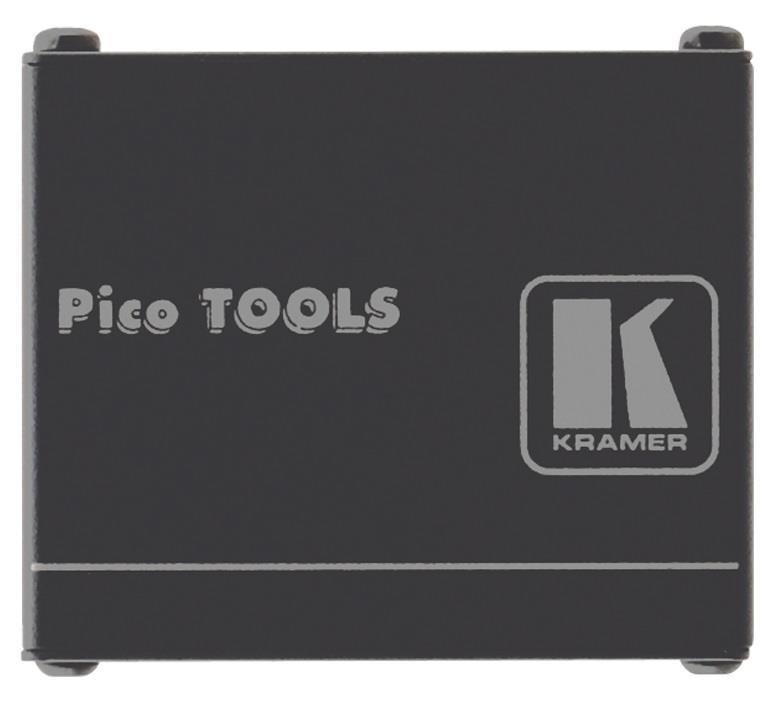

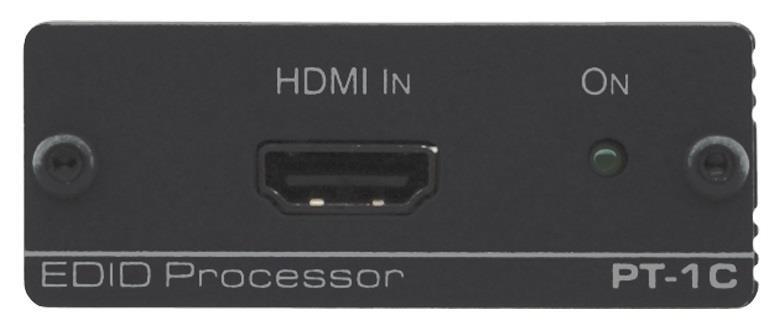

PT−1C is a 4K HDR EDID processor. It allows you to lock EDID signals and to support or not support HDCP, multi−channel audio or deep color signals that may or may not be compatible with the display.
Max. Data Rate — 17.82Gbps (5.94Gbps per data channel).
Max. Resolution — 4K@60Hz (4:4:4).
HDMI Compatible.
Compliance with HMDI Standards — HDR10, HDCP 2.2.
Line Powered Device — Power taken from the HDMI line, no power supply is needed.
Indicator — Power LED.
Controls — Four program DIP–switches control desired functions.
General
- Model
- PT-1C | HDMI EDID
- Application
- EDID processor
Image specification
- Resolution
- 3840x2160 17.82Gbps (5.94Gbps per data channel)
- Refresh rate
- 60 Hz
- Chroma subsampling
- 4:4:4
Connections
- Video inputs
- 1
- Video outputs
- 1
- Video in
- HDMI
- Video out
- HDMI
Functions
- Scaler
- No
- USB passthrough
- No
- Control
- DIP-Switch
Energy
- Power Supply
- Takes power from the HDMI line
Measurements and weight
- Width
- 62.2 mm
- Depth
- 51.8 mm
- Height
- 24.4 mm
- Net weight
- 0.1 kg
Various
- Mounting
- Freestanding/Shelf
- Warranty
- 7 years
Packaging info
- Packaging size
- 161 x 124 x 91 mm
- Packaging weight
- 188 g
