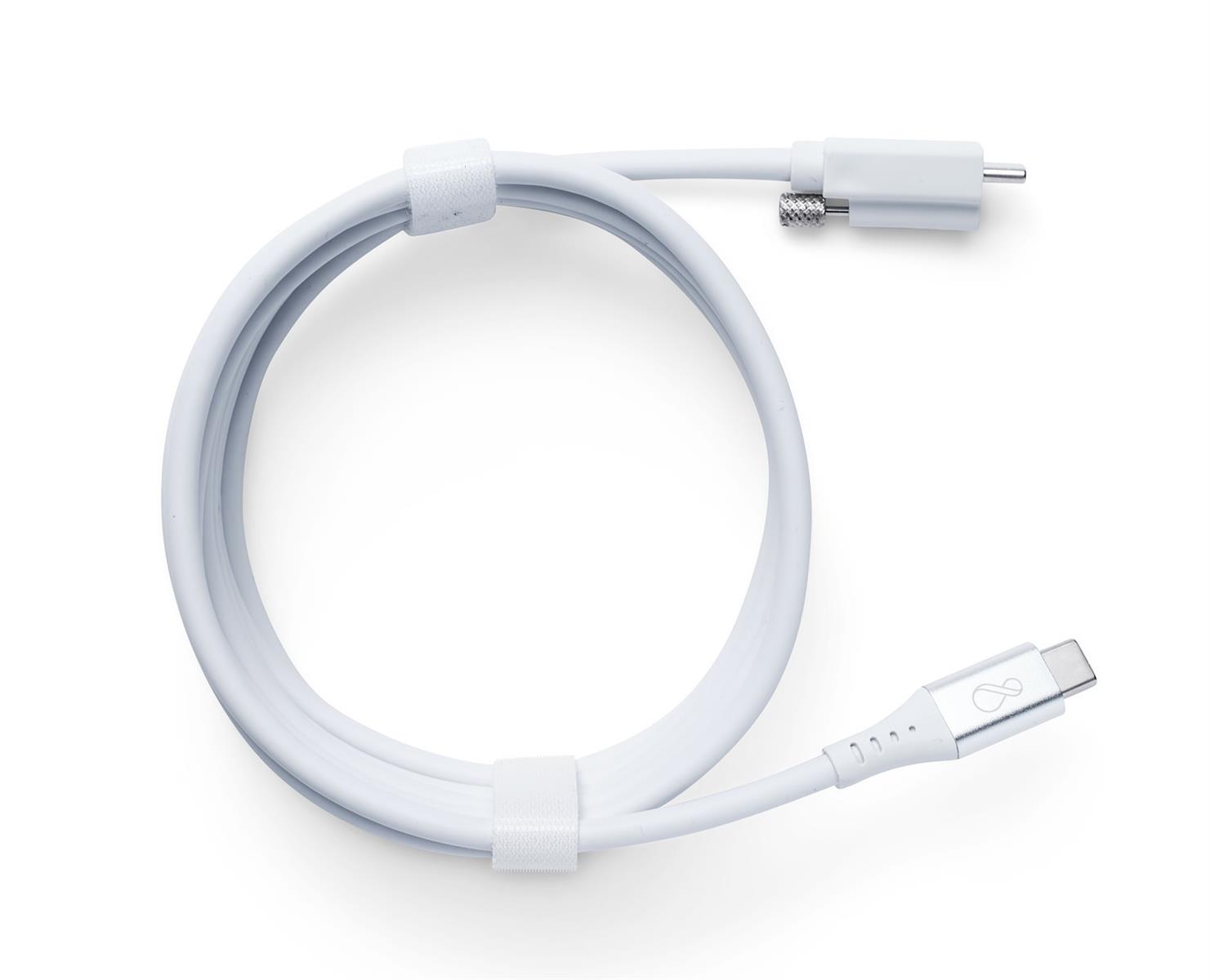

Ochno USB-C cable with locking screw

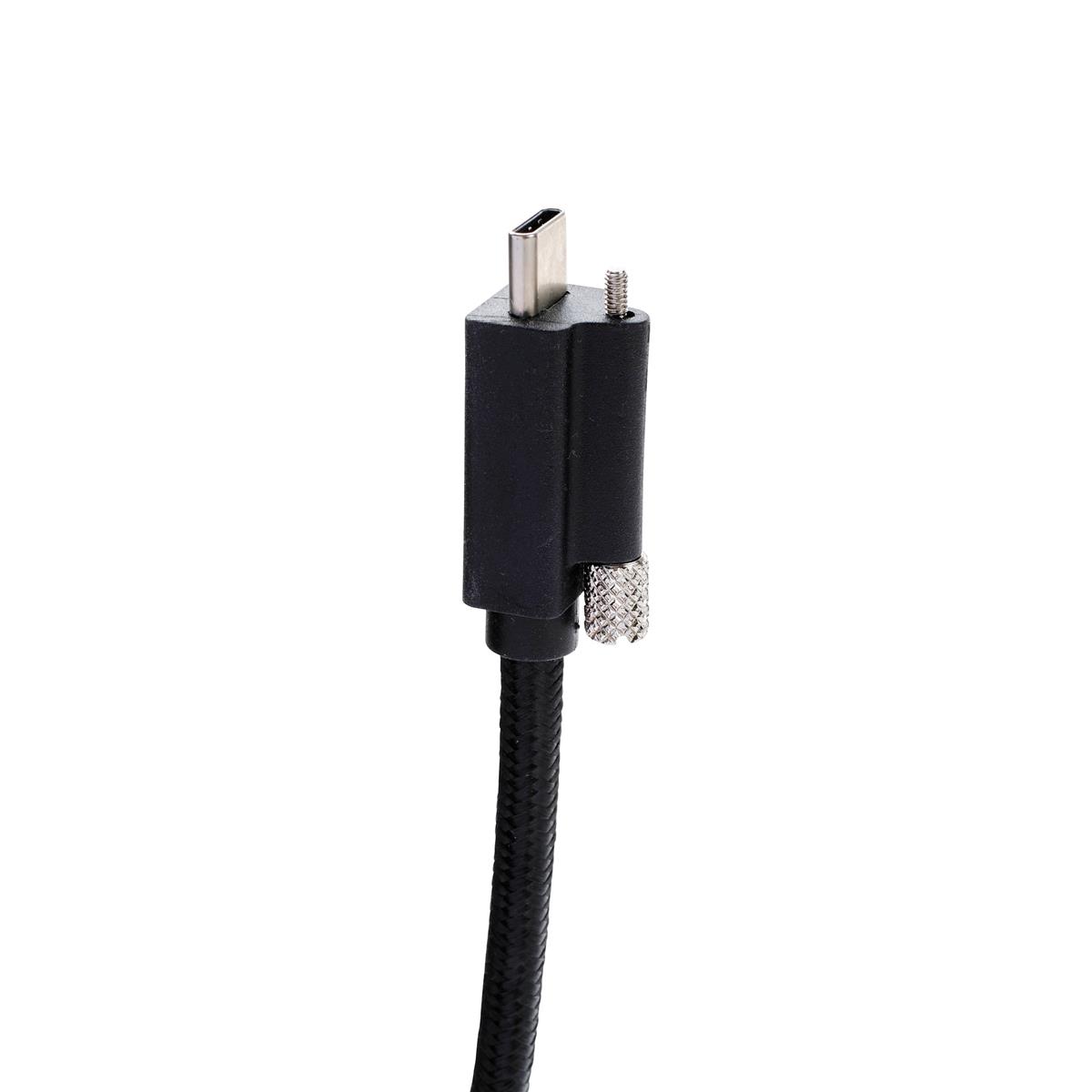

Ochno provide USB-C cables optimized for using pull out type of cables in meeting rooms. They are up to 2 m long and have locking screw in one end to secure fixing to the Ochno Power Conference main unit.

Same as other Ochno USB-C cables it can handle 5 A / 100 W charging, USB 3.1 communication up to 5 Gbit / s and video via alternate-mode DisplayPort 1.2 - 1.4.

0.5 m version is optimized for connecting devices to the Ochno Power Conference underside of the table. For example in-room PC or HDMI-adapters that are installed under the table.

Key Features:

  • Charging: EMCA-chip for 5A/100W charging.
  • Data communication: Up to USB 3.1, 5Gbit/s.
  • Video transmission: Alternate-mode, upp till DisplayPort 1.4 / HBR3, 2 lanes (16.2 Gbps) eller 4 lanes, max bandbredd 32.4 Gbps


General

Cable type
Connection cable
Connection from
USB-C
Connection to
USB-C

Functions

USB standard
3.1 Gen 1
Data transfer speed
5 Gbit/s
USB power delivery
20V, 5A (100W)
Conductor/Technology
Copper

Dimensions and weight

Length
2 m

Dimensions and weight

Color
White

Packaging info

Packaging size
104 x 103 x 37 mm
Packaging weight
99 g
Barcode
7350113051400
