Manual Preset Trigger Device for the AV Bridge 2x1, EasyIP Mixer, AV Bridge MatrixMix, MATRIX PRO, and ProductionVIEW.
Key Features:
- One (1) PresenterPOD Interface (Interface Supports up to 2 PODs for 8-total triggers)
- One (1) PresenterPOD with Trigger 4-buttons
- Choice of momentary or latching triggers
- Adhesive labels and mounting hardware included
- For use with AV Bridge 2x1, EasyIP Mixer, AV Bridge MatrixMix, MATRIX PRO, and ProductionVIEW

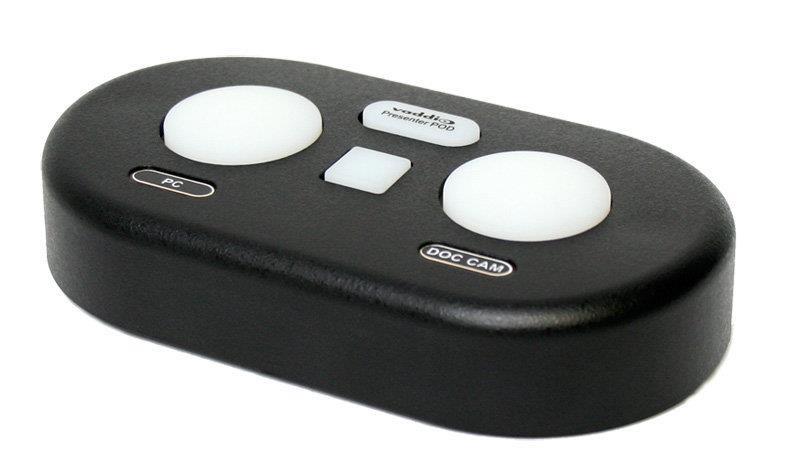

The PresenterPOD is the perfect complement to the Vaddio AV Bridge 2x1, EasyIP Mixer, AV Bridge MatrixMix, MATRIX PRO, and ProductionVIEW. The PresenterPOD has two large buttons located on the POD to offer flexible control over the automated content and other necessary content sources. A third, small square button is available for an additional preset like picture-in-picture (PIP) on/off adjustments.

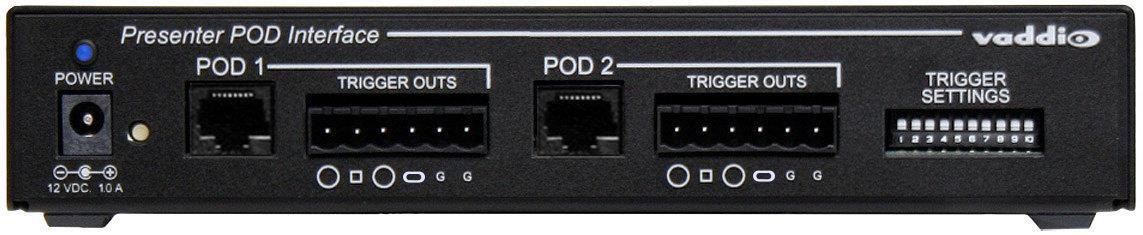

The PresenterPOD connects via a single Cat. 5 cable to the PresenterPOD Interface for power and data. The Interface can be programmed for either latching or momentary triggers.
General
- Installation
- Freestanding/Shelf, Table
- Interface type
- Keypad
Connections
- Control ports
- Trigger /Trigger via RJ-45
- Ethernet
- No
- WiFi
- No
Energy
- Power Supply
- 12V DC, 1.0A External Power Supply
Dimensions and weight
- Width
- 152 mm
- Depth
- 203 mm
- Height
- 37 mm
- Net weight
- 1.45 kg
Additional information
- Color
- Black
- Included Accessories
- Sheet of Labels for the Trigger Buttons, PresenterPOD Interface, PowerRite™ Power Supply w. AC Cord Set, Metal Mounting Tabs, Documentation
- Warranty
- 3 years
Packaging info
- Packaging size
- 230 x 310 x 80 mm
- Packaging weight
- 1.39 kg
