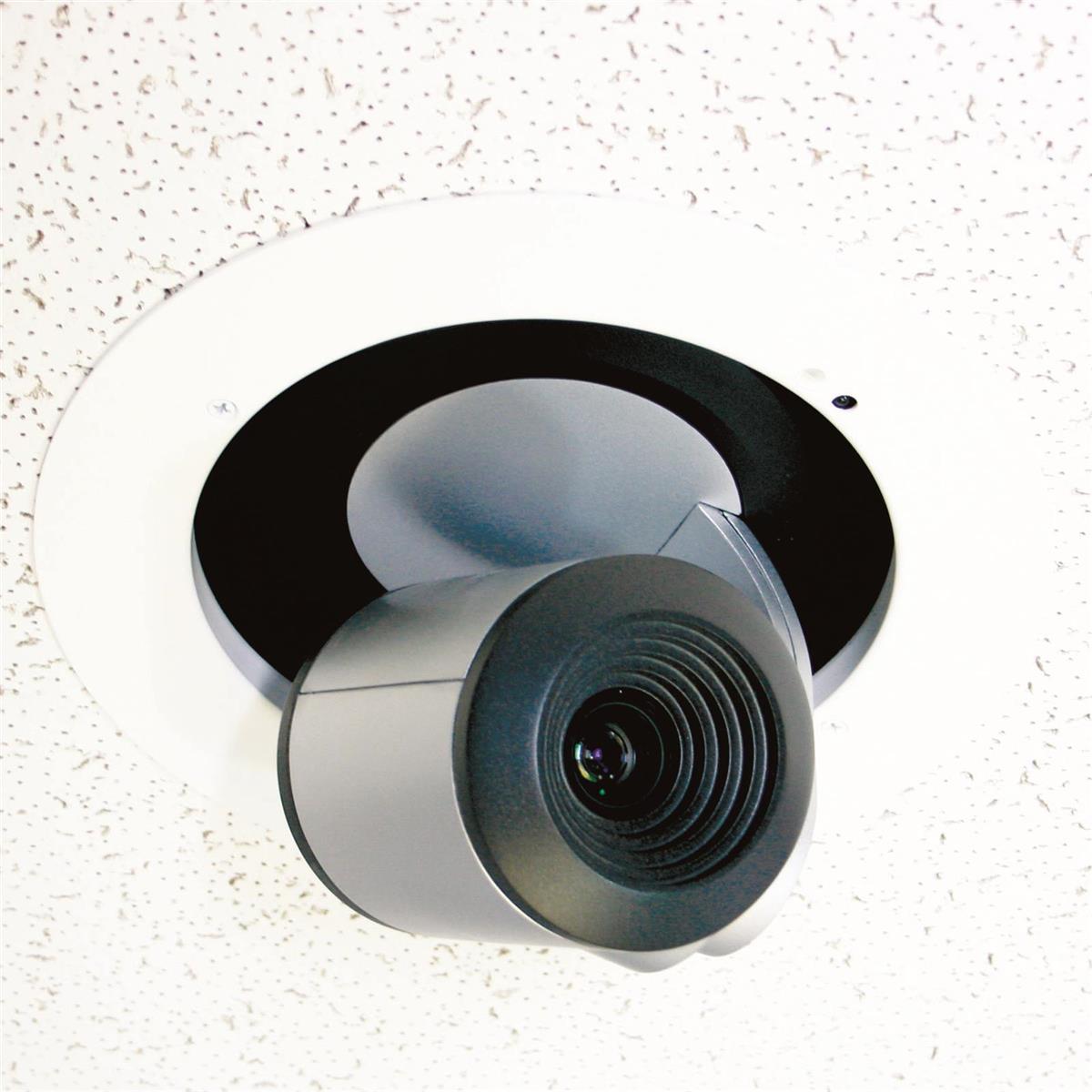

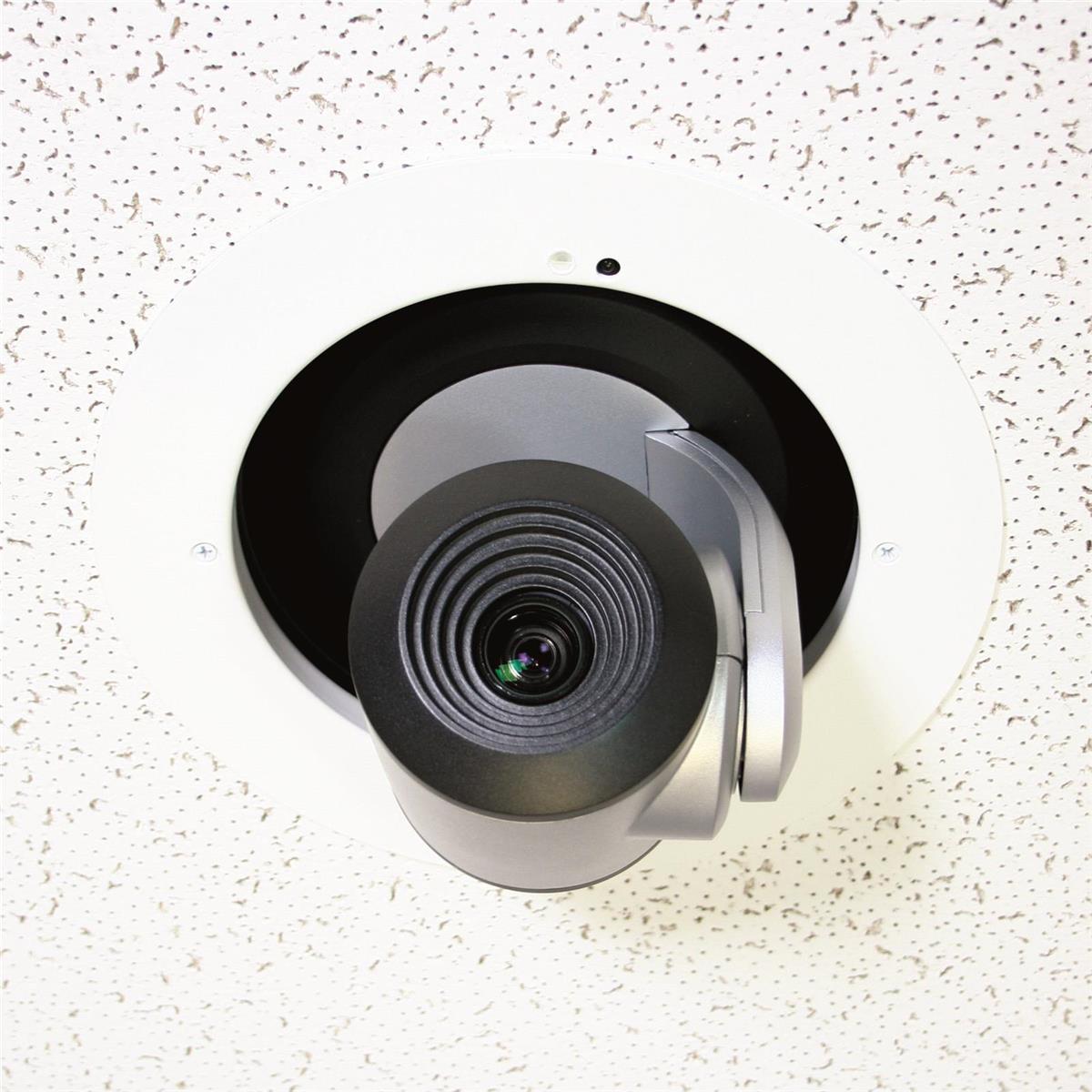

Vaddio’s IN-Ceiling, Half-Recessed Enclosure is an attractive, easy to install, partially recessed and inverted, PTZ camera mounting system. The IN-Ceiling Half-Recessed Enclosure is compatible with RoboSHOT 12/12E and 30/30E, EasyIP 20, and Logitech Rally cameras

Key Features:

  • Metal back box and white metal trim ring included
  • Active IR circuit in trim ring and enclosure powered by some camera systems or PEM
  • Tile support brace included
  • Camera not included
  • Vaddio’s IN-Ceiling Half-Recessed Enclosure is an attractive, easy to install, partially recessed and inverted, pan/tilt/zoom camera mounting system for Vaddio RoboSHOT 12/12E and 30/30E, EasyIP 20, and Logitech Rally cameras.

The enclosure features a sealed, recessed, metal ceiling camera enclosure with a one-piece tile support brace, white trim ring, and mounting hardware kit. Inside the white trim ring is an IR receiver with an IR emitter board, powered by compatible Quick-Connect Interfaces or Power Extension Module (PEM). This ensures full compatibility with the Vaddio IR Remote. The PEM is required if the mounted camera does not include a two cable Quick-Connect.

This Package Includes:

  • Metal back box with internal IR emitter and 1x camera mounting screw
  • Back box lid with collar ring and 4x mounting screws
  • White trim ring with IR receiver and 2x mounting screws
  • IR receiver cable with connectors
  • Felt IR shield ring (black)
  • 1x 0.6m cat-5e cable
  • Tile support brace
  • 3/4" clamp down conduit connector (romex type)
  • Quick-Start Guide


General

Application
Ceiling, Recessed
Color
White

Functions

Height adjustable
No
Tiltable
No
Swing/Pan
No
Roll/Pivot
No
Outdoor use
No

Dimensions and weight

Width
249 mm Outer ring
Depth
249 mm Outer ring
Height
71 mm

Additional information

Included Accessories
See product text above
Warranty
3 years

Packaging info

Packaging size
609 x 431 x 330 mm
Packaging weight
7.44 kg
