Data sheet

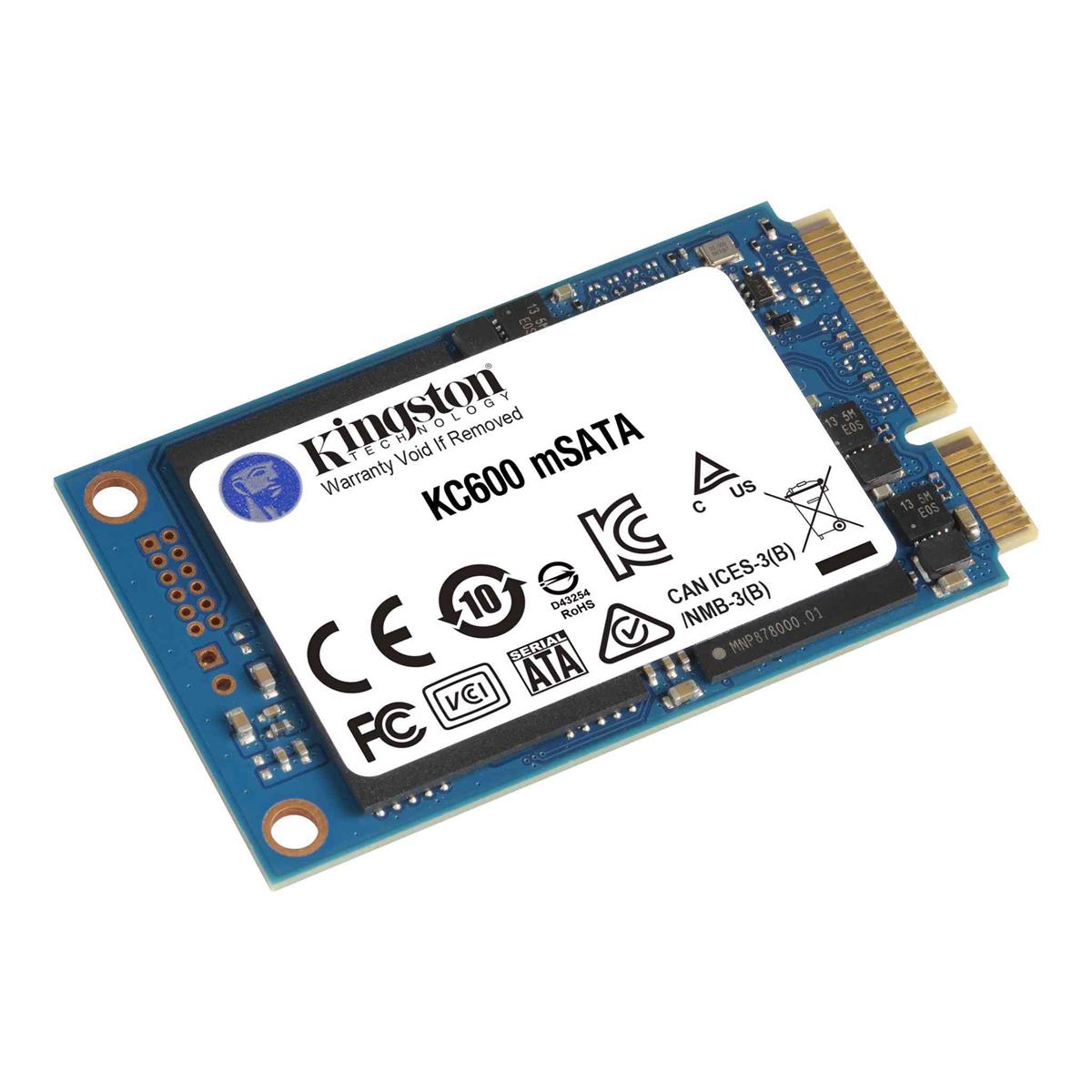

Hardware-based self-encrypting drive with 3D TLC NAND
Kingston’s KC600 is a full-capacity SSD designed to provide remarkable performance and optimised to provide functional system responsiveness with incredible boot, loading and transfer times. It comes in both 2.5” and mSATA form factors using SATA Rev 3.0 interface with backwards compatibility. The
KC600 utilises the latest 3D TLC NAND technology while supporting a full security suite that includes AES 256-bit hardware encryption, TCG Opal and eDrive. It features read/write speeds of up to 550/520MB/s1 to efficiently store your data up to 2TB2. It’s available in a bundle kit that provides everything you need for a smooth and easy desktop and notebook installation and upgrade.



Form factor
mSATA

General

Capacity
256 GB
Usage
PC/Laptop
Device type
Solid State Drive
Form factor
mSATA
Memory Type
3D TLC
Controller
SM2259
Power Connector
Serial ATA
Interface
SATA 6.0 Gbit/s
MTBF
1,000,000 h
Encryption
XTS-AES 256-bit
Max 4KB random read
90,000 IOPS
Max 4KB random write
80,000 IOPS

Performance

Read speed
550 MB/s
Write speed
500 MB/s
TBW
150 TB

Dimensions and weight

Width
50.8 mm
Height
4.85 mm
Length
9.85 mm
Weight
7 g

Additional Information

Warranty
5 years

Packaging info

Packaging size
95 x 45 x 7 mm
Packaging weight
15 g

Packaging info (25 pcs)

Packaging size
206 x 104 x 54 mm
Packaging weight
420 g
