Don’t disrupt the moment - enhance it with the ceiling mounted, HD quality document camera. Experience seamless video, remote management, and flexible installation with the Vaddio DocCAM 20 HDBT.

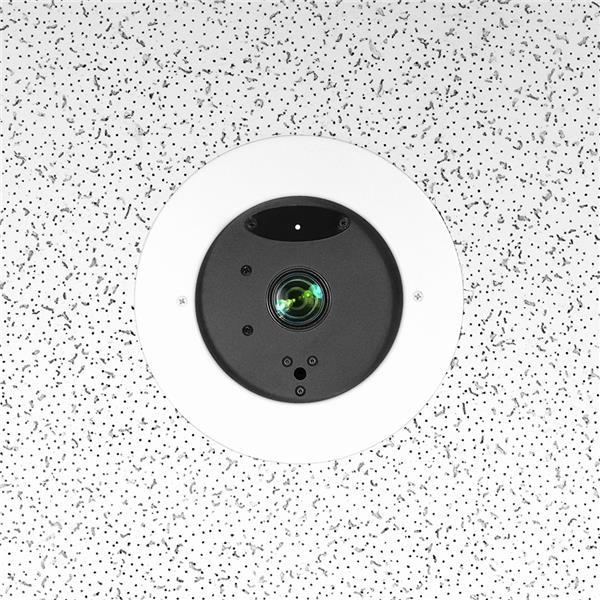

The DocCAM 20 HDBT is a high definition, recessed in-ceiling document camera.
Engage the audience like never before with 20x optical zoom and high-definition 1080p/60fps resolution. Capture more of the table with nearly 60° horizontal field of view.

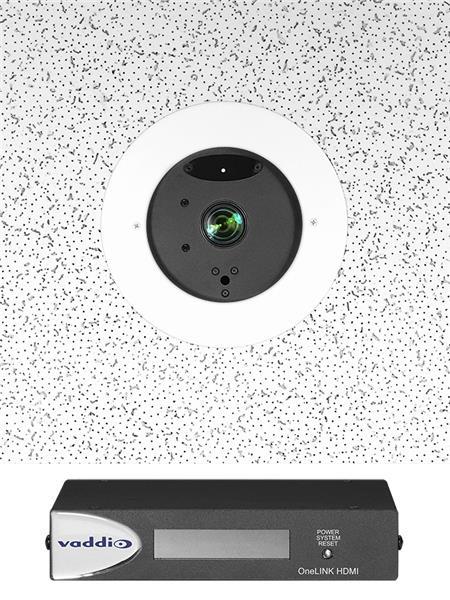

The DocCAM 20 HDBT has an in-ceiling, recessed design allowing it to blend into nearly any environment. Equipped with our popular OneLINK HDBaseT port, the DocCAM 20 HDBT easily connects to the Vaddio OneLINK HDMI extension system to reduce cabling and extend video, power, and control up to an installation distance of 328 ft (100M).
Remote network management of the DocCAM 20 HDBT allows the presenter to transmit a live image and control all the functions remotely making it an effective and efficient distance learning tool.
Key Features:
· Simple, clutter-free camera extension with HDBaseT technology
· Power, control, and video up to 328ft (100m) over a single Cat-5e/6 cable
· Simultaneous HDMI and IP Streaming outputs
In The Box:
· DocCAM 20 HDBT camera
· White trim ring with 2 qty mounting screws
· Tile Support Brace
· Vaddio IR remote commander for DocCAM 20 HDBT
· OneLINK HDMI Interface
· 48V power supply with AC cord set(s)
· EZCamera RS-232 Control Adapter
· Installation Guide
General
- Camera type
- Ceilingcamera, Document camera
- Color
- White
Image specification
- Max Resolution (Out)
- 1920x1080
- Framerate
- 60 FPS
- Optical zoom
- 20 x
- Field of view (horizontal)
- 60 °
- Signal-to-noise ratio
- 50 dB
- Min. illumination
- 0.4 Lux 100 Lux Recommended
Functions
- Programmable presets
- Yes 16
- Ceiling installation/Flip image
- No Not Invertible
- Auto framing/tracking
- No
Audio specification
- Built-in microphone
- No
- External microphone
- No
- Built-in speaker
- No
- External speaker
- No
Connections
- Video out
- HDMI, IP stream (RJ-45)
Energy
- Power Supply
- 1.37A, 48V DC Power supply
Dimensions and weight
- Width
- 203.2 mm
- Depth
- 203.2 mm
- Height
- 107.9 mm
- Net weight
- 2.29 kg
Additional information
- Included Accessories
- See product text above
- Warranty
- 3 years
Packaging info
- Packaging size
- 609 x 431 x 330 mm
- Packaging weight
- 7.44 kg
