A powerful player that catches your eye.
Technology should be simple, therefore we pre-configure our Qbic player so you can focus on the most important – the content on your digital screens.

  • Display Resolution: 4K/UHD 3840x2160
  • Video resolution: UHD 3840x1080
  • Content resolution*: FHD 1920x1080
  • HDMI CEC
  • Android 10 OS
  • Display orientation: Landscape and portrait
  • VESA mounting bracket, 75 x 75mm

A player with that little extra.
Despite its compact design, Qbic BXP-100 is a robust player that can handle tough environments and intensive media up to 4K*. It also has support for touch displays.

Bring life to your screens
Revive your old screens that are no longer supported by the solutions available on the market. Connect a Qbic player and the screen will almost be like new.
The player fits all screens compatible with Qbic.

Makes you feel secure
The player generates minimal heat, has built-in memory protection and no moving parts. In addition, the player has an option for remote administration and a pre-installed software for remote support.

NOTE! 4k UHD Video playback, other content is displayed in 1920x1080



General

Operating System
Android 10

Processor

CPU Model
ARM Quad core Cortex A53
CPU Speed
1.8 GHz
Number of cores
4 pcs.

Memory

Memory
2 GB

Graphics

GPU Model
Mali-T764
Display Connections
1 pcs. 4K 60Hz

Storage

Storage type
SSD
Storage size
32 GB

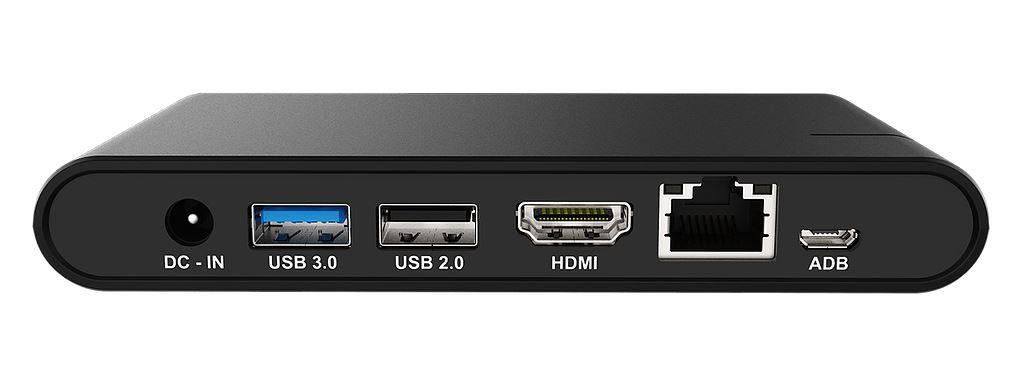

Connections

HDMI
Yes 1x 4K 60Hz, CEC
DisplayPort
No
USB type-A
Yes 2x (1x 2.0, 1x 3.0)
USB type-C
No

Communication

Ethernet
Yes 10/100 BASE-T
WiFi
Yes 802. 11 a/b/g/n/ac (Dual band 5G/2.4G)
Bluetooth
No

Energy

Power Supply
DC 5V/2A External Power Supply

Dimensions and weight

Width
127 mm
Depth
66 mm
Height
18.5 mm

Additional Information

Included Accessories
VESA Mounting bracket (75x75mm)
Warranty
3 years

Packaging info

Packaging size
224 x 167 x 73 mm
Packaging weight
490 g
