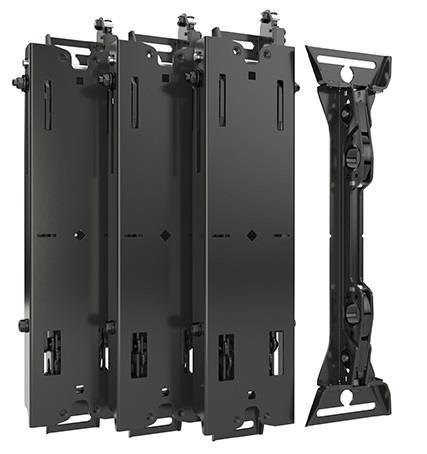

The Fusion™ Extra-Large Pull Out accessory can be used with Fusion™ Extra-Large Micro-Adjustable Fixed and Tilt wall mounts, to add up to 11.54" (293 mm) extension from the wall.

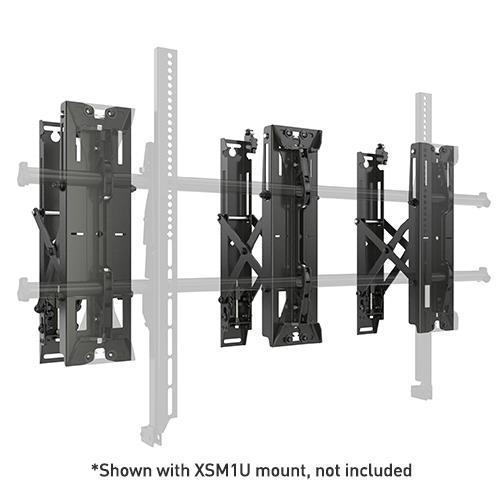

Compatible display mount models are XSM1U and XTM1U.
Optionally install Chief storage solutions such as the PAC526 in-wall box or on-wall CSPR component storage panel to secure AV equipment behind the display.
Key Features
- Up to 293 mm extension when combined with Fusion mount - great for recessed applications
- Scissor assembly extends out up to 241 mm
- Plumb adjust to keep display in line with the wall
- Latch to secure mount in home position
- Compatible with Fusion Extra-Large Micro-Adjustable Fixed and Tilt mounts for installation of 80”+ displays (up to 113 kg)
FCAXV1U Weight Capacity
Mounting substrate / With XTM1U / With XSM1U
Triple 16" on center steel stud / 90,7kg / 90,7kg
Triple 16" on center wood stud / 113kg / 90,7kg
3/4" Plywood backed steel stud / 113kg / 90,7kg
Solid Concrete block / 113kg / 90,7kg
Hollow Concrete block / 113kg / 90,7kg
General
- Interface Application
- Adapter Pop-out
- Color
- Black
Functions
- Portrait
- No
- Tiltable
- No
- Swing/Pan
- No
- Roll/Pivot
- No
- Lockable
- No
Measurements and weight
- VESA Min-Max (mm)
- Depending on mount
- Max weight capacity
- 113 kg Depending on wall. See product text above
Additional information
- Warranty
- 10 years
Packaging info
- Packaging size
- 600 x 220 x 230 mm
- Packaging weight
- 16.52 kg
