The PCC MatrixMIX Live Production Controller is designed for use with the AV Bridge MatrixMIX AV Switcher. The PCC MatrixMIX integrates video switching, camera control, and graphics mixing into a single ergonomic user interface
Key Features:
- Easy-to-find camera functions, pan, tilt and zoom speed control knobs
- Illuminated push buttons for camera selection
- Large focus knob for fine control with auto/manual toggle and three-axis Hall-effect joystick
- Browser-based user interface for control anywhere
- New! Vaddio Deployment Tool
Simplify installations by viewing all your Vaddio products across a deployment on one screen with the simple click of a button. The Vaddio Deployment Tool enables you to select devices from the network, choose an action like rebooting the device, unmute the audio, or updating firmware and voilà! – remote troubleshooting success. You can even conduct mass firmware updates on hundreds of devices all at once, which saves you a lot of time.
The PCC MatrixMIX Live Production Controller is designed for use with the AV Bridge MatrixMIX AV Switcher. The PCC MatrixMIX integrates video switching, camera control, and graphics mixing into a single ergonomic user interface.

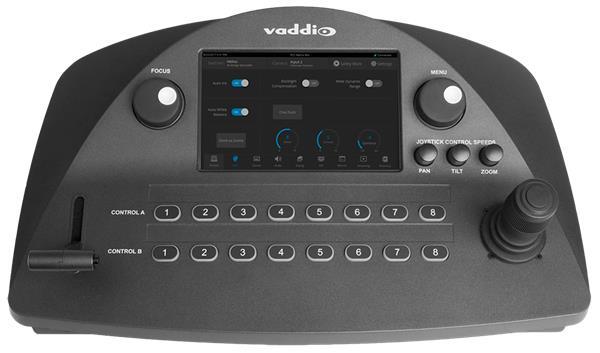

The PCC MatrixMIX is equipped with precision controls for the most demanding camera operation environments. It has a full color touchscreen interface for easy-to-find camera functions, pan, tilt and zoom speed control knobs, illuminated push buttons for camera selection, large focus knob for fine control with auto/manual toggle and a three-axis Hall-effect joystick for smooth precise camera movements. All of these controls are browser-based and available through an embedded web server for control anywhere.
This broadcast-quality joystick controller comes with full preset store and recall, CCU functionality, and IP management for seamless control of any Vaddio RoboSHOT or ClearSHOT cameras –– from anywhere in the world. Whether you are creating a remote studio or state-of-the-art broadcast system, the PCC Premier is your solution to ultimate camera control.
General
- Installation
- Table
- Interface type
- Joystick
Connections

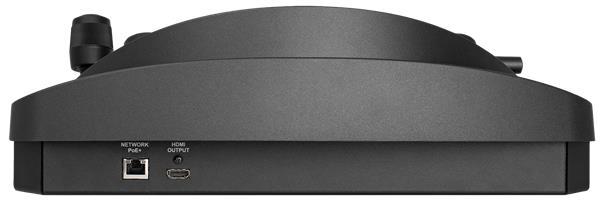

- Control ports
- Ethernet/IP (RJ-45) PoE+ Ethernet for power, control, and access to the (Max 8) cameras associated w. the connected switcher
- Control ports
- Web interface
- Ethernet
- Yes
- WiFi
- No
Energy
- Power Supply
- PoE+
Dimensions and weight
- Width
- 432 mm
- Depth
- 279 mm
- Height
- 126 mm
- Net weight
- 3.3 kg
Additional information
- Color
- Black
- Included Accessories
- The PCC MatrixMIX Live Production Controller is designed for use with the AV Bridge MatrixMIX AV Switcher. The PCC MatrixMIX integrates video switching, camera control, and graphics mixing into a single ergonomic user interface.
- Warranty
- 3 years
Packaging info
- Packaging size
- 355 x 330 x 330 mm
- Packaging weight
- 3.63 kg
