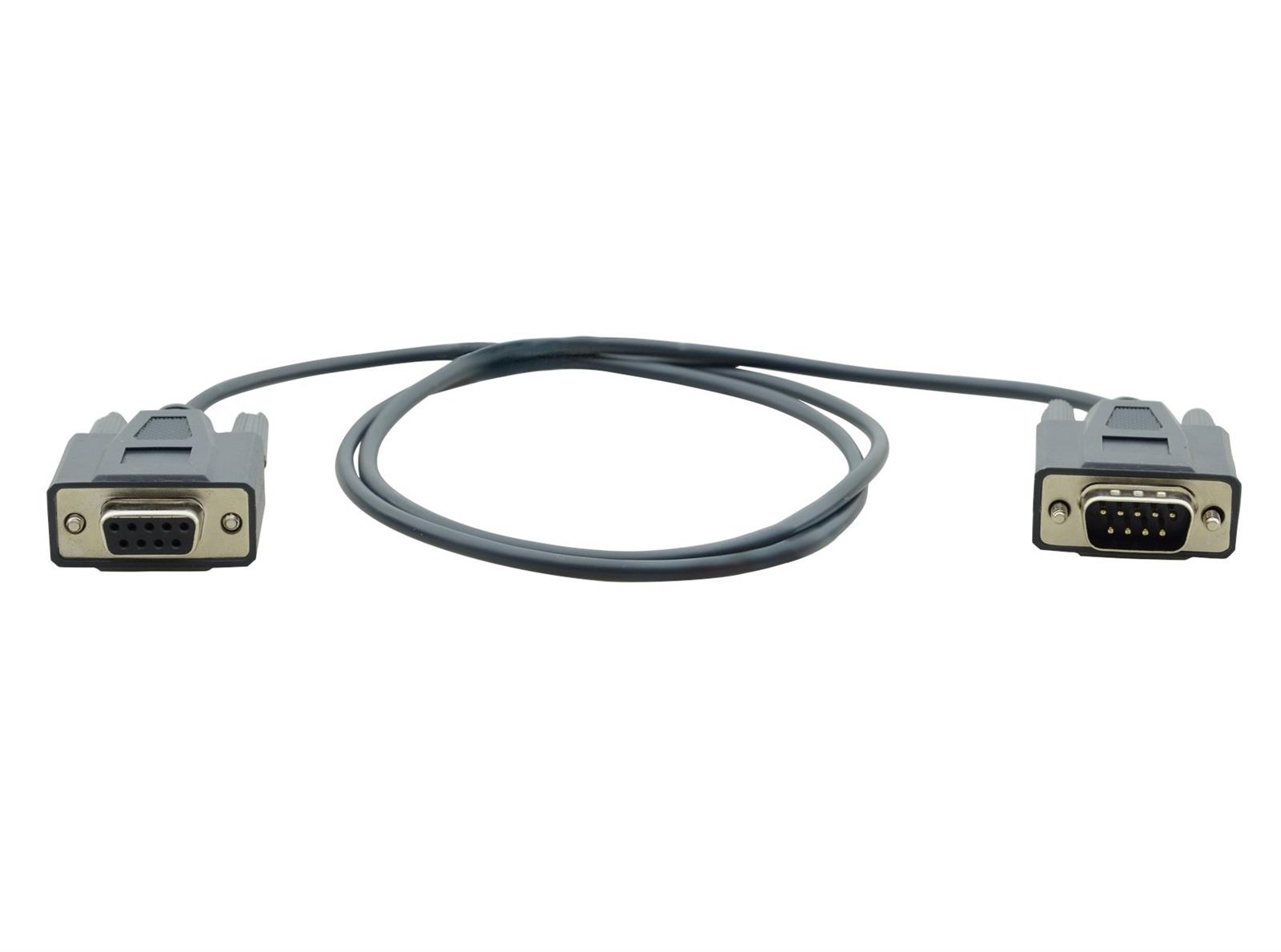

Kramer's C−D9M/D9F control cables are for RS−232 applications to control devices within a professional AV system. Many Kramer products are RS−232 controllable and equipped with 9−pin D connector. This RS−232 cable helps to connect them safely to transmit the RS−232 serial commands to a touch−screen system, PC, or other serial controller equipped with 9−pin D connector.
- Quality Construction — Constructed using three 28AWG isolated conductors, terminated with male to female molded 9–pin D–sub connectors, nickel plated.
- Pinout — Wired pin to pin on pins 2, 3 & 5.
- Molded Strain Relief.
- RoHS Compliant.
- Varied Selection of Lengths — 1 to 15m.
General
- Cable type
- Installation cable
Dimensions and weight
- Length
- 3 m
Additional information
- Color
- Grey
- Warranty
- 7 years
Packaging info
- Packaging size
- 150 x 100 x 15 mm
- Packaging weight
- 118 g
