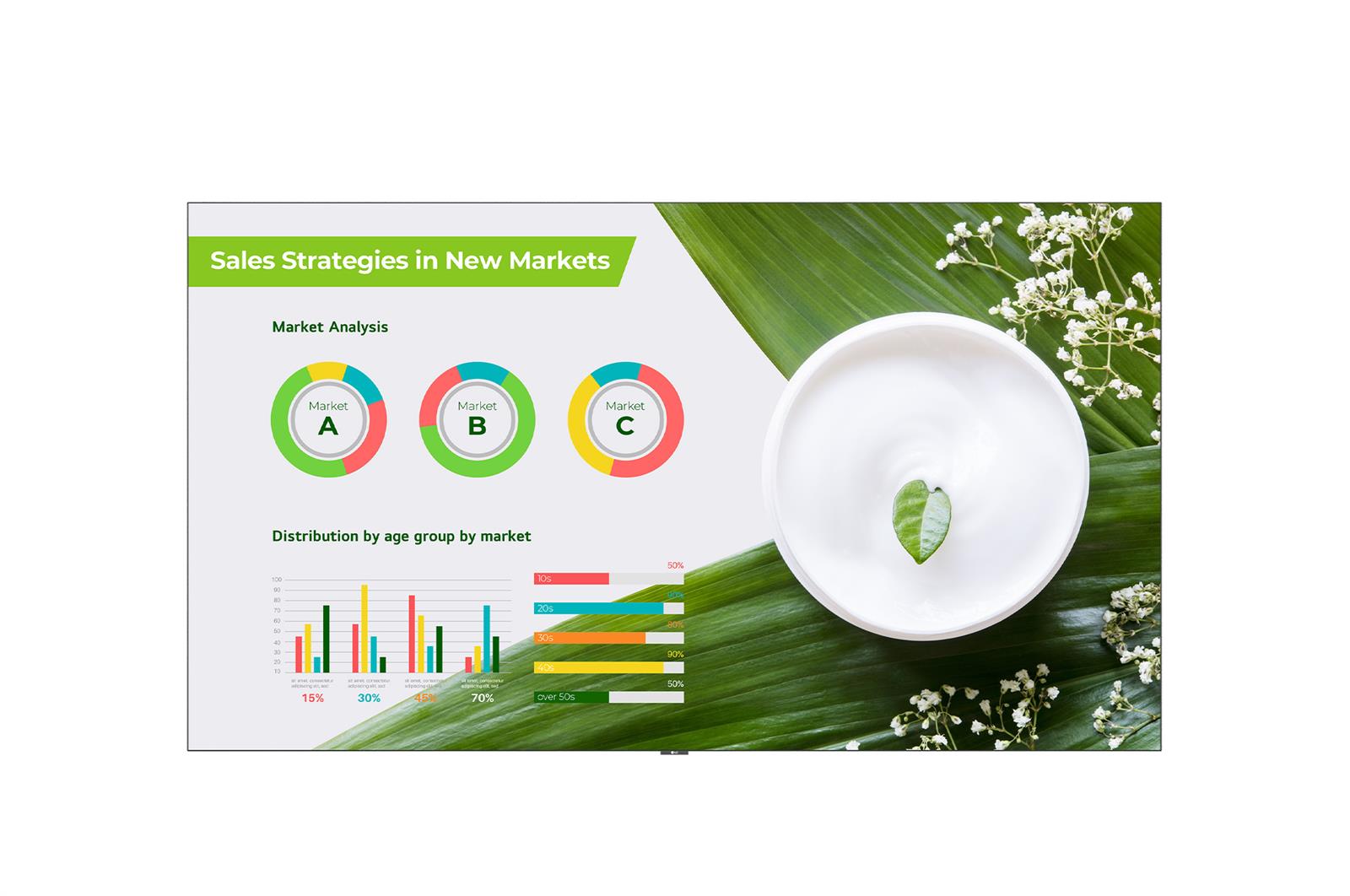

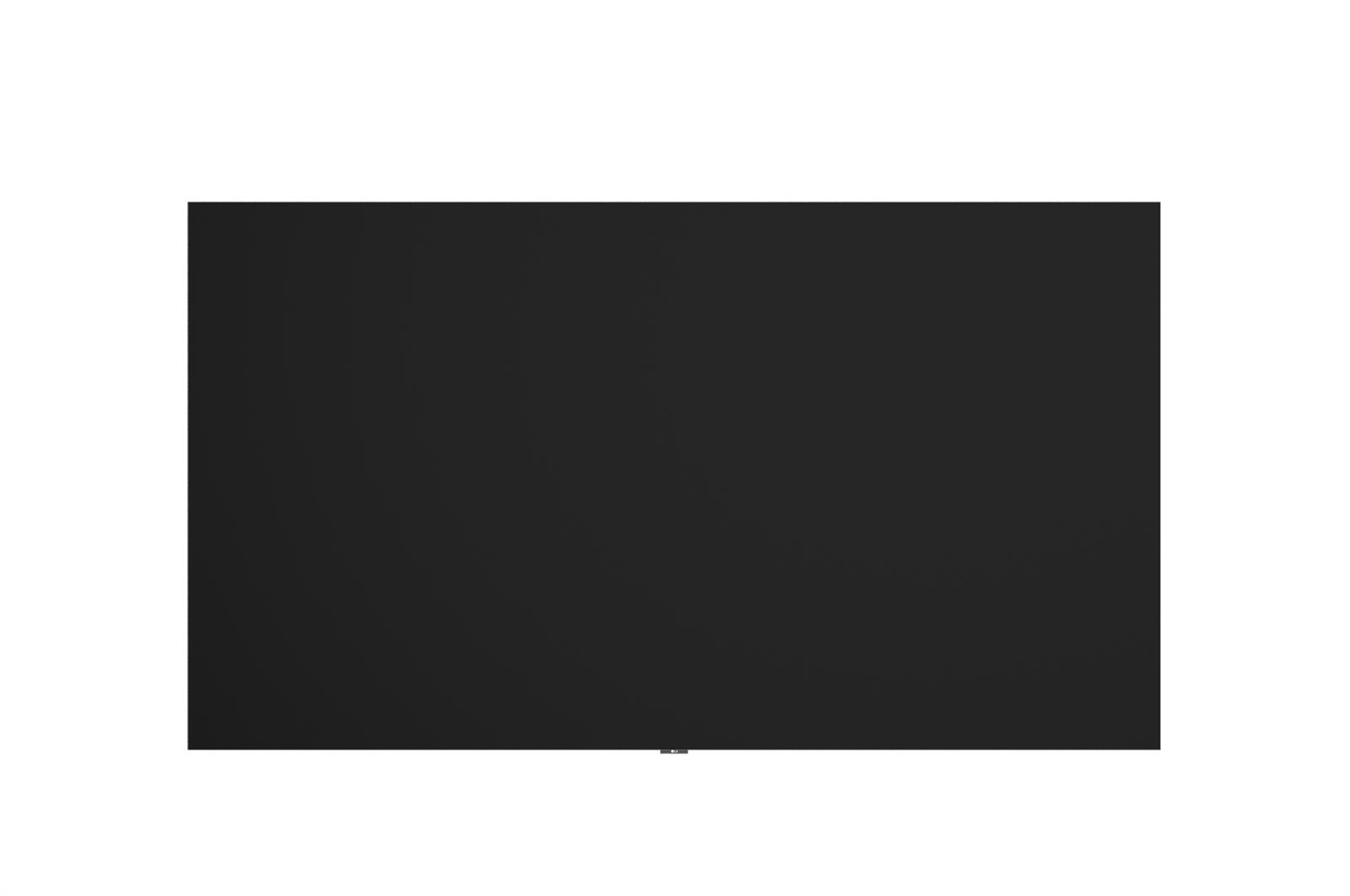

All-in-One LED Display with webOS
Key Features:
- Screen Size : 136"
- Pixel Pitch : 1.56 mm
- Brightness : 500 nit (Max., after calibration)
- Screen Resolution : 1,920 × 1,080
All-in-One LED Screen with Built-in Speaker
Experience the convenience of LG’s LED All-in-One LAPA series, featuring stunning 163/136-inch screen. This all-in-one package includes an embedded controller and built-in speaker, making setup a breeze. Dispelling the notion that LED displays are difficult and complex to install, it requires no controller connections or module configuration.
Easy Installation
The installation process for the LED All-in-One is straightforward. First, secure the cabinets (three for the LAPA Series). Next, attach each LED display module to the cabinets, and finally, plug in the power cable. This simple installation saves time and labor, allowing users to easily manage the LED screen.
Simple Power Connection
The LAPA series operates with a double AC cable, simplifying power connections and ensuring a clean, tidy installation.
Quick Maintenance
In case of a failure related to the LED module or the system board, it can be serviced from the front. The LED module can be easily detached using the provided magnetic tool and replaced quickly without cabling.
Versatile Installation with Dedicated Accessories
The product is offered with the necessary component including the landscape wall mount and tools for installation. For added convenience, a dedicated stand is available as an option, allowing you to easily position the screen based on your installation needs. Additionally, the LAPA series can be seamlessly arranged side by side in a 1 × N configuration, accommodating up to 10 screens to suit your specific installation site and purpose.
Real-time LG ConnectedCare
Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients’ businesses.
High Performance SoC with webOS
Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS smart signage platform offers an intuitive GUI and simple app development tools.
*All images in this page are for illustrative purposes only and may differ from the actual product.
**Stand accessories differ by models, and need to be purchased separately.
Display
- Image diagonal
- 136 "
- Display Resolution
- 1920x1080
- Pixel pitch
- 1.56 mm
- Diode Type
- Single SMD
- Refresh rate
- 3,840 Hz
- Brightness (Max)
- 500 Nits after calibration
- Viewing angle
- 150 ° Horizontal/Vertical
LED Module/Cabinet
- No. cabinets/display (WxH)
- 10×10 (Total 100)
- Module Resolution
- 192x108
Connectivity
- Display Controller
- Embedded (webOS)
- Video in
- DisplayPort x1
- Video in
- HDMI x3
- Audio outputs
- Optical Digital
- Ethernet
- Yes
- Wi-Fi
- Built-in
Energy
- Power Supply
- 100-240 V AC; 50/60 Hz
- Consumption Max/m2
- 260 W
- Consumption Max tot.
- 1,300 W
Dimensions and weight
- Width
- 3,005 mm
- Height
- 1,692.5 mm
- Depth
- 29.95 mm (Thickest 59,5mm)
- Net weight
- 108.5 kg
Additional information
- Service access
- Front service
- IP Classification
- IP30
- Operating Temperature min
- 0 Celsius
- Operating Temperature max
- 40 Celsius
- Included Accessories
- All necessary components for wall mounting are included. Screws to attach and tools to install wall brackets/accessories need to be added.
Packaging info
- Packaging size
- 1,415 x 802 x 1,918 mm
- Packaging weight
- 195.00 kg
