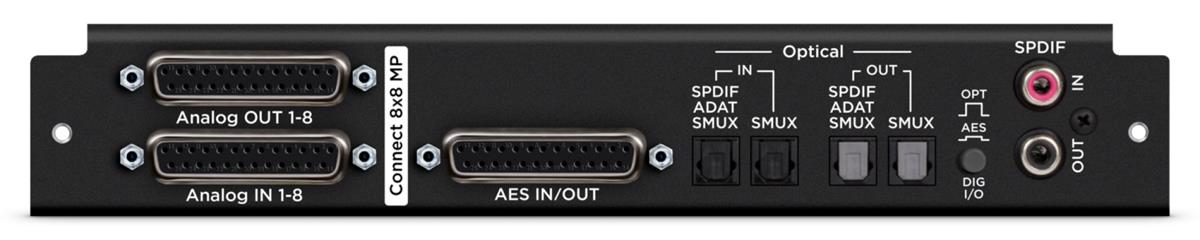

Apogee Connect 8X8MP | modulkort 8x8 Analog I/O + 8x8 AES/Optical I/O + 8 mik pre

Artikelnummer: 2267012
SKU: CONNECT-8X8 MP
EAN: 805676302447

In stock

Look at price and place order

8×8 Analog I/O + 8×8 AES/Optical I/O + 8 Mic preamps 16 Channels of I/O simultaneously

INPUTS

Analog IN: 8 balanced inputs on 1 DSUB 25-pin connector
8 microphone preamps with up to 72dB of gain
- Featuring Advanced Stepped Gain Architecture™
*AES-EBU IN: 8 inputs on 1 DSUB 25-pin connector
- (192k single wide compatible)
*Optical IN: Supports ADAT, SMUX & S/PDIF
- ADAT: 8 channels 44.1-48 kHz
- SMUX: 8 channels 88.2-96 kHz
- S/PDIF: 2 channels, up to 96 kHz
Coax IN: 2 channels of S/PDIF, up to 192 kHz

OUTPUTS

Analog OUT: 8 balanced outputs on 1 DSUB 25-pin connector
*AES-EBU OUT: 8 outputs on 1 DSUB 25-pin connector
- (192k single wide compatible)
*Optical OUT: Supports ADAT, SMUX & S/PDIF
- ADAT: 8 channels 44.1-48 kHz
- SMUX: 8 channels 88.2-96 kHz
- S/PDIF: 2 channels, up to 96 kHz
Coax OUT: 2 channels of S/PDIF, up to 192 kHz

* Hardware switch selects AES or Optical digital input format

General

Product series: Symphony
Application: I/O modules

Packaging info

Packaging size: 270 x 335 x 75 mm
Packaging weight: 1.07 kg
