PLUG-AND-PLAY PoE DANTE INTERFACE

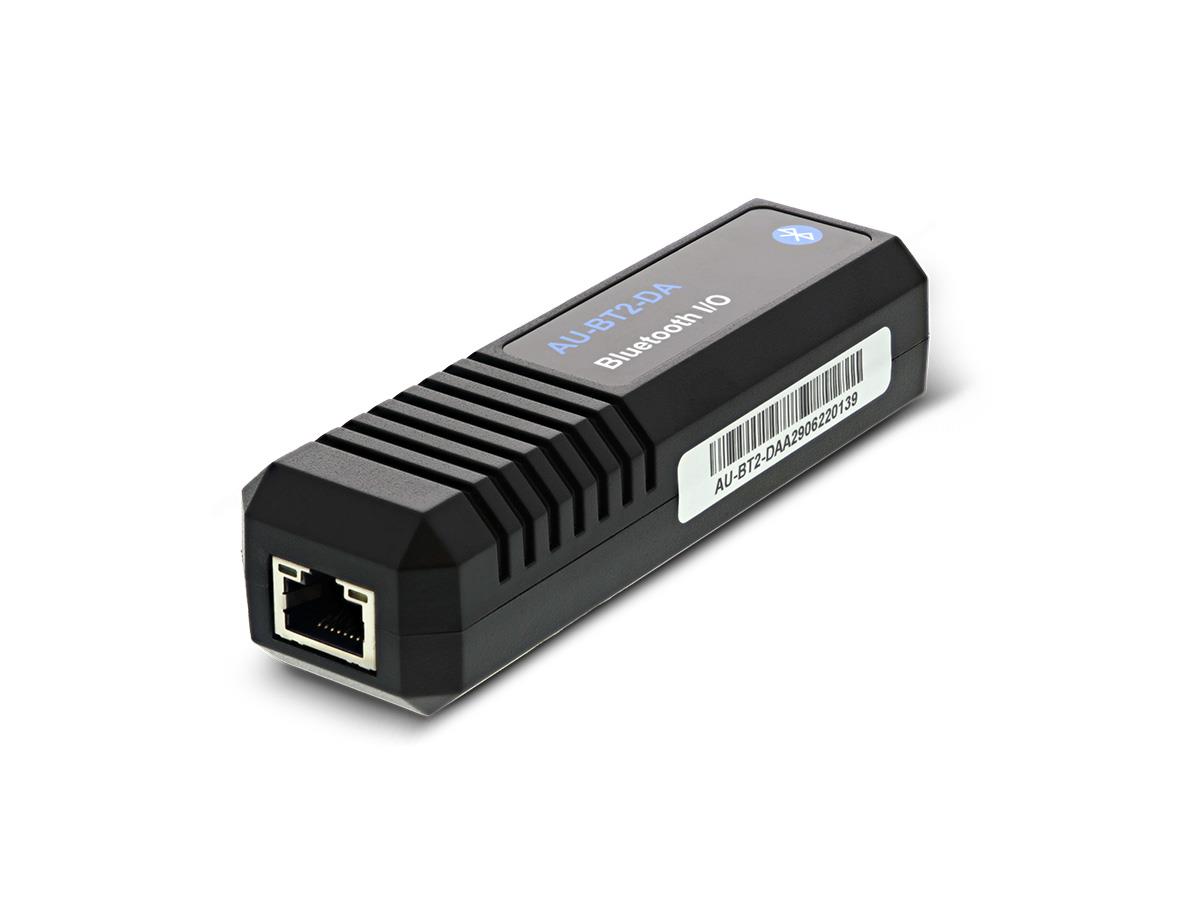

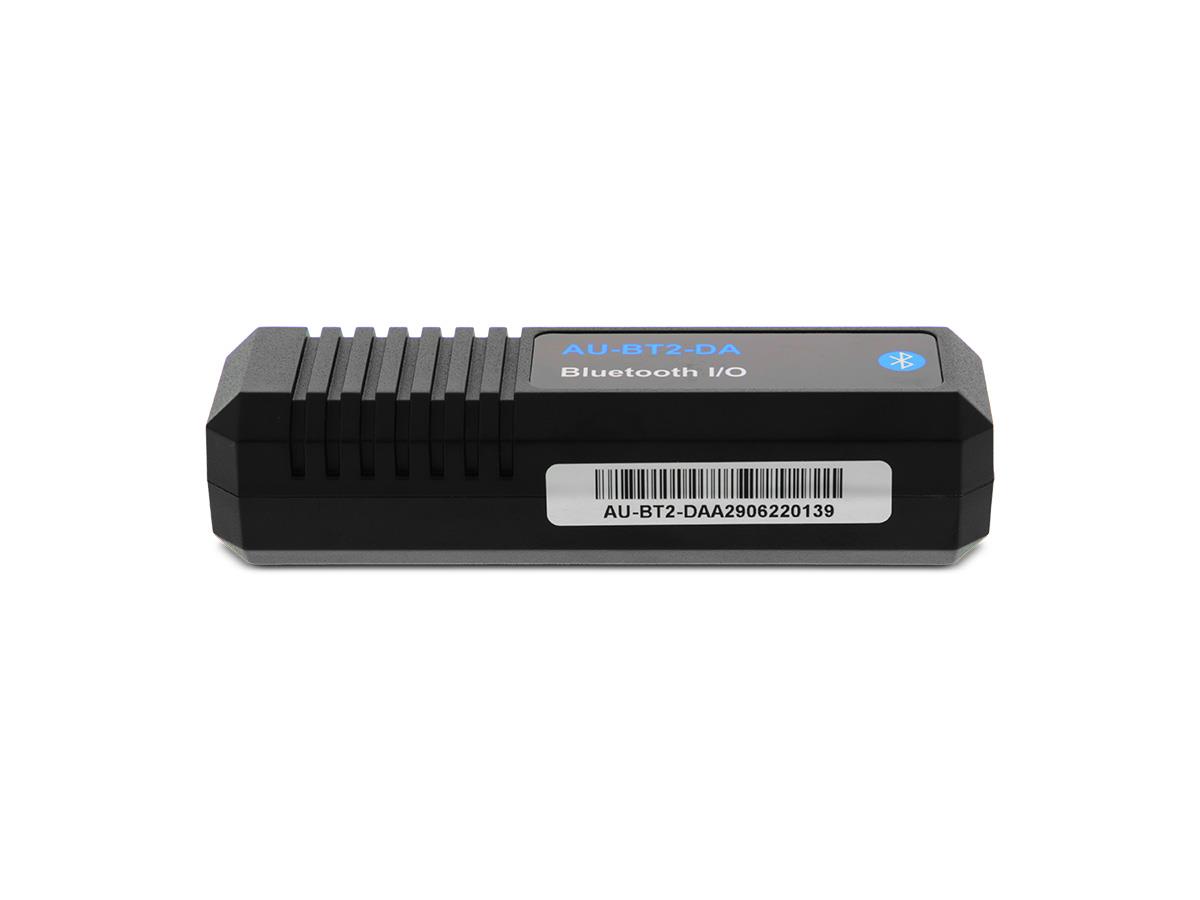

AU-BT2-DA from TiGHT AV allows for transmitting two channels of Bluetooth audio to your Dante network and simultaneously receiving one channel of Dante Audio. It supports sample rates up to 96kHz, using Audinate’s original Dante Ultimo chip.

The AU-BT2-DA is a simple and cost-efficient solution to integrate wireless Bluetooth audio to and from a Dante network. Simply pair your device via the button on the adapter, and you are ready to play audio from your device or allow for migrating mobile calls to your Dante-enabled conference system.

PoE support allows for a simplified installation via a PoE-capable network switch or from a separate PoE injector.

KEY FEATURES:

  • Plug and Play
  • 2x1 audio channels
  • Bluetooth 5.0 support
  • Maximum Bluetooth LoS transmission distance up to 20m
  • Bluetooth paring button on front
  • Dante and AES67 support
  • 24-bit audio support
  • Supports 802.3af PoE
  • Dante Controller and Dante Domain Manager compatible


General

Color
Black

Dimensions and weight

Width
115 mm
Depth
34 mm
Height
28 mm
Net weight
70 g

Additional information

Warranty
5 years

Packaging info

Packaging size
150 x 73 x 35 mm
Packaging weight
109 g
