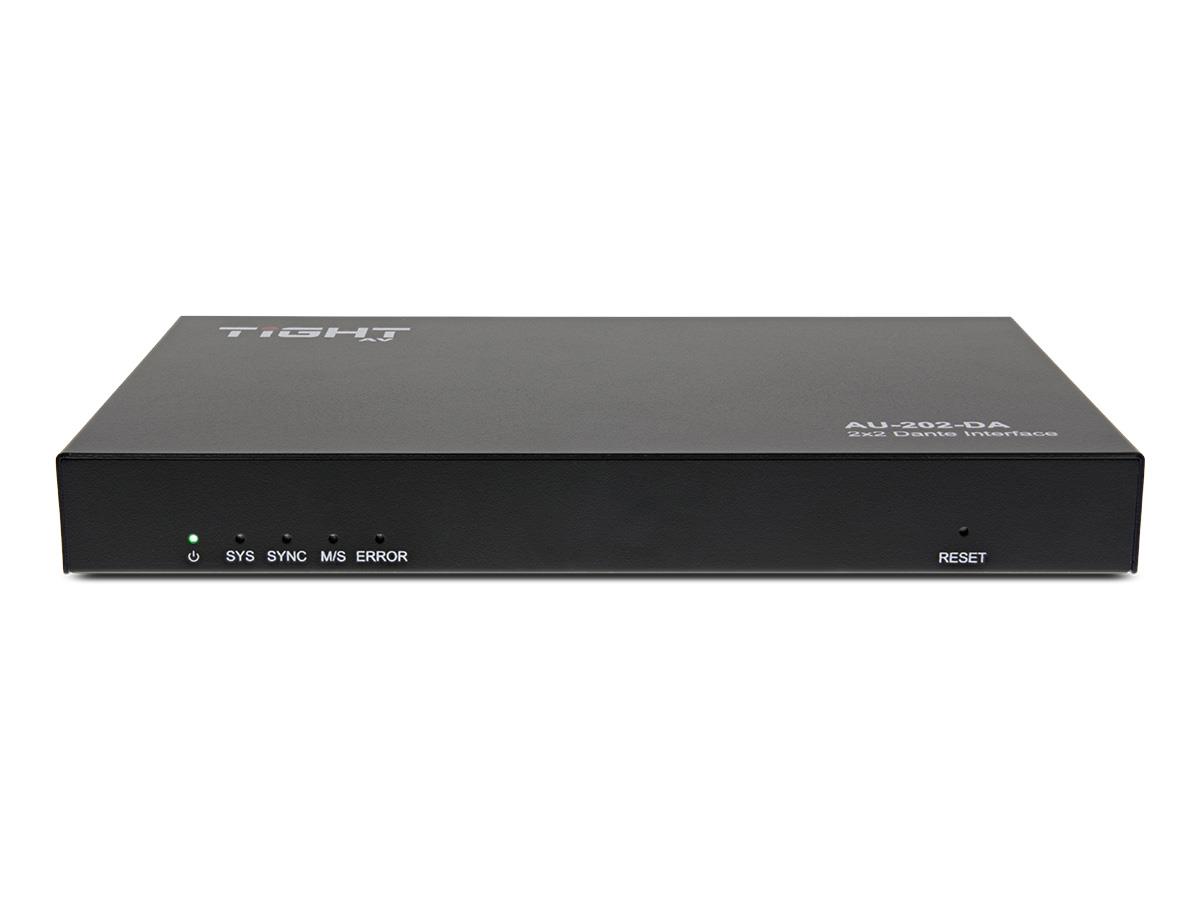

AU-202-DA | 2X2 DANTE INTERFACE WITH 2 MIC/LINE INPUTS AND 2 LINE OUTPUTS
AU-202-DA is a network audio interface allowing users to integrate up to 2x2 audio channels of Dante audio into networked AV systems. Each input features a microphone preamplifier and 48V phantom power option.
The 2x2 Dante features PoE power capability and local power. A small form factor and included mounting ears makes it easy to add Dante connectivity wherever it is needed. It can be close to the audio source or sink to eliminate the need for costly and interference-prone analog wiring.
Key features:

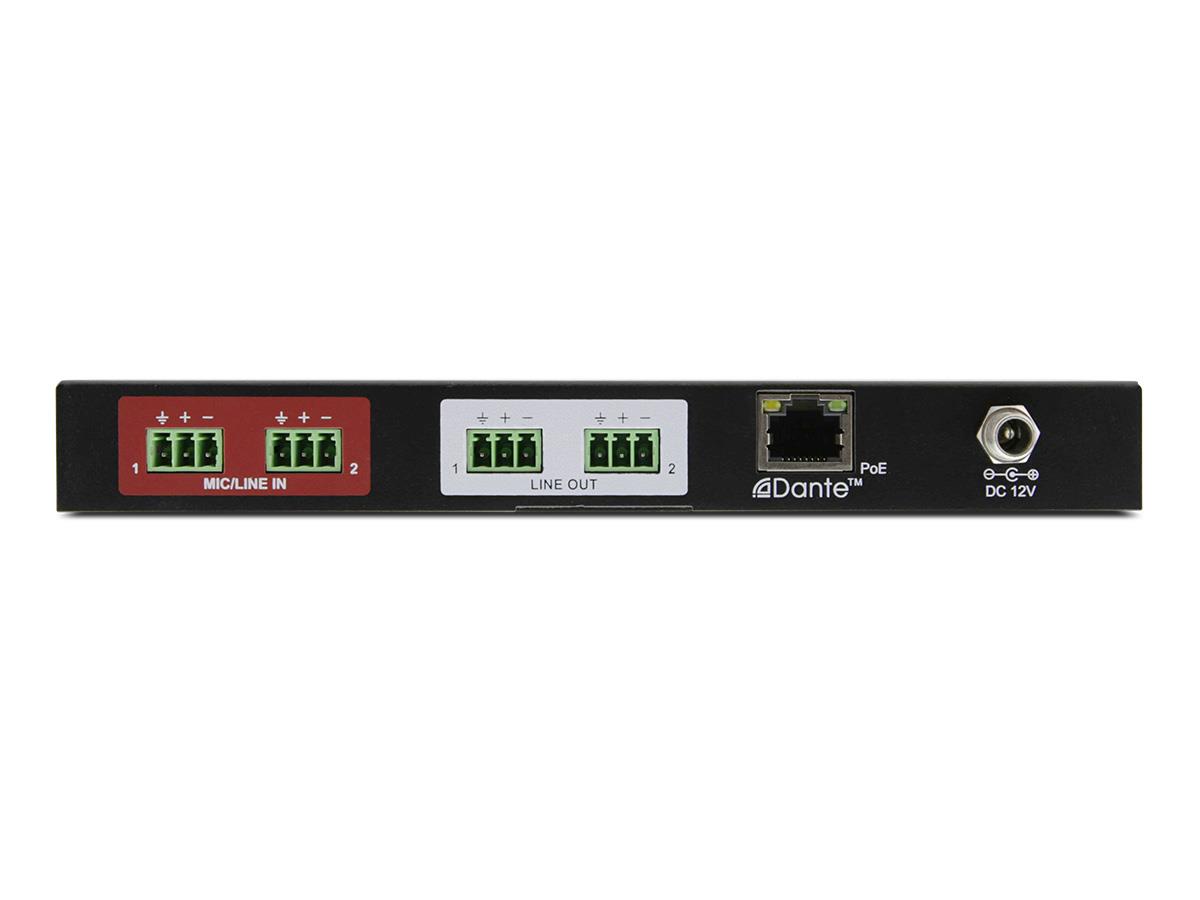

- 2 analog inputs for line/microphone level and 2 analog line level outputs.
- Supports adjusting the gain per input from 0 to +48dB.
- 48V phantom power selectable per input channel.
- PoE capable (IEEE802.3af).
- Supports 44.1k or 48k audio sample rate.
- Controlled by Dante controller and WEB-UI.
- Open API for third party control
General
- Color
- Black
Dimensions and weight
- Width
- 185 mm
- Depth
- 115 mm
- Height
- 22 mm
- Net weight
- 0.5 kg
Additional information
- Warranty
- 5 years
Packaging info
- Packaging size
- 325 x 149 x 53 mm
- Packaging weight
- 836 g
