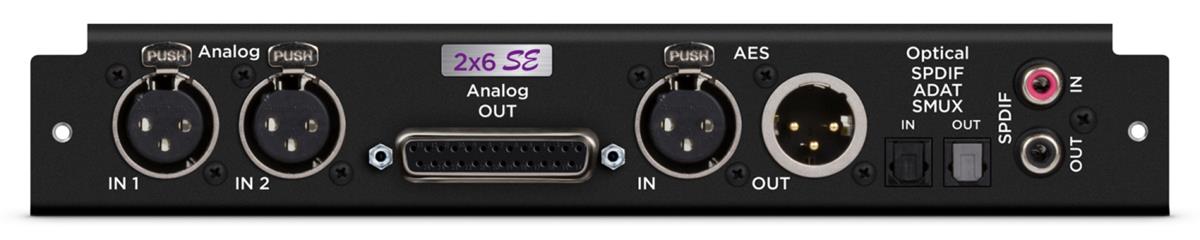

2×6 Analog I/O + 8×8 Optical + AES I/O 8 Channels of I/O simultaneously

Apogee Symphony I/O Mk II 2×6 Special Edition offers the highest quality AD/DA conversion of the Symphony series. Designed specifically for mastering engineers whose critical work demands ultimate sonic performance, 2×6 SE takes advantage of the latest advancements in digital and analog audio technology to offer inputs with 124 dB (A) of dynamic range, THD+N of -116dB and outputs with 131dB (A) dynamic range and an astonishingly low THD+N of -118dB

INPUTS

• Analog IN: 2 balanced inputs on 2 female XLR connectors
• AES IN: Stereo input on 1 female XLR connector
• *Optical IN: Supports ADAT, SMUX & S/PDIF
  • ADAT: 8 channels 44.1-48 kHz
  • SMUX: 8 channels 88.2-96 kHz
  • S/PDIF: 2 channels, up to 96 kHz
• Coax IN: 2 channels of S/PDIF, up to 192 kHz

*Dig I/O hardware switch selects AES or Optical digital I/O format

OUTPUTS

• Analog OUT: 6 balanced outputs on 1 DSUB 25-pin connector
• AES OUT: Stereo output on 1 male XLR connector
• *Optical OUT: Supports ADAT, SMUX & S/PDIF
  • ADAT: 8 channels 44.1-48 kHz
  • SMUX: 8 channels 88.2-96 kHz
  • S/PDIF: 2 channels, up to 96 kHz
• Coax OUT: 2 channels of S/PDIF, up to 192 kHz
