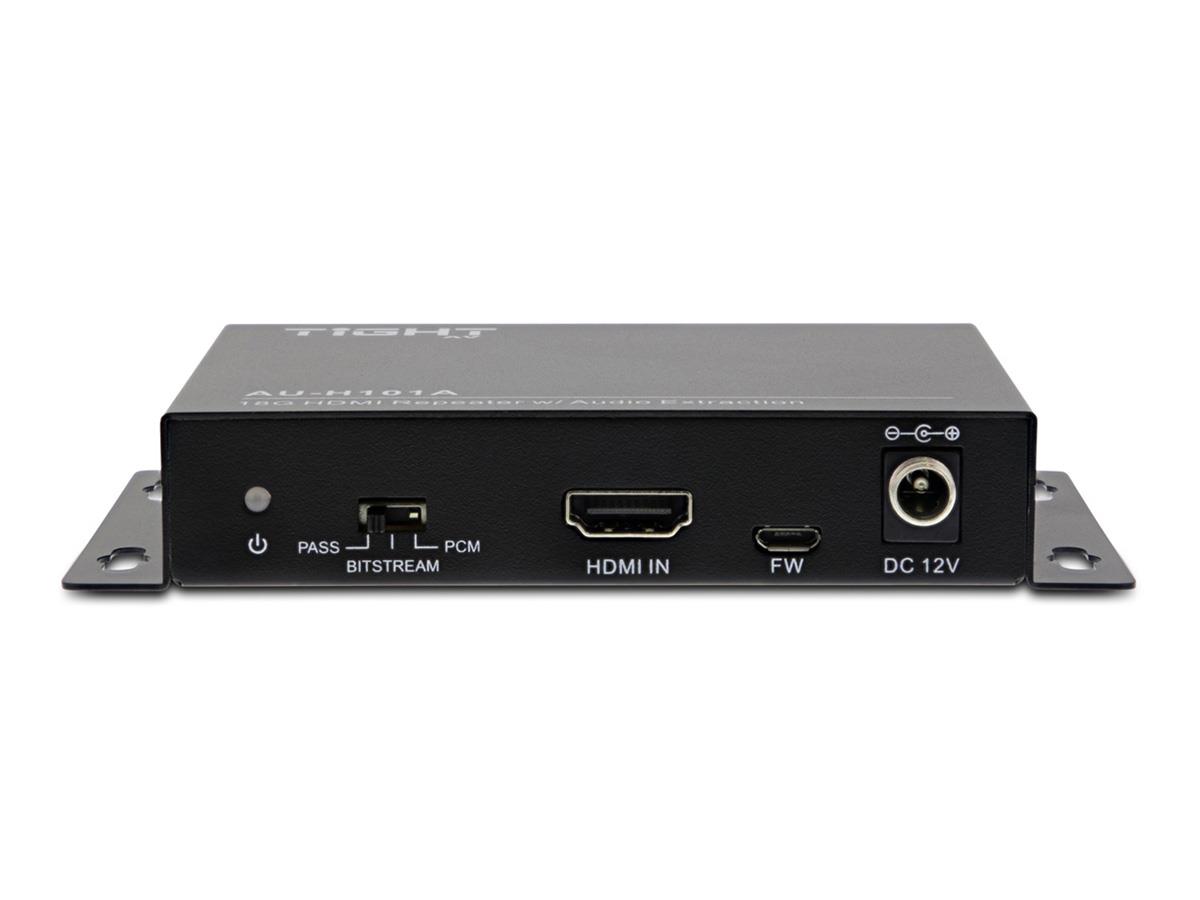

The AU-H101A is a small-size HDMI 2.0 audio de-embedder with 1 HDMI input, 1 HDMI output, and three different types of audio outputs.
It is designed to extract audio from a HDMI signal via stereo balanced L/R audio, analog RCA, and coaxial digital audio
output.
It also features a HDMI equalizer to ensure full HDMI signal integrity is maintained. The AU-H101A can compensate for poor source signals or low-quality cabling at the end of a long cable run.
EDID and CEC pass-through ensures that the source video is at the optimal resolution for the display and can be controlled by CEC from source.
Key Features:
- De-embeds analog audio and coaxial digital audio from an HDMI signal
- HDMI equalization
- Three selectable audio modes
- 4K@60Hz (4:4:4) and data rates up to 18 Gbps
- HDMI 2.0 and HDR support
- HDCP 2.2/1.4 support
- EDID and CEC pass-through
General
- Color
- Black
Dimensions and weight
- Width
- 129 mm
- Depth
- 77 mm
- Height
- 21.5 mm
- Net weight
- 0.24 kg
Additional information
- Included Accessories
- 1 x Power Adapter (12VDC, 1A), 1 x 5-pin Phoenix Connector, 4 x Plastic Cushions, 1 x User Manual
- Warranty
- 5 years
Packaging info
- Packaging size
- 202 x 147 x 71 mm
- Packaging weight
- 437 g
