For the USB-C input interface, it also supports USB 3.2 Gen2 data transfer, Gigabit LAN and 100W fast-charging.

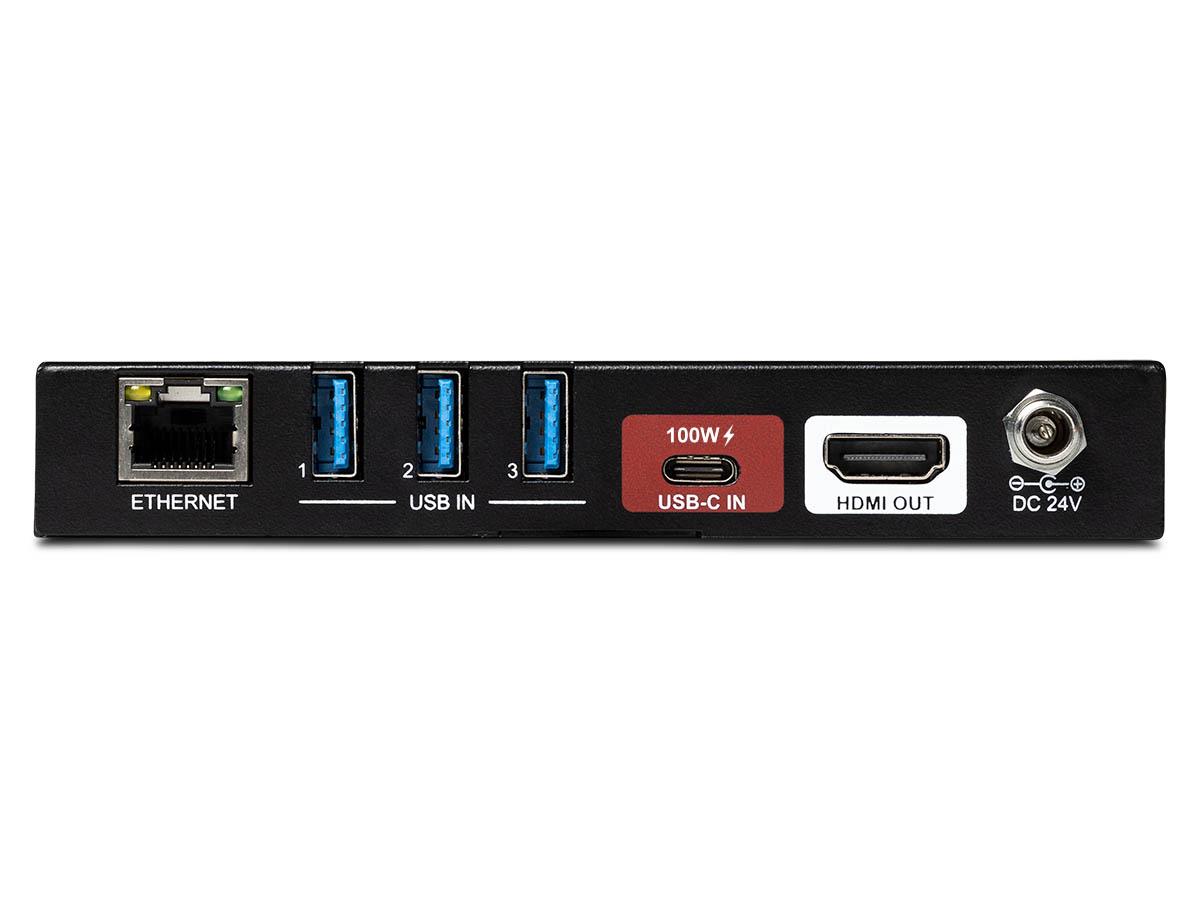

The converter includes three USB 3.2 device ports and one Ethernet Gigabit LAN port.

Features

  • Input supports DisplayPort Alt mode up to 4K@60Hz 4:4:4 using DisplayPort 1.4 (DisplayPort 1.2 is limited to 4K@30Hz 4:4:4).
  • Output supports HDMI 2.0, 4K@60Hz 4:4:4.
  • HDCP 2.3 support.
  • USB-C input supports 100W USB Power Delivery.
  • Supports USB3.2 Gen2 (up to10Gbit/s) data transfer via USB-C.
  • 3x USB 3.2 device ports for camera, keyboard and mouse.
  • Ethernet Gigabit LAN pass-through via USB-C
  • No software drivers required - Plug and Play.


Packaging info

Packaging size
230 x 210 x 65 mm
Packaging weight
2.00 kg
