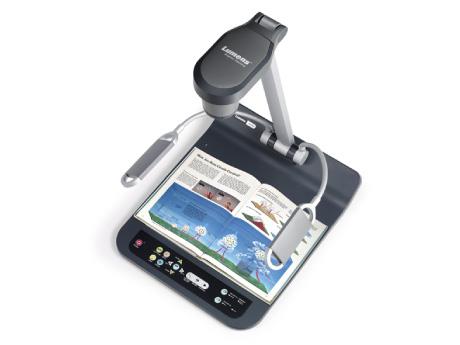

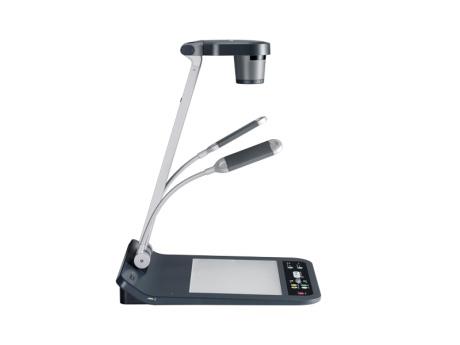

The PS752 supports HDMI input/output and it is compatible with several high definition audio/video equipment. The internal memory stores up to 240 images and is expandable with a USB flash drive (up to 4TB). With a one-touch audio/video recording function presentations are recorded without the need for a PC. A built-in backlight design achieves the multi-image display requirements.

The dual adjustable side lamp design prevents reflections. Single-button auto-tune provides the perfect image quality every time. The unique projector mode is for connecting a LCD or DLP projector to reduce the interference caused by different types of projector technology, allowing the best image quality to be delivered.

Features

  • Full HD 1080p output resolution with 30fps
  • VGA, HDMI input and output and supports HDMI pass-through
  • 20 times variable zoom ratio
  • Built-in microphone
  • One-Touch synchronous audio video recording
  • Compatible with USB flash drives, expandable to 4TB
  • Dual gooseneck side lamps for anti-reflection
  • Full sized built-in LED backlight design for X-rays, film, and slides
  • Folds down to a height of six inches (15 cm)
  • Rigid lens provides protection from abnormal operation


General

Camera type
Document camera
Color
Grey

Image specification

Max Resolution (Out)
1920x1080
Framerate
30 FPS
Digital zoom
12 x
Signal-to-noise ratio
51 dB

Functions

Programmable presets
No
Ceiling installation/Flip image
Yes 0 ̊, 180 ̊, flip, mirror
Auto framing/tracking
No

Audio specification

Built-in microphone
Yes
External microphone
No
Built-in speaker
No
External speaker
No

Connections

Video out
Composite video, HDMI
Video out
USB-B For data exchange
Video out
VGA x2
USB standard
2.0
Audio inputs
3,5mm tele
Audio outputs
3,5mm tele

Energy

Power Supply
DC External power supply

Dimensions and weight

Width
566 mm Folded
Depth
385 mm Folded
Height
152 mm Folded

Additional information

Included Accessories
Quick start guide, 4-step card, Remote control, Remote control holder, Power adapter, Power cord, USB cable (B-A), VGA cable, Audio cable, Composite video cable, Microscope adapter, 2x HDMI cables
Warranty
5 years

Packaging info

Packaging size
6 x 4 x 2 mm
Packaging weight
5.00 kg
