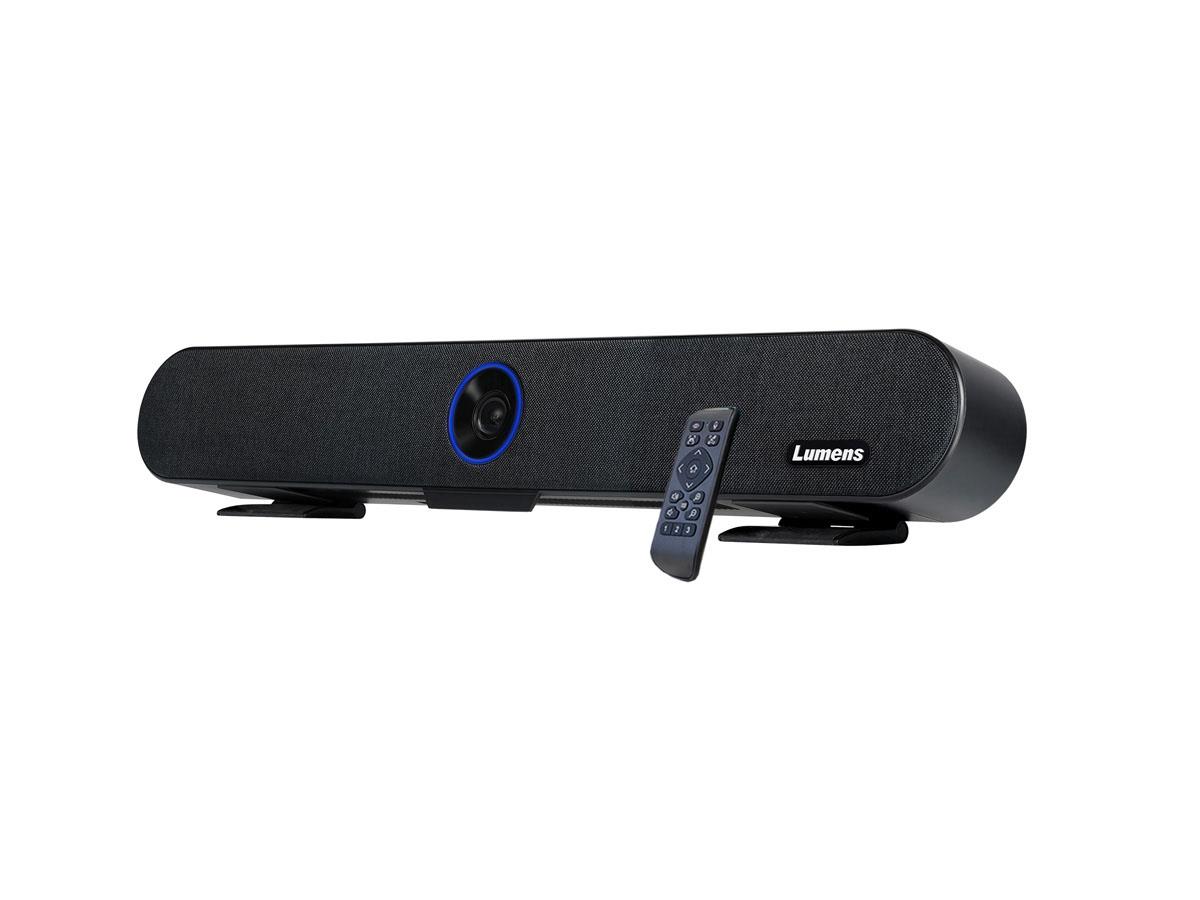

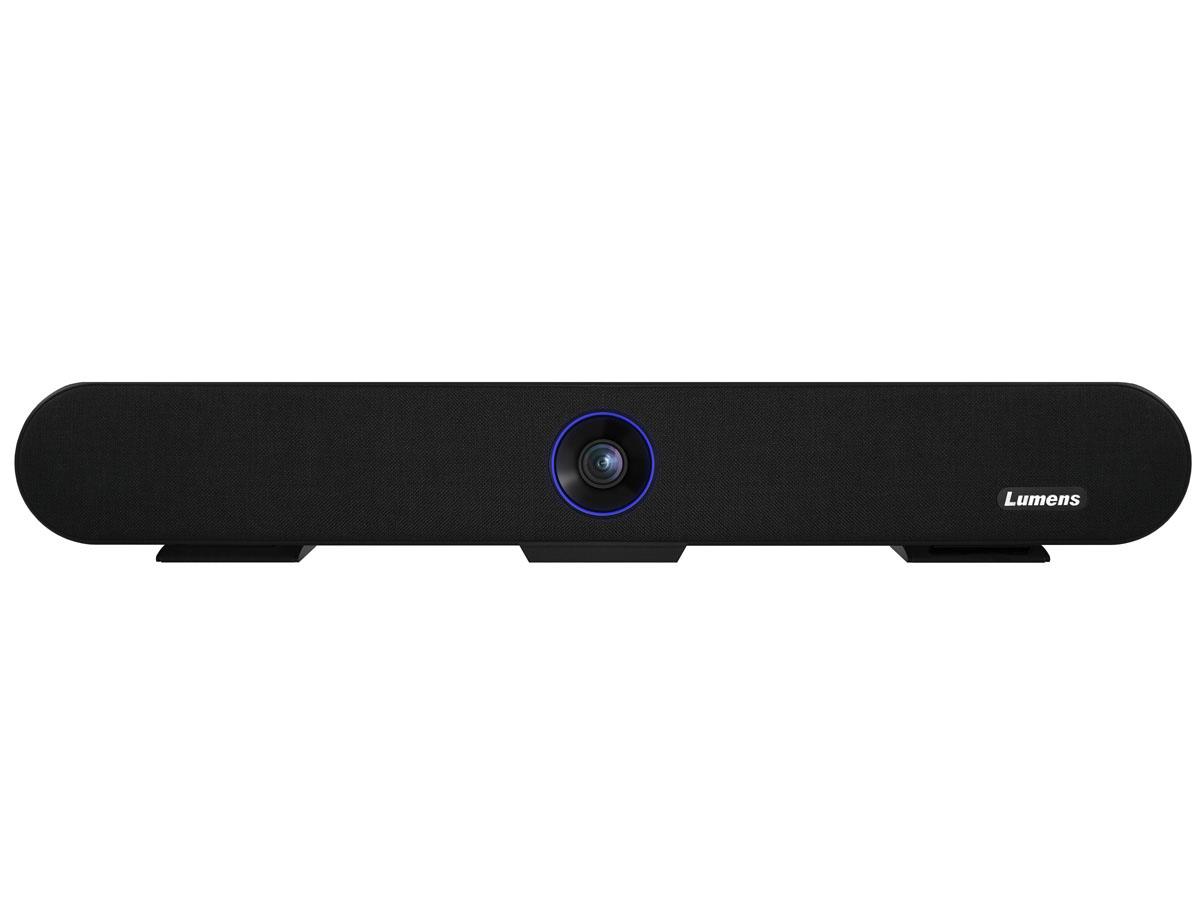

MS-10 - 4K Video Soundbar
All-in-One Video Conferencing Solution with Auto-Framing Camera

  • Complete voice and video VC system
  • 4K sensor with auto-framing
  • Designed for monitor or wall mounting (TV mounting kit included)
  • USB connectivity with Ethernet and IR control
  • 5 year warranty

All-in-One Video Conferencing Solution
Lumens MS-10 is an all-in-one VC camera, microphone, and speaker system for conferencing collaborative meetings, and unified communications. Compliant with all major platforms (including Teams, Zoom, and WebEx), MS-10 is certified to support Barco Clickshare for truly interactive meetings.

Capture Everyone with Ease
The MS-10 features sophisticated auto-framing technology: its camera intelligently identifies participants in the room and adjusts the zoom angle to incorporate every guest. With an ultra-wide 120° field of view and the ability to zoom in 4x, the camera can be used by individuals and groups in fully automatic mode. The unit is optimized to deliver superb 4K output or HD at all zoom settings.

Accurate Voice Pickup
With multiple participants in a huddle room or meeting space, capturing the clear sound is crucial for an effective video conference. MS-10's five directional microphones have echo cancellation and noise suppression to capture every participant's voice clearly. The beamforming mics comfortably pick up voices whether they are sitting directly in front of the unit or up to 5 meters away from the device.

4K UltraHD Image
Benefitting from Lumens' expertise in broadcast production, MS-10's large 4K CMOS sensor captures beautifully crisp pictures with natural skin tones. There's no need to adjust the settings: the UC Video Soundbar is designed to perform out of the box. Even in poorly lit rooms, the camera performs very well, giving remote participants a great conferencing experience.

Data Bridging
Like most webcam devices, MS-10 is connected via USB. When linked to the network using Ethernet, MS-10 also acts as a bridge to deliver Internet connectivity to the host laptop over USB. This means that the PC or Mac running the video conferencing software is no longer reliant on WiFi for streaming. Nor does the operator need to connect a separate Ethernet cable to the computer for network access – all connectivity (video, audio, control and network data) is routed thru a single USB port to the MS-10. This approach saves time cabling the laptop, reduces the risk of cable tangle, delivers a solid data connection and provides reliable two-way video communication.

**One-Touch Mute Video or Audio
**With MS-10 remote control and color-changing status light, you can easily control volume, pan, tilt, zoom, and mute the audio and video. You can also protect your team's privacy with one quick touch.



General

Camera type
Videobar
Color
Black
Certifications
USB BYOD

Image specification

Max Resolution (Out)
3840x2160
Digital zoom
4 x
Field of view (horizontal)
110 °
Min. working distance
500 mm

Functions

Programmable presets
Yes 128x (USB command), 3x (Remote)
Auto framing/tracking
Yes

Audio specification

Built-in microphone
Yes 5x Mic elements with Echo Cancellation and Noise Suppression
External microphone
No
Audio pickup range
5 m
Built-in speaker
Yes 1x 20W, Speaker Element + 1x Passive Diaphragm. Max SPL 95±3dB 0.5m/5W
External speaker
No

Connections

Video out
USB-B, USB-C
USB standard
2.0, 3.0

Energy

Power Supply
12V + / - 20% DC in (external power supply)

Dimensions and weight

Width
597 mm
Depth
90 mm
Height
75 mm
Net weight
1.7 kg

Additional information

Warranty
5 years

Packaging info

Packaging size
730 x 220 x 230 mm
Packaging weight
5.00 kg
