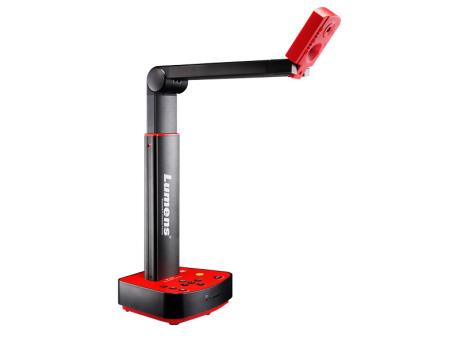

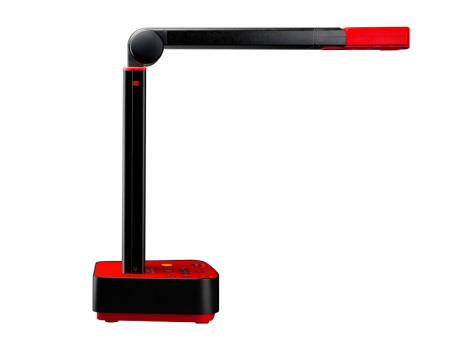

The DC-F80 Ladibug™ document camera comes with impressive 4K 30fps image resolution quality with 30x total zoom. It can demonstrate detailed images of any objects in real-time. The shooting area is up to A3 paper size with three brightness levels LED light enhancing content readability. The DC-F80 makes teaching more interactive and powerful.

Features

  • Impressive 4K 30fps image quality
  • 2-in-1 solution with document camera and webcam
  • Image rotation 0° / 90° / 180° / 270° / Flip / Mirror
  • LED light with three brightness levels

Versatile Imaging
The Lumens DC-F80 4K document camera is a high-performance, portable visualizer. It features a professional imaging sensor, 30x zoom, and HDMI output. Able to capture moving images with sound at 30fps, the DC-F80 is an excellent document camera. Supporting resolutions from XGA to UltraHD, the camera can be used as a visualizer, or webcam in USB mode. The flexible arm allows the presenter, lecturer, or teacher to both reproduce documents and interact with students (local and remote) all in the same session.

Easy to Use
Buttons on the unit give users instant access to key controls. These allow the user to rotate or flip the on-screen image, adjust the brightness, and freeze the picture on screen. The camera can zoom in an out on any part of the document using the navigation keys, giving the demonstrator excellent control over the presentation.

Interactive Presentations
With the DC-F80 connected by USB to your PC, Mac, users can manage all the camera's settings and control the device from their computer. By installing the Lumens Ladibug software, users can access advanced features which include annotating, masking and cropping images, and sharing saved files. Ladibug software is easy to use and is a fantastic way of bringing real-time demonstrations to life.

Excellent Image Control
DC-F80 enables presenters to demonstrate detailed images of any objects in real-time. The flexibility of the mount means that the camera can be positioned close to a document, or focus on an object at an angle. The auto-tune button automatically optimizes the camera to produce sharp, color balanced, and bright images that look great on computer monitors, projectors, and large format displays.

USB Connectivity
When connected by USB, the Lumens DC-F80 is automatically recognized by all popular video conferencing software. The built-in microphone makes it a complete audio-visual device that can be at the heart of your Zoom, Teams, Skype, or WebEx sessions.



General

Camera type
Document camera
Color
Red

Image specification

Max Resolution (Out)
3840x2160
Framerate
30 FPS
Optical zoom
0 x 3,4x Mechanical zoom
Min. working distance
100 mm

Functions

Programmable presets
No
Ceiling installation/Flip image
Yes 0° / 90° / 180° / 270° / Flip / Mirror
Auto framing/tracking
No

Audio specification

Built-in microphone
Yes
External microphone
No
Built-in speaker
No
External speaker
No

Connections

Video out
HDMI, USB-B
USB standard
2.0

Energy

Power Supply
USB Bus Power
Consumption Max
5 W

Dimensions and weight

Width
137 mm Folded
Depth
270 mm Folded
Height
140 mm Folded
Net weight
1.2 kg

Additional information

Included Accessories
USB Cable
Warranty
5 years

Packaging info

Packaging size
306 x 140 x 373 mm
Packaging weight
3.00 kg
