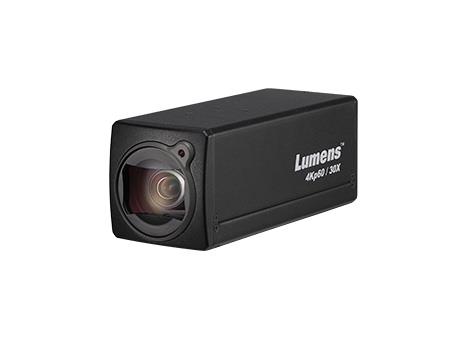

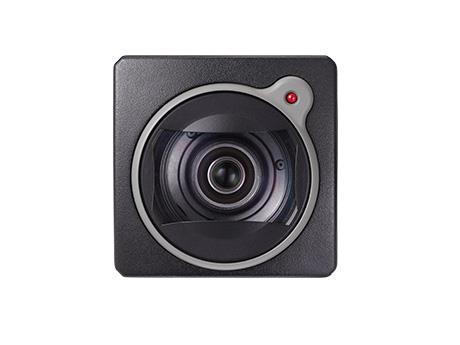

The VC-BC701P is a 4K(3840x2160) 60fps and 30x optical zoom High Definition block camera. The VC-BC701P contains HDMI 2.0 and Ethernet output in a compact design and support triple stream and PoE, which is ideal for house of worship, education, sports production, broadcast television, news/weather-casts, corporate video, courtroom capture, live streaming, and a variety of ProAV applications.

Features

  • 4K 60fps UHD
  • 30x optical zoom, 68 degrees horizontal viewing angle
  • HDMI and Ethernet video outputs
  • Triple stream video, support HEVC(H.265) / H.264 format
  • Supports RTSP / RTMP / RTMPS / MPEG-TS / SRT streaming protocol
  • Supports PoE (Power over Ethernet)
  • Supports Line / MIC audio input


General

Camera type
Fixed boxcamera
Color
Black

Image specification

Max Resolution (Out)
3840x2160
Framerate
60 FPS
Optical zoom
30 x
Digital zoom
12 x
Field of view (horizontal)
68 °
Signal-to-noise ratio
50 dB
Min. illumination
0.1 Lux (F1.6, 50IRE, 30fps)
Min. working distance
1,500 mm

Functions

Programmable presets
Yes ePTZ, 256x
Ceiling installation/Flip image
Yes
Auto framing/tracking
No

Audio specification

Built-in microphone
No
External microphone
Yes Line In / Mic In via 3,5mm
Built-in speaker
No
External speaker
No

Connections

Video out
HDMI 2160p 59.94
Video out
IP stream (RJ-45) HEVC(H.265) 2160p 60fps, H.264 1080p 60fps, H.264 640x360 30fps
Audio inputs
3,5mm tele Line In / Mic In
Audio outputs
3,5mm tele

Energy

Power Supply
12V DC max 9W or PoE (IEEE802.3af) max 10W
Consumption Max
10 W

Dimensions and weight

Width
67 mm
Depth
170 mm
Height
67 mm
Net weight
1 kg

Additional information

Included Accessories
Power cord, Power adapter
Warranty
5 years

Packaging info

Packaging size
50 x 100 x 100 mm
Packaging weight
1,000 g
