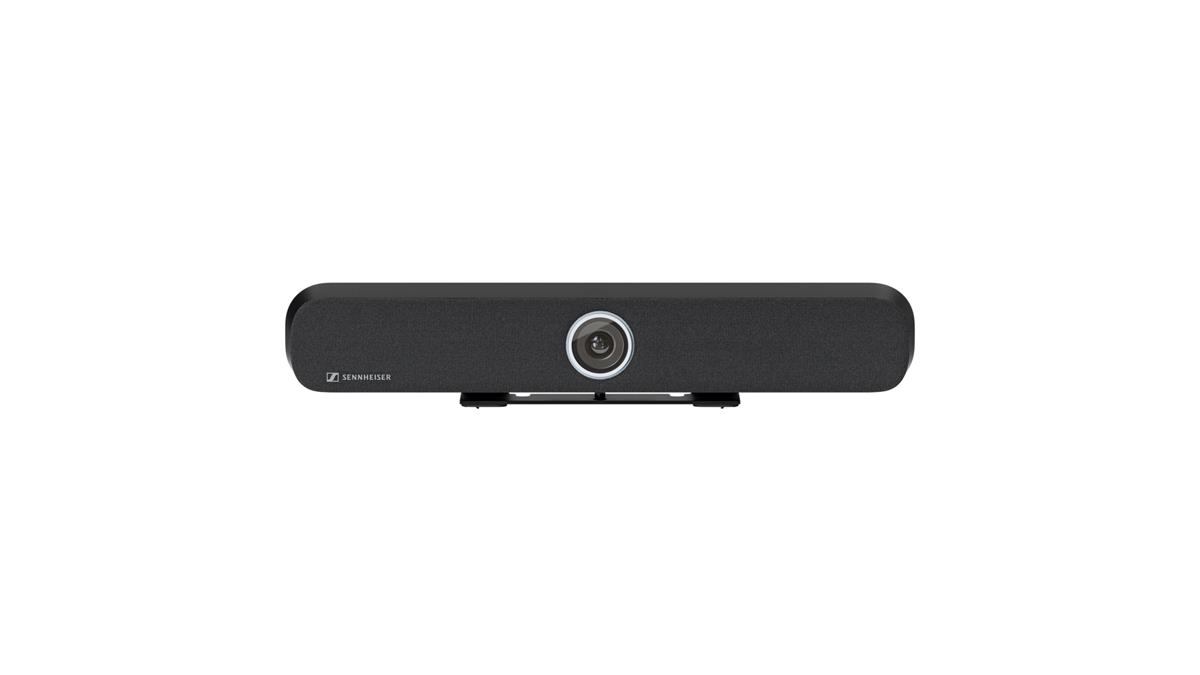

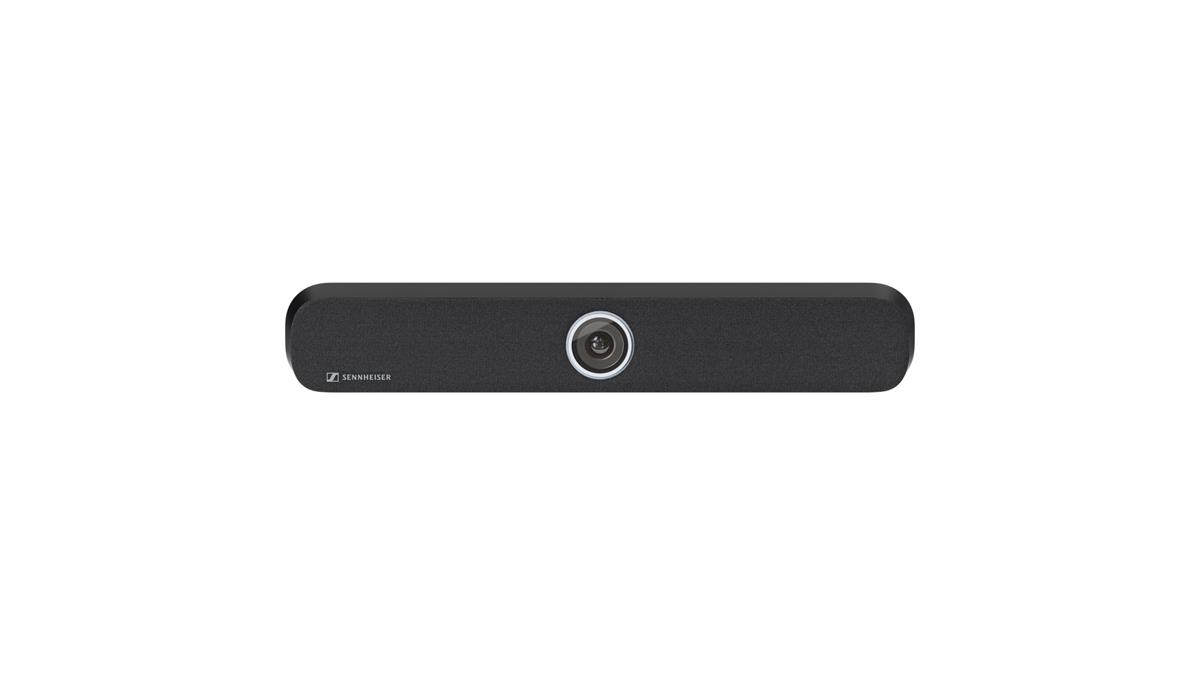

The TC (TeamConnect) Bar S features 4 microphones and 2 speakers to deliver Trusted Sennheiser Audio Quality to every meeting. The TC Bar S is a true problem solver with benefits like easy setup, brand agnostic integration, easy management & control, high video quality, security and sustainability.
Features

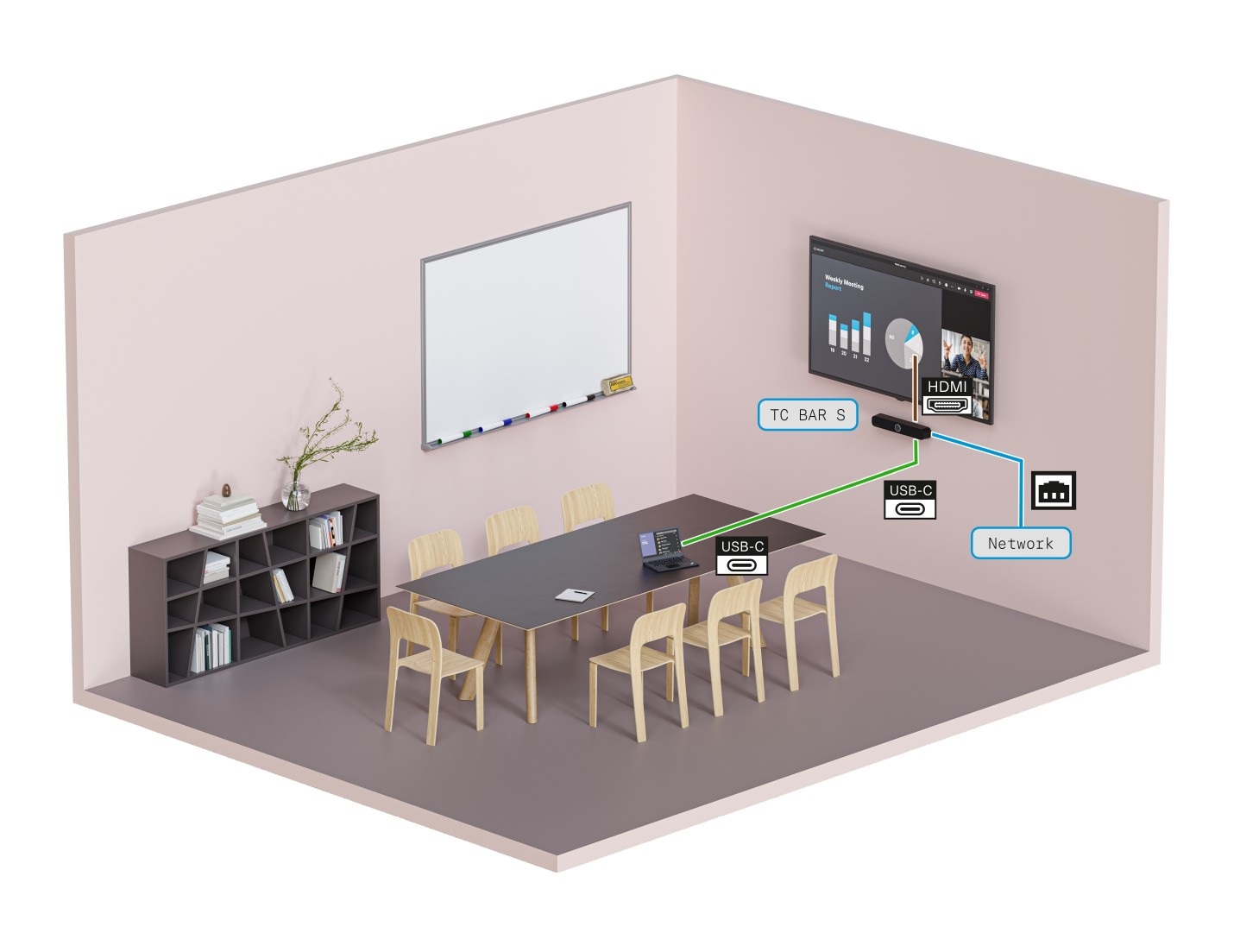

- Plug and Play Device: Quick start via USB cable
- Integrated Beamforming Technology: Freedom of movement and seamless transition among presenters
- Flexible Extensions: Using Dante for adding extension mics and/or a 2nd external USB camera
- High Video Quality: 4K Ultra HD camera equipped with advanced AI features
- Full-Range Stereo Speakers: Natural speech and outstanding intelligibility
- Built-In DSP: Automatically optimizes room acoustics
- Multiple Mounting Options: Wall Mount, VESA Mount, Tabletop or Freestanding
- Autoframing and Person Tiling: Features to clearly see everyone in the room

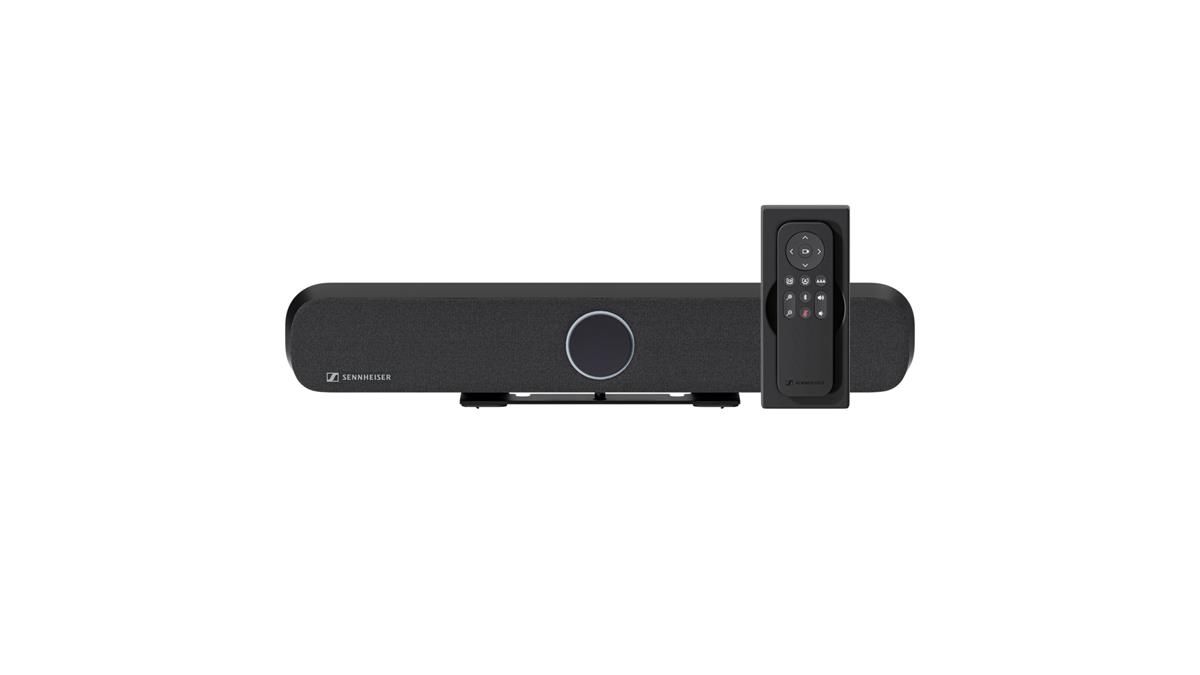

- Control Management: Full remote-control access via Sennheiser Control Cockpit
- Brand Agnostic Integration: Certifications pending for 3rd party media control systems (Barco, Crestron, Extron, Q-Sys) and platforms (Microsoft Teams, Zoom, Tencent, etc.)
- Advanced Security Features: Encrypted control communication and password protected by default for secure content transmission
Recommended usage
- TC Bar S is suitable for small rooms (3m x 4.5m), for up to 7 people
- TC Bar M is suitable for Small to medium-sized rooms (4.5m x 6m), for up to 11 people
General
- Camera type
- Videobar
- Certifications
- Microsoft Teams, USB BYOD, Zoom
Image specification
- Max Resolution (Out)
- 3840x2160
- Framerate
- 30 FPS
- Digital zoom
- 3 x
- Field of view (horizontal)
- 115 ° 120° Diagonal
Functions
- Programmable presets
- Yes
- Auto framing/tracking
- Yes Auto/Group framing, Person tiling (max 9 persons/tiles)
Audio specification
- Built-in microphone
- Yes 4x MEMS, Beamforming Array
- External microphone
- Yes 2ch Dante in For connecting external microphones. For example Sennheiser SpeechLine series boundary microphones and recievers.
- Audio pickup range
- 4 m Ø
- Built-in speaker
- Yes 2x 2" with passive radiator, 10W RMS, Max SPL 80dB
Connections
- Video out
- HDMI v 2.0. Videotransfer to display requires DisplayLink driver in user PC.
- USB standard
- 3.1 Gen 1
- Audio inputs
- Bluetooth Vers 5.1
- Audio inputs
- Dante (RJ-45) 2ch Dante in , for connecting external microphones.
- Audio outputs
- Dante (RJ-45) 2ch Dante out
Energy
- Power Supply
- External power supply, in 100-240V 50/60Hz, out 15V DC max. 2 A or PoE+ (IEEE 802.3at Type 2)
Dimensions and weight
- Width
- 450 mm
- Depth
- 71 mm
- Height
- 76 mm
- Net weight
- 1.5 kg
Additional information
- Included Accessories
- Videobar, Mounting Bracket, Drilling Template, Power Supply, Power Cord, Remote Control, 2x AAA Batteries, Bracket & storage, Magnetic Lens Cap, HDMI cable, USB-C Cable 3m, Screws, Quick Guide, Safety Guide
- Warranty
- 3 years
