Feature Highlights:
- VGA og HDMI inputs med mulighed for autoswitching
- HDMI Monitor out
- Balanceret og ubalanceret audio input.
- POE forsyning
- Rækkevidde op til 100m
- IR og RS232 udgang
- Lokale playlister til stillbilleder.
- Skærmstyring fra enheden
- Point to point kompabilitet
- HDMI Audio 8 kanals PCM
- Latency 17ms ved HD
- Latency 34ms ved 4K30
- Analog Audio 2 kanals Stereo
- HDCP 2.2 kompabilitet
- KVM via USB-B
- 4K30 over standard CAT5E
Specifikationer:
- Max opløsning 4096x2160p 30Hz,  ,
- Color space 4:2:0 4K30 og 4:2:2 HD
- Strømforsyning 12V DC 2A
- Dimensioner cm - 2.67 x 20.04 x 13.8
- Vægt 660g
- For vægmontering kræves beslagkit NMX-ACC-N9101
- Båndbredde ca. 160Mbps
General
- Modell series
- N2300
- Extender type
- Transmitter (Tx)
- Technology
- JPEG 2000
Video specifications
- Max supported resolution
- 3840x2160
- Refresh rate
- 30 Hz
- Chroma subsampling (4K)
- 4:2:0

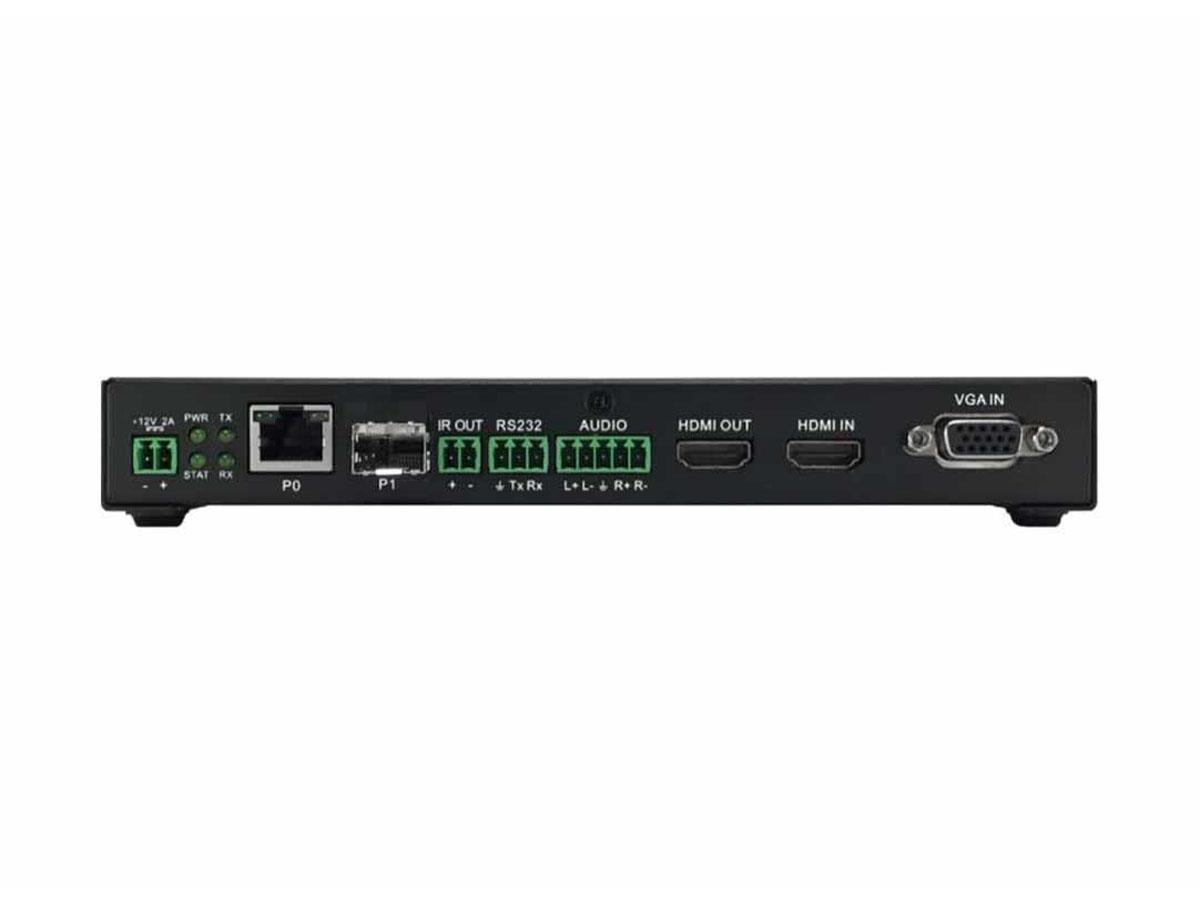

Connections
- Video in
- HDMI, VGA
- Video out
- HDMI Pass-through
- Video out
- IP stream (RJ-45) 10/100/1000 Mbps auto-sensing
- Video out
- SFP Fiber IP Stream 1-Gbps SFP port (SFP fiber transceiver or direct attach cable not included)
- Audio inputs
- Euroblock line Balance/Unbalanced analogue stereo (L/R)
- Control
- Ethernet/IP (RJ-45), IR cable connection, RS-232
Communication
- Latency
- 17 ms at 1920x1080 60 fps and lower resolutions, 34-ms at 4K 30 fps
- Switch Data Rate
- 1GbE
Energy
- Power Supply
- PoE o IEEE 802.3af Class 3, or 12 V @ 2.0 Amp DC; 100-240 Volts AC power supply; optional NMX-ACC-N9312 (FGN9312)
Dimensions and weight
- Width
- 200.4 mm
- Depth
- 138 mm
- Height
- 26.7 mm
- Net weight
- 0.66 kg
Additional information
- Installation
- 19" Rack, 1U With optional rackadapter
- Installation
- Freestanding/Shelf, Wallmount
Packaging info
- Packaging size
- 260 x 160 x 40 mm
- Packaging weight
- 840 g
