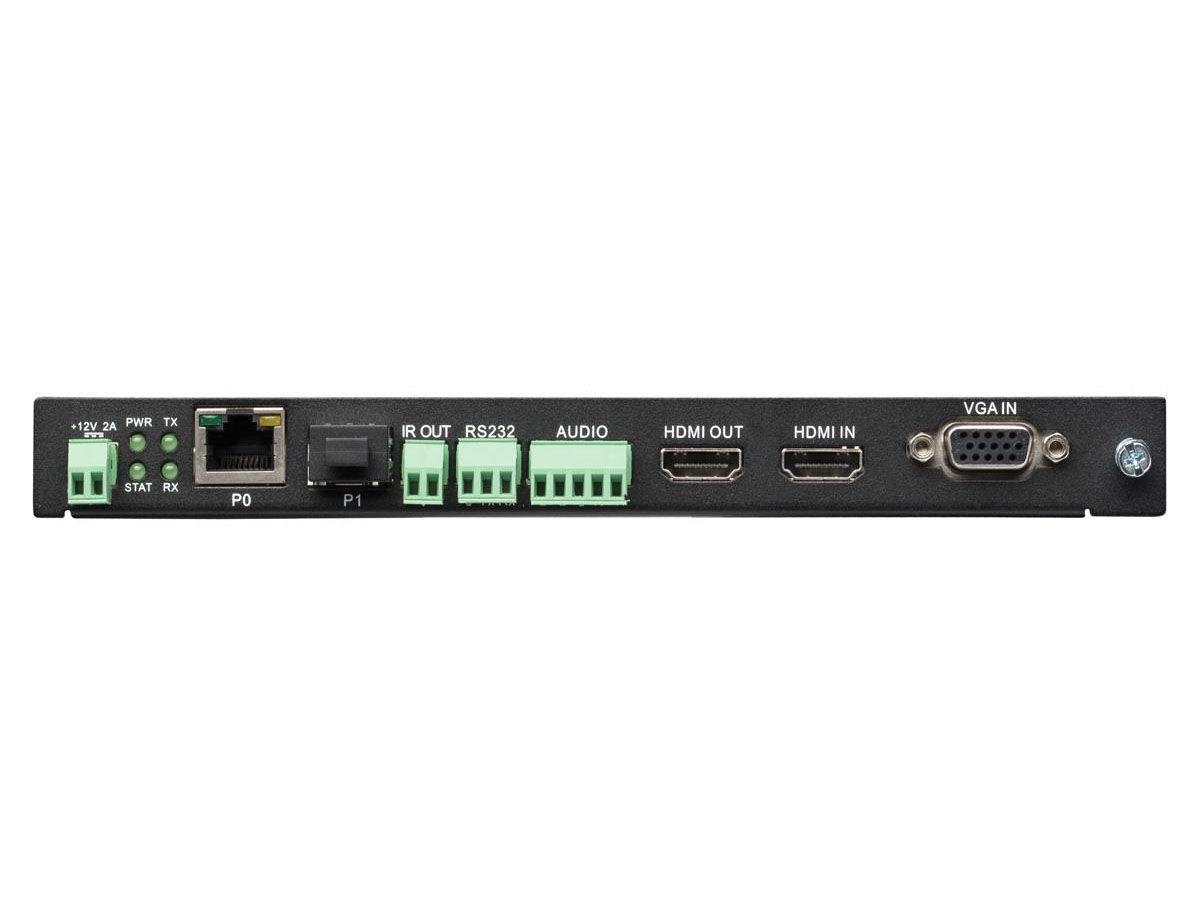

The NMX-ENC-N2312 Encoder and NMX-DEC-N2322 Decoder provide a flexible, feature-rich, and simple-to-deploy Digital Media Distribution and Switching solution that can be used in 4K applications with resolutions up to 4096x2160, with support for HDCP 2.2. This motion-based wavelet codec solution delivers video with nearly imperceptible latency at an incredibly low 200 Mb/s bandwidth allowing 4K distribution over standard gigabit Ethernet networks.

Any source can be sent to one or more displays by routing through layer-2 / layer-3 switches utilizing standard Cat5e cable. The NMX-ENC-N2312 includes standard features like input scaling, bi-directional serial, IR, embedded 7.1 audio, and KVMover- IP extension. It also comes in a card version compatible with SVSI's N9206 card cage for high-density applications.

Features

• Design Flexibility — Start as small as 1x1 and grow the system in increments of single sources and devices by simply adding additional encoders and decoders
• Power Over Ethernet (POE) — eliminates requirement for local power supply and speeds installation. Units can still be powered locally from 12VDC allowing for easy rack-mountable, highdensity installations
• Advanced Security including SSL/TLS and HTTPS – Satisfies enterprise network security requirements.
• Infrared (IR) — Emitter connection allows control of IR-only display devices
• Fast Install — With Phoenix connectors for Power, IR, RS232 serial, and analog audio interfaces
• Balanced and Unbalanced Audio — Embedded 7.1 digital audio or balanced/unbalanced analog audio
• Pass Through HDMI — allows easy installation with local display such as desktop PC applicaitons
• Multiple Connection Options — RJ-45 and SFP network connectors and HDMI video connections
• KVM — Single USB-B for KVM applications
• Native NetLinx — NetLinx Studio will easily recognize the device
