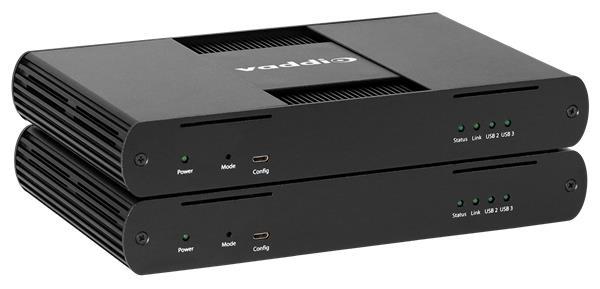

The Vaddio USB 3 Extenders enable you to extend USB 3.1 beyond the standard 3m cable limit for USB 3.1 peripheral devices (like a camera or other av source). This extender system is composed of two individual units, the Local Extender and the Remote Extender.
Key Features:
• Up to 100 m of extension when directly connected over CAT 6a/7 cable
• USB 3.1 Gen 1 data rate up to 5Gbps
• Supports USB 3.1 Gen 1, USB 2.0, and USB 1.1
• Supports up to four remote USB devices simultaneously at full bandwidth (5Gbps)
• True plug and play; no software drivers required
• Works with all major operating systems: Windows®, macOS™, Linux® and Chrome OS™
• 100/1000 Ethernet channel; LAN pass-through
In the box:

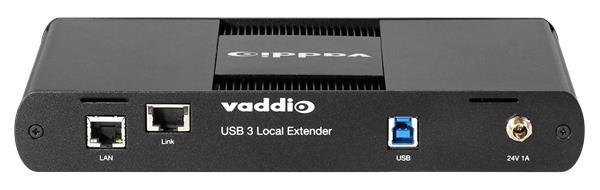

• USB 3 Local (Rx) Extender unit
• USB 3 Remote (Tx) Extender unit
• Local Extender 24V, 1A power supply with AC cord set(s)
• Remote Extender 24V, 2.71A power supply with AC cord set(s)
• USB 3.1 Gen 1 cable, 1.8 m
• Quick-Start Guide
General
- Extender type
- Transmitter & reciever kit
- Technology
- TP/CAT
- Range (max)
- 100 m Cat 6a/7 cable
Features
- USB standard
- 1.1, 2.0, 3.0, 3.1 Gen 1
- USB/Data connection from
- USB-B x1
- USB/Data connection to
- USB-A x4
Energy
- Power Supply
- 24V DC External Power Supply
Measurements and weight
- Width
- 231.9 mm
- Depth
- 136.9 mm
- Height
- 35.1 mm
- Net weight
- 2.11 kg
Additional information
- Application
- Freestanding/Shelf
- Included Accessories
- USB 3 Local (Rx) Extender unit, USB 3 Remote (Tx) Extender unit, Local Extender 24V, 1A power supply with AC cord set(s), Remote Extender 24V, 2.71A power supply with AC cord set(s), USB 3.1 Gen 1 cable 1.8 m
- Warranty
- 3 years
Packaging info
- Packaging size
- 215 x 250 x 185 mm
- Packaging weight
- 3.50 kg
