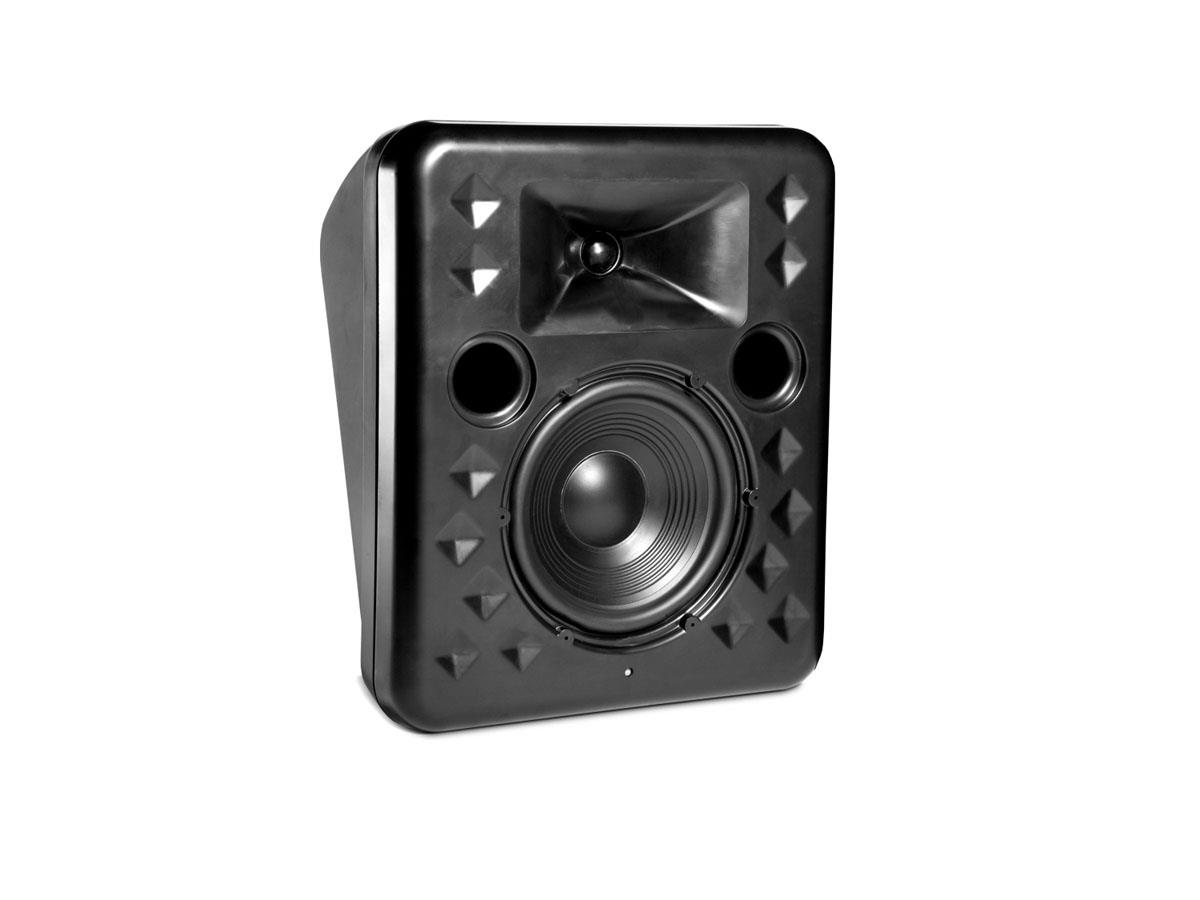

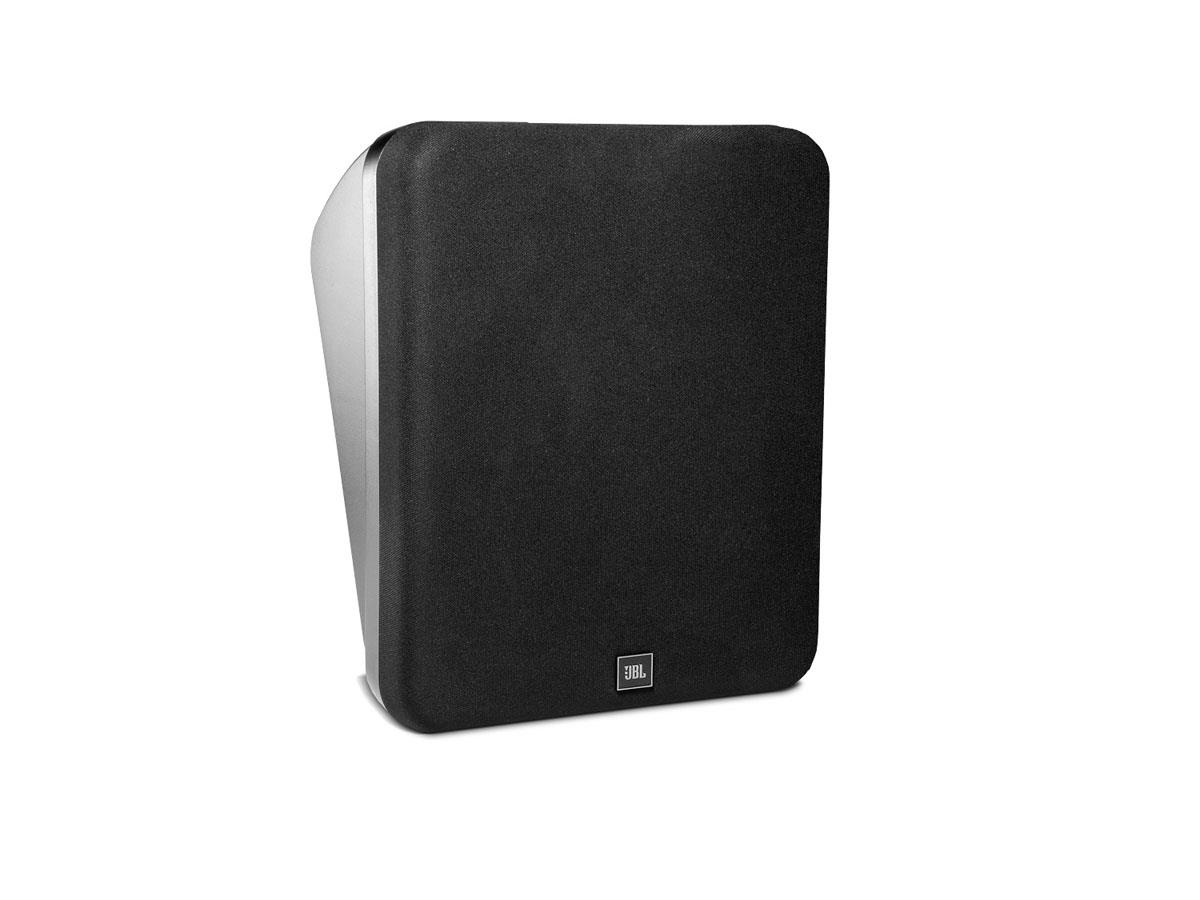

The 8320 Cinema Surround Speaker offers high power handling, high sensitivity, and extended bass response in a very compact enclosure. The twoway 8320’s reliability and performance features position it as the ideal low cost, compact surround for the extended dynamic range required by digital sound formats.

Features

  • 50 Hz to 20 kHz Frequency Range
  • High Sensitivity, 91 dB SPL, 1 W, 1 m (3.3 ft)
  • High Power Handling Capability: 150 watts continuous pink noise
  • Internal Thermomaster® technology allows for unprecedented high frequency power in a compact molded enclosure.
  • Convenient mounting design uses JBL QuickMount™, Omnimount® or APC Multimount brackets
  • Special cabinet shape incorporates 20° angled front baffle
  • SMPTE/ISO2969 Curve X high frequency de-emphasis
  • Lightweight, rigid molded enclosure
  • Input terminals located on top of cabinet for quick access
  • Uniform horizontal and vertical coverage
  • THX® Approved


General

Model series
Surround
Application
Surround
Active/Passive
Passive
Color
Black

Speaker drivers

LF
8 "

Packaging info (2 pcs)

Packaging size
50 x 51 x 84 mm
Packaging weight
12.25 kg
