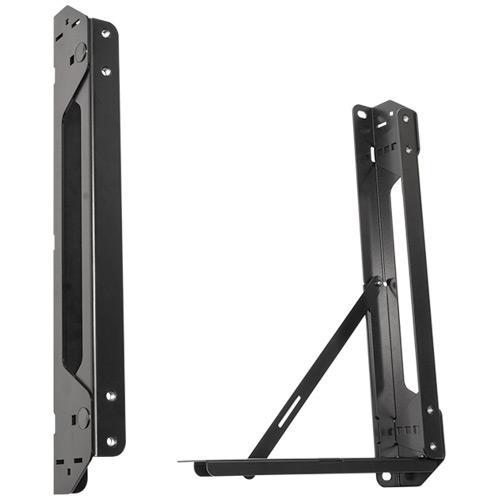

For digital signage applications, many installers want to mount the content generating DMP or CPU near the display. Fusion mounts sit too close to the wall to leave room for larger CPUs. Installers want an option to extend the very popular Fusion mount further from the wall to give space to mount other devices.
Key Features
- Adds 76 - 127 mm to the space behind the Fusion mount adjustable in 6,3mm increments.
- Matches the weight capacity of the Fusion mount it supports, up to 113kg.
- Holds a CPU or other components on the configurable shelf up to 13,6kg.

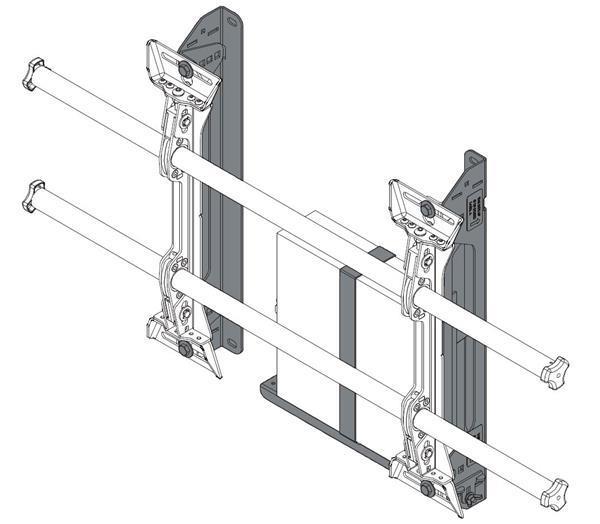

- Shelf can be located between the Fusion upright brackets or on the outside of the uprights.
- Maintains the flexibility of independent Fusion upright mounting.
- Tool-less CPU/shelf removal for maintenance.
- 1067 mm double-sided hook & loop strap included to secure CPU.
- TAA Compliant
General
- Color
- Black
- Lockable
- No
Measurements and weight
- Max weight capacity
- 13.6 kg
- Width
- 457 mm
- Height
- 470 mm
- Depth
- 76 mm
Additional information
- Warranty
- 10 years
Packaging info
- Packaging size
- 525 x 258 x 101 mm
- Packaging weight
- 4.16 kg
