Product information "E200 Connection unit Pass/Alarm

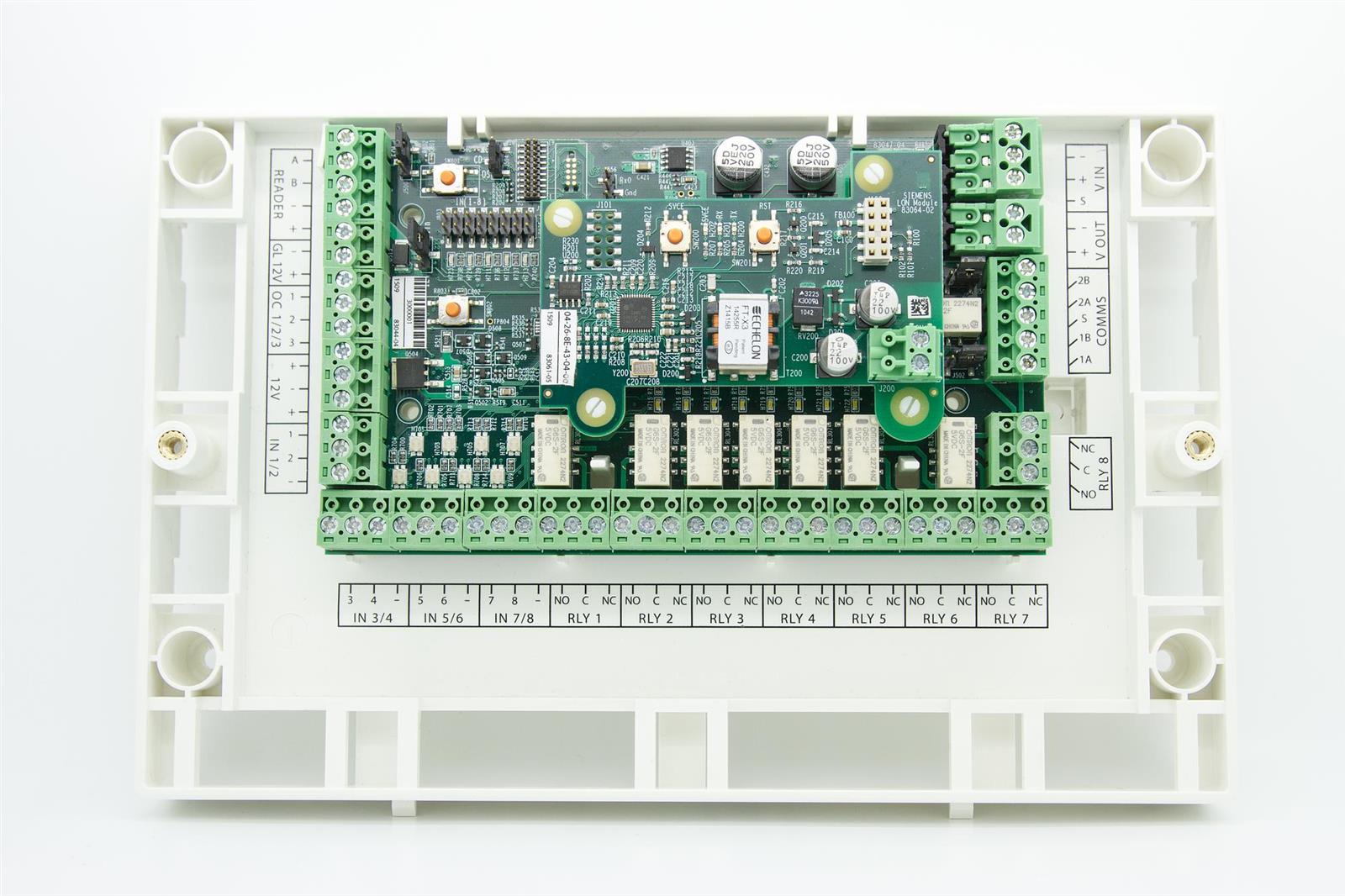

The E200 is used for the installation of alarms and access control. The E200 unit has 8 inputs, 8 outputs and inputs for card readers and keypads. The inputs can be set for a double-balanced alarm loop or a power loop for direct connection of glass break or fire detectors. The outputs can be freely programmed for different control functions. Delivers fused local 12V or supply voltage. The E200 is supported from Omnis version 4.1 SP7 and later. If you want to use all 8 outputs instead of only 4, you need Omnis version 6.2 or later. The E200 supports our popular Mifare VRxxS-MF card readers via the RS485 interface. The E200 also has a clock/data and Wiegand interface.
- Extended text
- E200 Door Controller
- Connection
- Wired
General
- Color
- White
Dimensions and weight
- Width
- 239 mm
- Depth
- 53 mm
- Height
- 156 mm
- Net weight
- 630 g
Additional information
- Warranty
- 3 years
