Breakthrough PCIe® 5.0
performance
PCIe 5.0 Performance

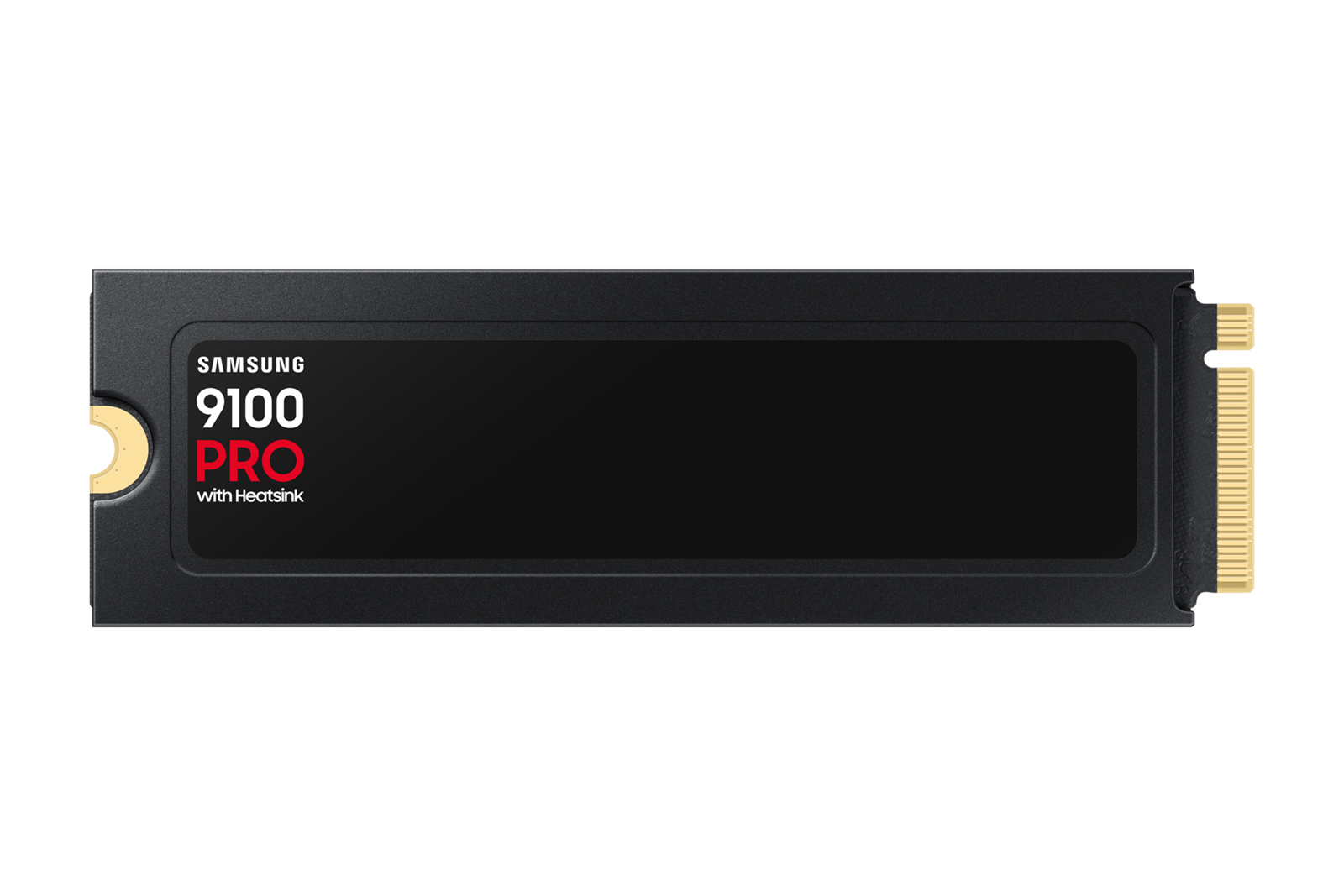

Push PCIe® 5.0 performance
to the max. 9100 PRO achieves
lightning-fast sequential
read/write speeds up to
14,800/13,400 MB/s, two
times faster than 990 PRO.
Leave Gen4 limits behind with
random read/write speeds up
to 2,200K/2,600K IOPS, only
possible by Gen5.
General
- Capacity
- 4 TB
- Usage
- PC/Game console
- Device type
- SSD
- Form factor
- M.2 NVMe
- Memory Type
- V-NAND TLC
- Power Connector
- M.2
- Interface
- PCI Express 5.0
- MTBF
- 1,500,000 h
- Encryption
- 256-bit AES
- Max 4KB random read
- 2,200,000 IOPS
- Max 4KB random write
- 2,600,000 IOPS
Performance
- Read speed
- 14,800 MB/s
- Write speed
- 13,400 MB/s
- TBW
- 2,400 TB
Dimensions and weight
- Width
- 80.15 mm
- Height
- 25 mm
- Length
- 8.88 mm
- Weight
- 30 g
Packaging info
- Packaging size
- 169 x 101 x 25 mm
- Packaging weight
- 74 g
