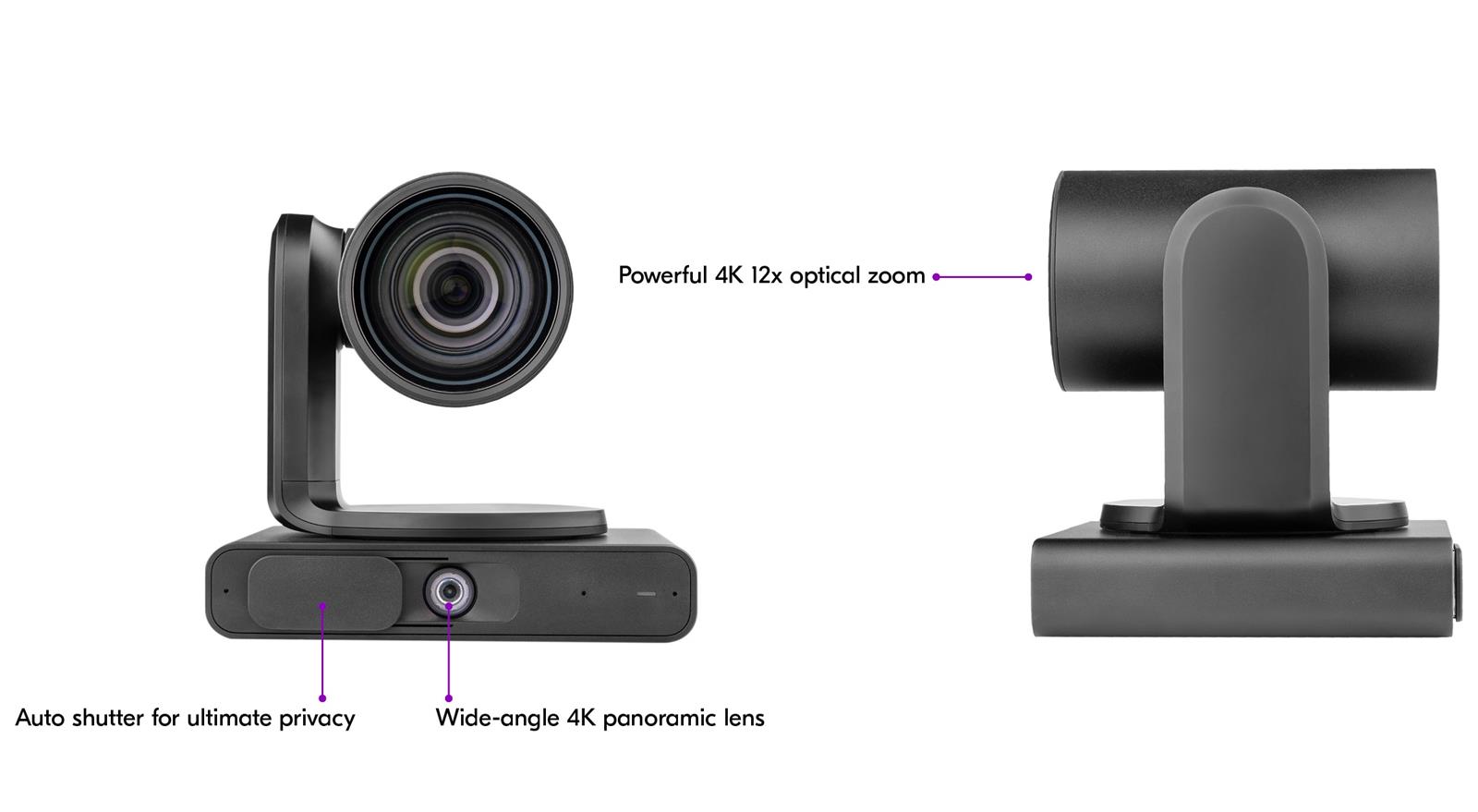

The KAC−CAM−70 is a Microsoft certified cutting−edge dual 4K lens PTZ video camera for medium to large meeting spaces.
Featuring a 12x optical zoom close−up lens, a second wide angle 119º DFOV panoramic lens, and an integrated microphone array for direction assistance, the KAC−CAM−70 ensures an exceptional video experience for all participants. Its advanced AI−driven features, including auto−framing, speaker tracking, and advanced smart gallery, ensure that remote participants can clearly see the full expressions of everyone in the conference room, even those seated at a distance.
What sets the KAC−CAM−70 apart is its superior wide−angle sensor, which, when paired with our KAC−CU−200 MTR system, it provides a complete room view alongside a focused PTZ stream. Both video feeds are efficiently managed by the KAC−CU−200, ensuring seamless coverage for an exceptional meeting experience.
Designed to complement Kramer’s solution bundles for medium−large Microsoft Teams Rooms, the KAC−CAM−70 plays a pivotal role in creating a highly optimized environment for hybrid Teams meetings.
- Enhance your meetings with advanced AI–powered features for a dynamic and engaging experience.
- Perfect for hybrid sessions, ensuring every participant is clearly seen and heard, no matter their location.
- Integrates seamlessly with Kramer AudioCodes MTR systems for a smooth and efficient hybrid video conferencing experience.
- Effortless installation and operation using the KAC–TCH–10 room controller.
General
- Camera type
- PTZ camera
- Color
- Black
- Certifications
- Microsoft Teams, USB BYOD
Image specification
- Max Resolution (Out)
- 3840x2160 Dual 4K Lens: Two 4K sensors for complete room coverage
- Optical zoom
- 12 x
- Digital zoom
- 16 x
- Field of view (horizontal)
- 80 ° for PTZ camera, 107° for 2:nd (room camera)
- Signal-to-noise ratio
- 55 dB
- Min. illumination
- 0.5 Lux @ (F1.8, AGC ON)
Functions
- Programmable presets
- Yes
- Pan movement +/-
- 170 °
- Tilt movement up
- 90 °
- Tilt movement down
- 90 °
- Auto framing/tracking
- Yes Presenter Tracking, Auto Framing, Smart Gallery (max 8 persons), Speaker tracking, Multi Stream
Audio specification
- Built-in microphone
- Yes 3x built-in microphones, 180° pickup angle
- Built-in speaker
- No
- External speaker
- No
Connections
- Video out
- USB-C, USB-C
- USB standard
- 3.0
- Audio inputs
- 3,5mm tele
Energy
- Power Supply
- External Power Supply. Power Adapter Input voltage : DC 12V or PoE+ (802.3at)
Dimensions and weight
- Width
- 181 mm
- Depth
- 178.4 mm
- Height
- 151.5 mm
- Net weight
- 2.3 kg
Additional information
- Included Accessories
- USB cable (A–C) 2m, wall mount bracket, power adaptor, remote control, Ethernet cable
- Warranty
- 1 years
Packaging info
- Packaging size
- 550 x 165 x 157 mm
- Packaging weight
- 4.00 kg
