Model name EDH-WHI-SDRY-M1
Colour White
Rated power per heating element 45 - 55 Watt
Nominal voltage/frequency 230 Volt / 50 Hz

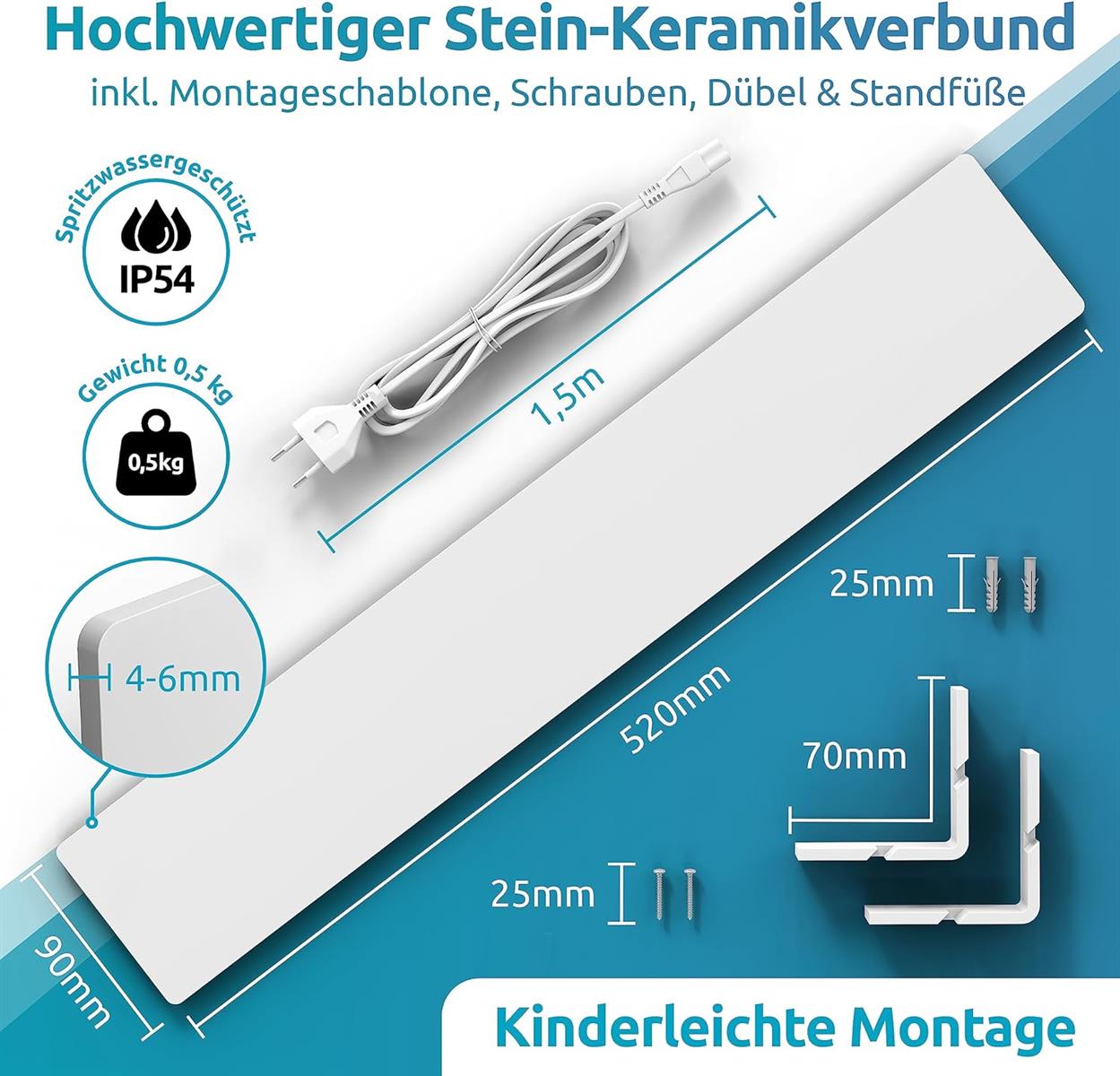

Dimensions L x W x H = 520 x 90 x 18 mm
Weight per heating element: 820 g per Packing Unit: 1.560 g
Surface temperature 65 - 75 °C
Control None for direct connection, optional timer
Protection class Heating element: IP 54 (protected against dust and spray water)
Plug connections: IP 50 (dust and contact protection)
Power connection
Cable
Length: 145 cm/cross-section: 2 x 0.75 mm
UK plug type G to IEC plug C7
Surface High-quality, mechanically resistant ceramic composite
heating plate with ideal radiation properties. Washable
Rear side Temperature-resistant lacquer, solvent-free, resistant to conventional
solvent-free and acid-free household cleaners up to 5 % alcohol content
Heating element Composite layer of nanomaterial and silver
Electrical load capacity Up to 5 SDRY heating elements per connection cable
Mechanical load capacity Avoid mechanical loads
Suspension/mounting Included in the scope of delivery: Dowels and screws (Torx),
Feet are included for alternative installation
