C2G Superbooster USB Extenders deliver reliable USB signal transmission for USB devices, allowing devices such as cameras, interactive whiteboards and printers to be placed at greater distances from the host computer.
What's more, the C2G Superbooster USB Camera Extender has been tested to be compatible with industry-leading video conferencing cameras. Not only does this testing ensure reliability and deployment confidence for AV integrators, it saves valuable time as well.
This camera extender is designed with chipset technology that offers a higher compatibility rate than other USB extenders on the market. The C2G Superbooster USB Camera Extender has been tested and proven by C2G to support leading PTZ cameras at 1080p or 4K resolutions depending on the camera.
This Superbooster USB Camera Extender provides reliable USB data extension from a computer to a USB camera up to 150 feet (45.7m) over a standard Cat6 network cable – making it an ideal solution for conference rooms, command centers, classrooms, auditoriums and medical facilities.

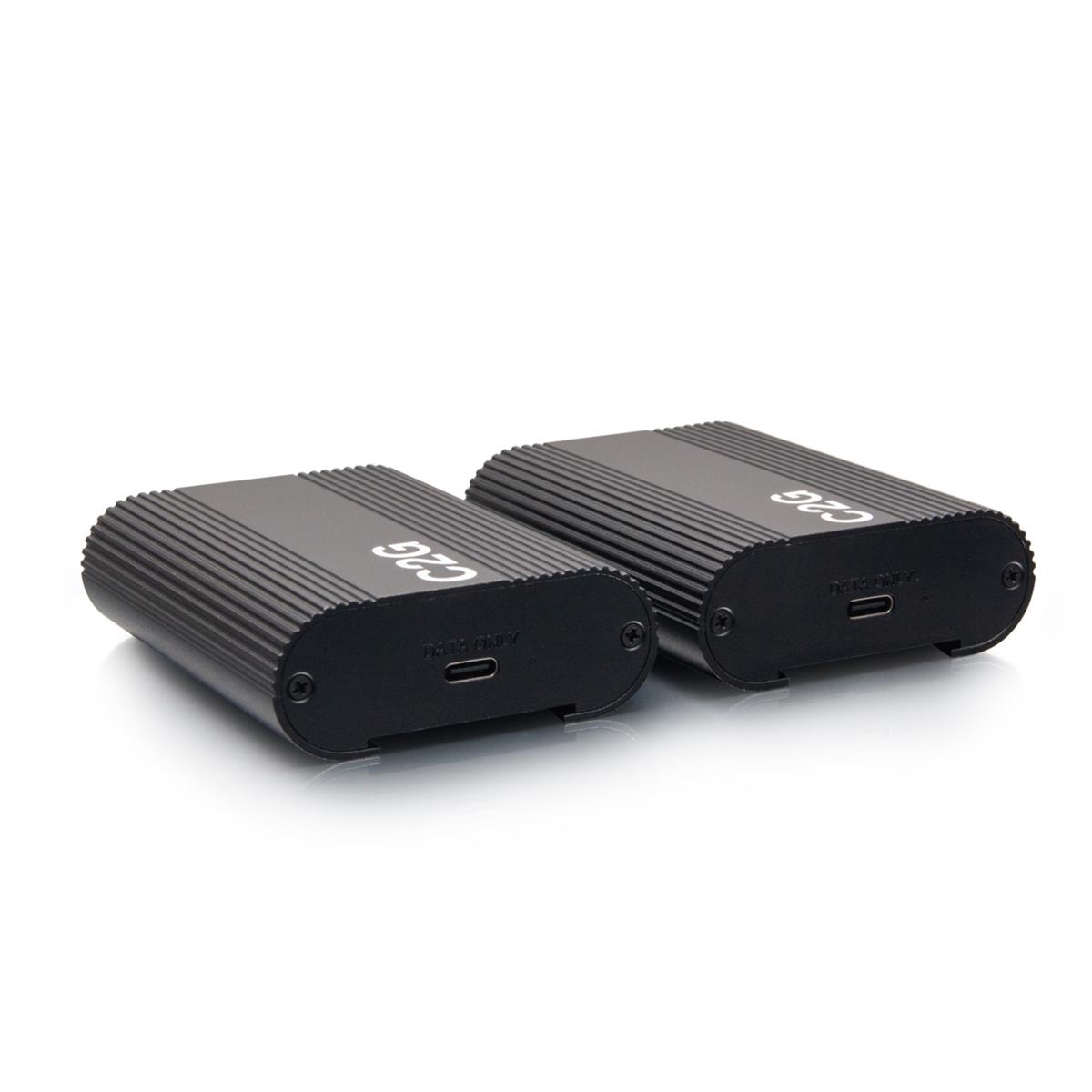

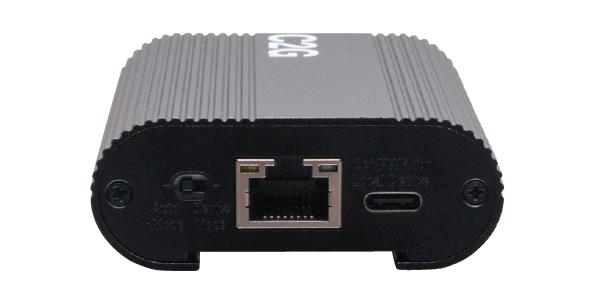

This plug-and-play solution consists of one box transmitter and one box receiver.
Features:
- Tested and proven to support leading PTZ cameras
- Extends a USB camera up to 150ft (45.7m) over Cat6
- Lower power consumption—typically 0.5W
- Bi-directional data and power transfer—simplifies installation by allowing the same module to be used as either a transmitter or receiver
- As easy to use as a passive cable. Plug and play with no software or drivers required
- Up to 1.5A power delivery from host to device
- Optional external power to support high-current devices (up to 3A)
- Supports a dual-mode USB-C device when explicit device mode is selected
- Compatible with USB 2.0. Compatible to USB 1.1 if a USB 2.0 hub is used on the device end
- Occupies no tier of the USB host/device hierarchy
- Mounting brackets included for both devices
- Backed by a 5-year warranty
General
- Extender type
- Transmitter & reciever kit
- Technology
- TP/CAT
- Range (max)
- 45.7 m over Cat6
Features
- USB standard
- 1.1 Compatible to USB 1.1 if a USB 2.0 hub is used on the device end
- USB standard
- 2.0
- Data transfer speed
- 480 Mbit/s Supports 1080p or 4K resolutions from computer to USB camera. Does not support video via DP-Alt mode.
- USB/Data connection from
- USB-C
- USB/Data connection to
- USB-C
Energy
- Power Supply
- USB Optional external power to support local devices (up to 3A)
Measurements and weight
- Width
- 121 mm
- Depth
- 62.95 mm
- Height
- 24 mm
Additional information
- Included Accessories
- 1x transmitter, 1x reciever
- Warranty
- 5 years
Packaging info
- Packaging size
- 162 x 131 x 55 mm
- Packaging weight
- 276 g
