The PXO-line of compact power distribution units (PDUs) provides intelligence, visibility, and control to location that are not readily available by IT an AV personnel.

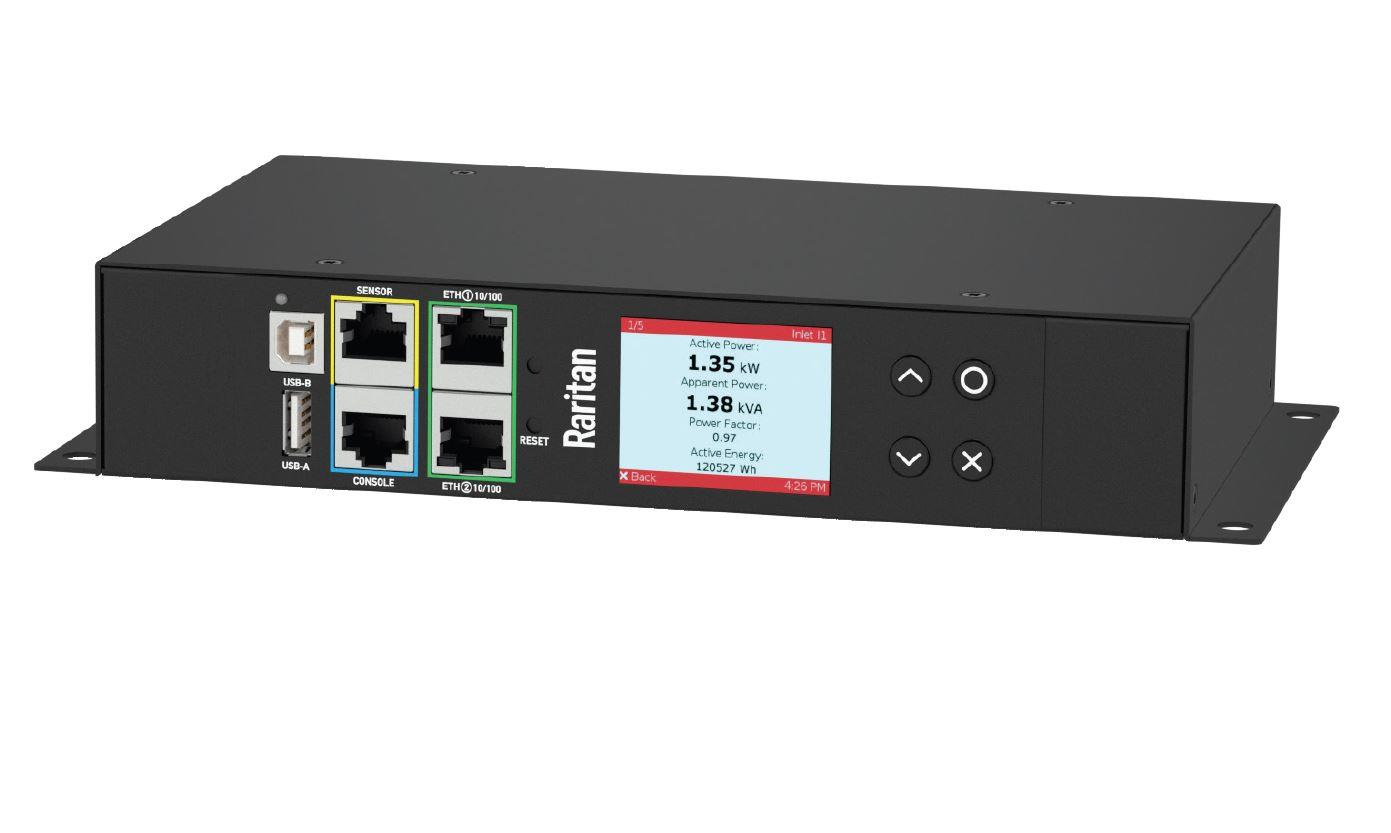

The PXO’s slim and space-saving chassis design allows the device to be mounted almost anywhere, like under a meeting room table, behind a wall-mounted monitor or TV, at POS stations, by industrial devices, in education, in AV racks and much more. The network-enabled controller allows the unit to be monitored and controlled from anywhere in the world, 24/7, making it a perfect application for powering IT and AV systems.

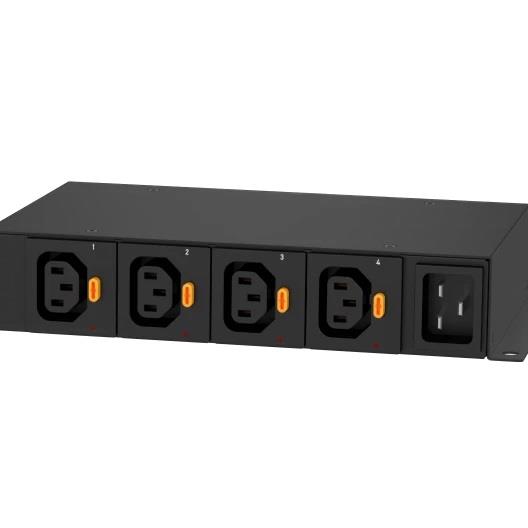

- 4 x IEC outlet, making it the perfect solution for international roll-outs
- Remotely switchable outlets allow for power to be cycled on/off to a specific outlet
- The slim form factor is perfect for local AV and IT applications such as meeting room/desks, classrooms and installation behind displays
- Includes 1 x IEC extension cable (3 meters)
- Local outlet power cables not included
Remote Power Cycling to Outlets
Remotely switchable outlets allow for power to be cycled on/off to a specific outlet, reducing operating expenses by not having to send IT personnel to reboot equipment and reducing energy usage by switching off equipment when people have vacated a building.
Compact Power Distribution
The slim form factor is perfect for local AV and IT applications such as conference rooms, board rooms, offices, retail POS, education, AV racks and hospitals.
Connection
- Power connection from
- IEC C20 1x
- Power connection to
- IEC C13 (Appliance) 4x
- No. of sockets
- 4 x
Measurements and weight
- Width
- 220 mm
- Depth
- 133 mm
- Height
- 44 mm
Electric specifications
- Voltage
- 240 Volt 200-240V
- Current rating
- 16 Ampere
- Maximum Power
- 3,800 W 3200-3800W
Additional information
- Warranty
- 2 years
Packaging info
- Packaging size
- 390 x 210 x 110 mm
- Packaging weight
- 2.20 kg
