Premium super-size images with rich colours, even in bright environments
The latest generation of Crystal LED premium displays from Sony makes the appeal of super-size LED video walls even more accessible.

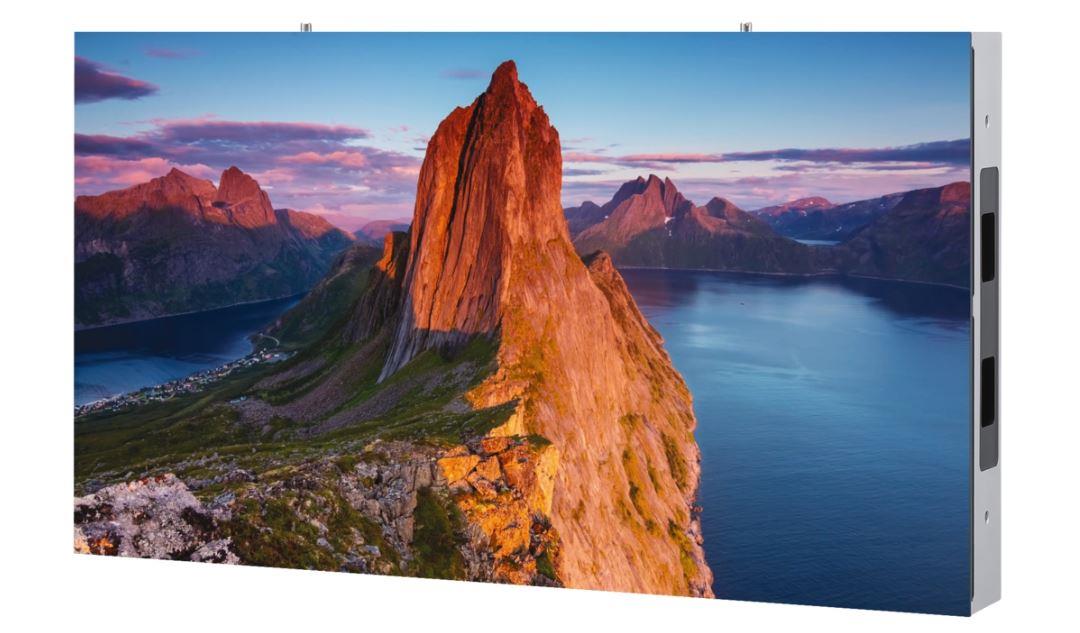

The ZRD-BH15D delivers spectacularly bright, richly coloured images in a wide range of environments – including corporate lobbies, entrances, boardrooms and retail showrooms – even in brightly-lit spaces.
Crystal LED fills the room with a spectacular 1,700 cd/m2 of brightness, more than double that of other high-end LED displays. A specially developed anti-reflection coating on the display panel that prevents ambient light bounce-back under harsh illumination or sunlight. It all adds up to a phenomenal viewing experience that your audience won’t forget.
Advanced 4K 120Hz driver technology is augmented by real-time image enhancement features powered by Sony’s X1 for Crystal LED picture processor. Every video frame is individually analysed and optimised, ensuring content looks crisp and super-smooth, even if it wasn’t originally shot for large-scale display.

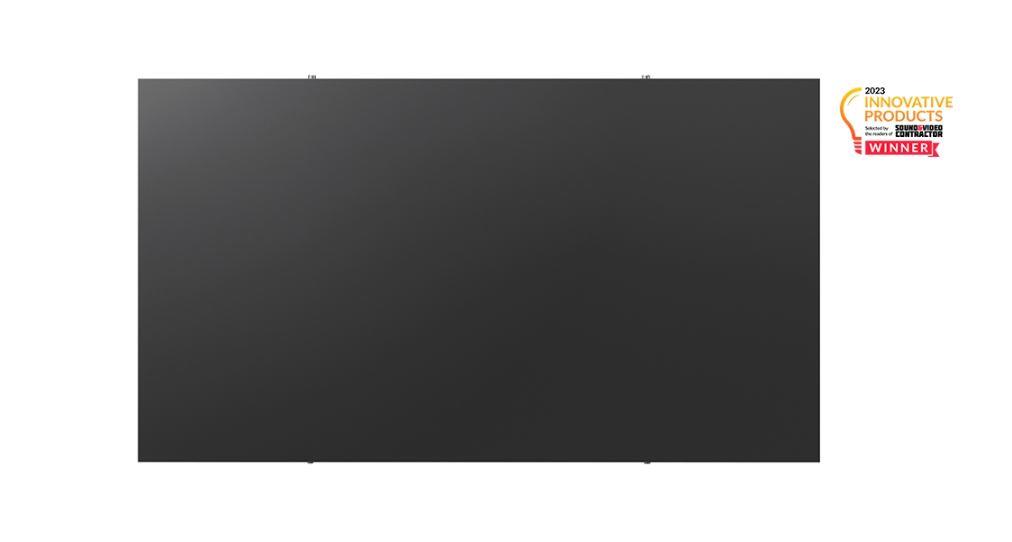

The borderless design of each energy-efficient Crystal LED panel allows multiple ZRD-BH15D cabinets to be tiled seamlessly, creating super-size high resolution displays with virtually any dimensions or aspect ratio – and no bezels or visible gaps. Crystal LED also offers simplified integration compared with previous-generation systems, with slim, light panels that are easy to install and maintain without requiring special skills or complex equipment.
Display
- Display Resolution
- 384 x 216
- Pixel pitch
- 1.59 mm
- Brightness (Max)
- 1,700 Nits
- Viewing angle
- 170 °
LED Module/Cabinet
- Cabinet Resolution
- 384 x 216
Connectivity
- Video in
- IP stream (RJ-45)
- Video out
- IP stream (RJ-45)
Energy
- Power Supply
- AC 100 - 240 V, 50 / 60 Hz
- Consumption Max/m2
- 574 W
- Consumption Max tot.
- 120 W
Dimensions and weight
- Width
- 610 mm
- Height
- 343 mm
- Depth
- 69 mm
- Net weight
- 8.6 kg
Additional information
- Operating Temperature min
- 0 Celsius
- Operating Temperature max
- 45 Celsius
